121

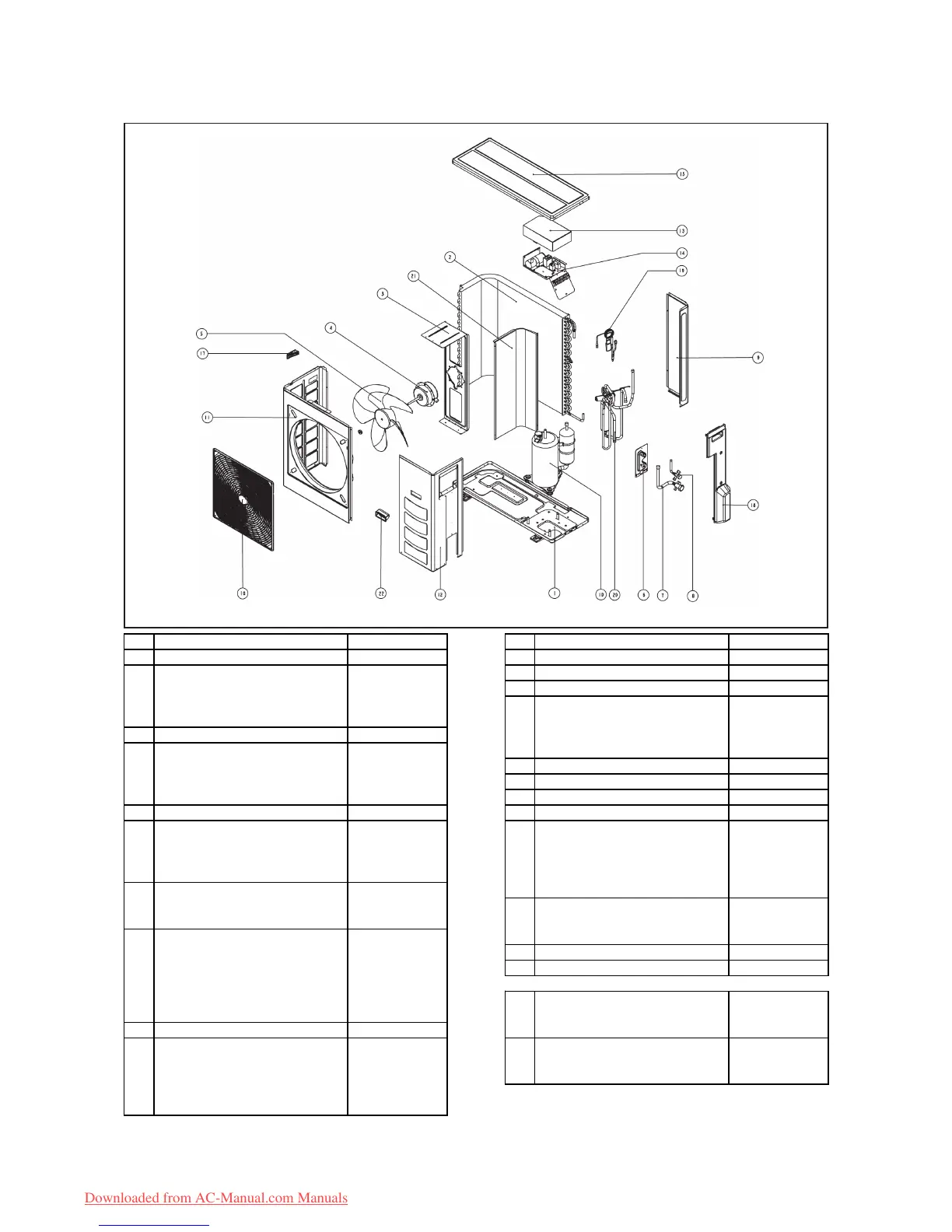

MODEL: ALC / A5LC 25 / 28CR
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
No Description Part No No Description Part No
1 Assy. Base Pan R50014073884 11 Front Panel, Left R01014070947
2 Assy. Outdoor Coil 12 Service Panel R01014070949
ALC 25CR R50024088731 13 Terminal Cover Panel R01014070838
A5LC 25/28CR R50024075147 14 Assy. Control Panel
ALC 28CR A50024082133 ALC / A5LC 25CR R50044086136
3 Motor Bracket R01014070948 ALC 28CR R50044086139
4 Fan Motor A5LC 28CR R50044086140
ALC 25CR R03039028207 15 Top Panel R01014070596
A5LC 25CR R03039023391 16 Assy. Front Grille R50124072880
ALC / A5LC 28CR R03039024538 17 Plastic Handle, Side R12014057948
5 Fan Blade R03019023393 18 Assy. Valve Cover R50124073905
6 Valve Bracket 19 Assy.Cap Tube
ALC 25/28CR A50014073890 ALC 25CR R50024088789
A5LC 25CR R50014078321 A5LC 25CR R50024081899
A5LC 28CR R50014080371 ALC 28CR A50024080186
7 Assy. Flare Valve 3 Ways 5/8" A5LC 28CR R50024080312
ALC 25/28CR R50054072863 20 Assy. 4 Way Valve
A5LC 25/28CR R50059023336 ALC 25/28CR R50054077222
8 ALC 25/28CR A5LC 25/28CR R50059024520
Assy. Flare Valve 3 Ways 3/8" R50059022577 21 Partition R01014070951
A5LC 25CR 22 Plastic Handle, Front R12014070955
Assy. Flare Valve 2 Ways 1/4" R50059023334 Parts Not in Diagram
A5LC 28CR Capacitor, Fan Motor
Assy. Flare Valve 3 Ways 3/8" R50059024820 ALC /A5LC 25CR R04029026759
9 Back Panel, Right R01014070950 ALC /A5LC 28CR R04029026966
10 Compressor Capacitor, Compressor
ALC 25CR A04019027570 ALC /A5LC 25CR, ALC 28CR R04029026779
A5LC 25CR R04019021361 A5LC 28CR R04029026778
ALC 28CR R04019012828
A5LC 28CR R04019020449
