MODEL: ALC 30C/CR, A5LC 35 C/CR
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

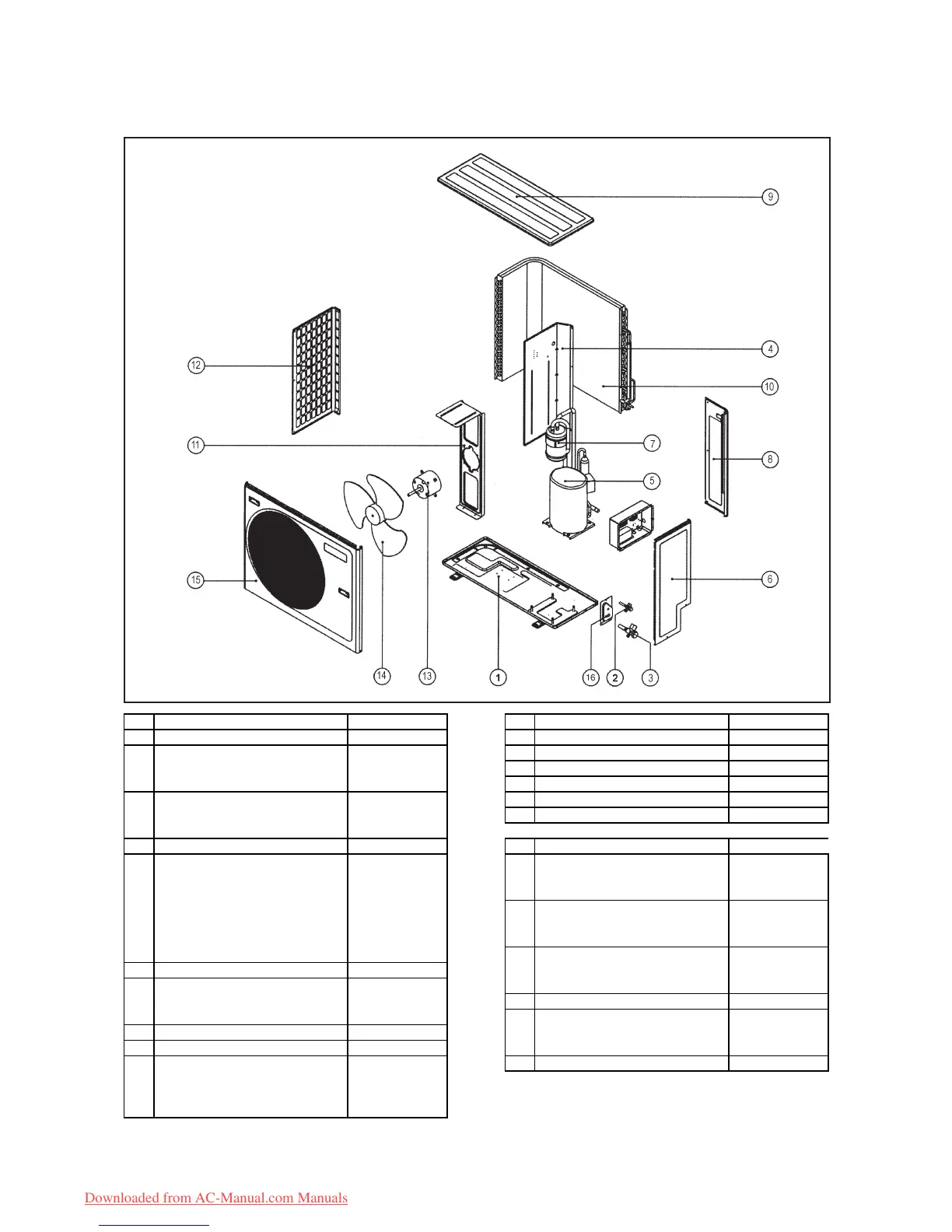

No Description Part No No Description Part No
1 Assy. Base Pan R50014053238 11 Bracket, Fan Motor R01014053232
2 Assy. Flare Valve 3/8" 12 Side Panel, Left R01010029899
ALC 30C/CR R50059000221 13 Fan Motor R03039004046
A5LC 35C/CR R50059017536 14 Fan Blade R03013028160
3 Assy. Flare Valve 5/8" 15 Assy. Front Panel R50014053236
ALC 30C/CR R50059000071 16 Plate, Flare Vlave R01013034235
A5LC 35C/CR R50059020805 Parts Not in Diagram
4 Panel, Partition R50014053277 Phase Sequencer R04089017029
5 Compressor High Pressure Switch
ALC 30C/CR ALC 30C/CR R04109015136
220-240V/1PH/50Hz R50049013221 A5LC 35C/CR R04104061879
380-415V/3PH/50Hz R50049019889 Low Pressure Switch
A5LC 35C/CR ALC 30C R04109015125
220-240V/1PH/50Hz R50049025547 A5LC 35C/CR R04109015400
380-415V/3PH/50Hz R50049025336 Assy. 4 Way Valve
6 Service Panel R01010029898 ALC 30CR R05029001991
7 Accumulator A5LC 35CR R50024087051
ALC 30C/CR R02119025988 Capacitor, Fan Motor R04029026761
A5LC 35C/CR R02119024262 Capacitor, Compressor
8 Back Panel, Right R01014053233 ALC 30C/CR R04029026779
9 Top Panel R01011029900 A5LC 35C R04029026782
10 Assy. Coil TXV R05019020252
ALC 30C A50024041851
ALC 30CR A50024035282
A5LC 35C/CR R50024082878
