21
1.

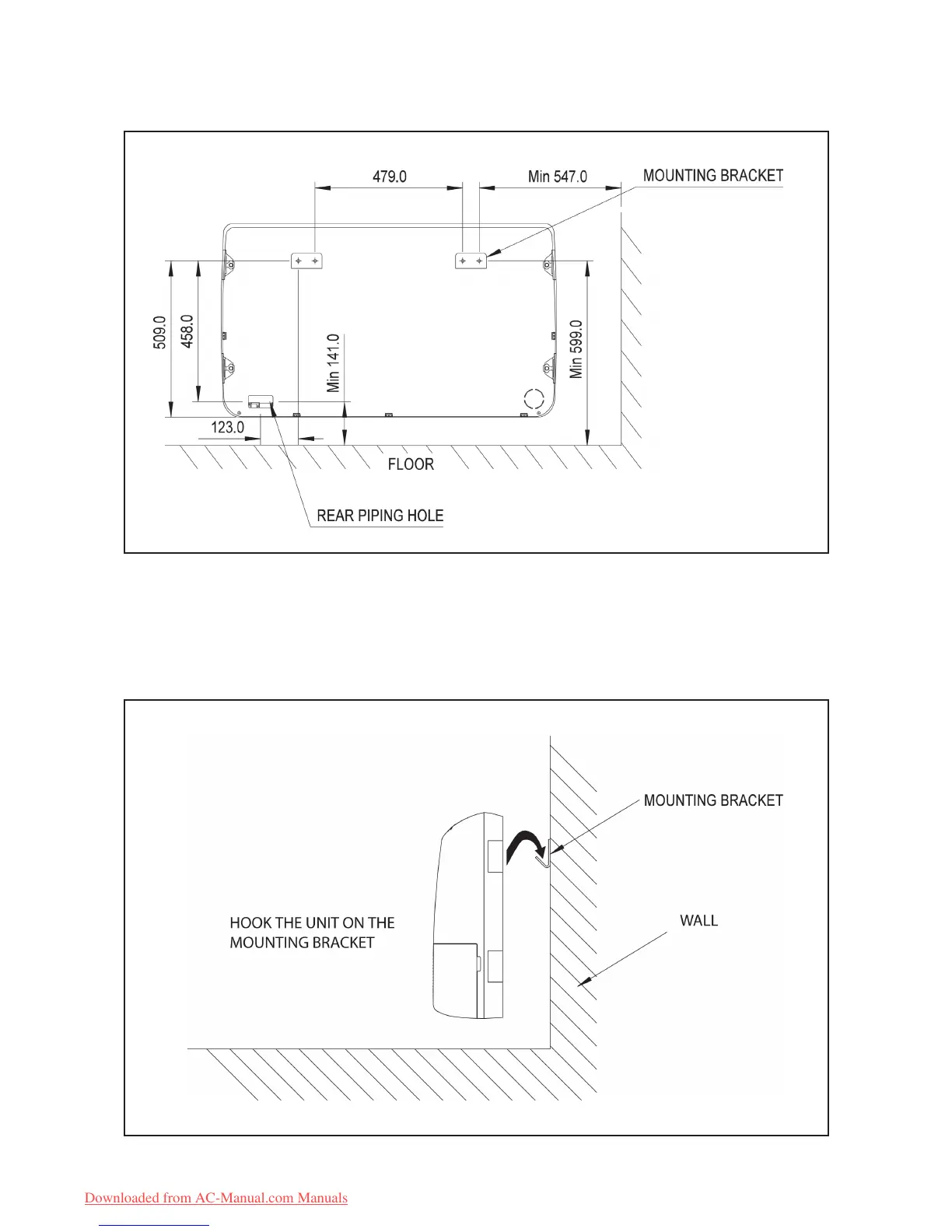

Refer to the dimension as illustrated when installing the mounting bracket.
2.
Determine the pipe hose position using the rear piping hole. Drill the pipe hole at the slight downward slant
to the outdoor side.
Floor st
anding installation
Downloaded from AC-Manual.com Manuals
22
24
Table of Contents
Default Chapter
2
Table of Contents
2
1 Nomeneclature
3
Controller Specifications
3
2 Product Line-Up
5
3 Features
8
Wireless Remote Controller
8
Self Diagnosis
8
4 Application Information
9
Operating Range
9
Refrigerant Circuit Diagrams
10
Controllers
16
Temperature Setting
16
Turbo Mode
16
Installation
20
Floor Standing Type
21
Electrical Connections
29
General Precautions
29
5 Engineering and Physical Data
33
General Data
33
Components Data
47
Safety Devices
61
6 Performance Data
65
Performance Tables
69
Cooling Only
70
Cooling Mode
72
Heating Mode
72
7 Dimensional Data
89
8 Electrical Data
91
9 Wiring Diagrams
99
10 Servicing and Maintenance
110
11 Troubleshooting
112
12 Exploded View & Parts List
117
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Acson ACM 15 E and is the answer not in the manual?
Ask a question
Acson ACM 15 E Specifications
General
Brand
Acson
Model
ACM 15 E
Category
Air Conditioner
Language
English
Related product manuals
Acson IM-CKA-0501-ACSON
22 pages
Acson OM-G12-0104-Acson
24 pages
Acson AWM
90 pages
Acson AMDS
90 pages
Acson A5LC
90 pages
Acson awm10f
108 pages
Acson awm07f
165 pages
Acson AWM301
165 pages
Acson AWM301R
165 pages
Acson A5CK20A
21 pages
Acson A5WM15J
99 pages
Acson AWM 301
