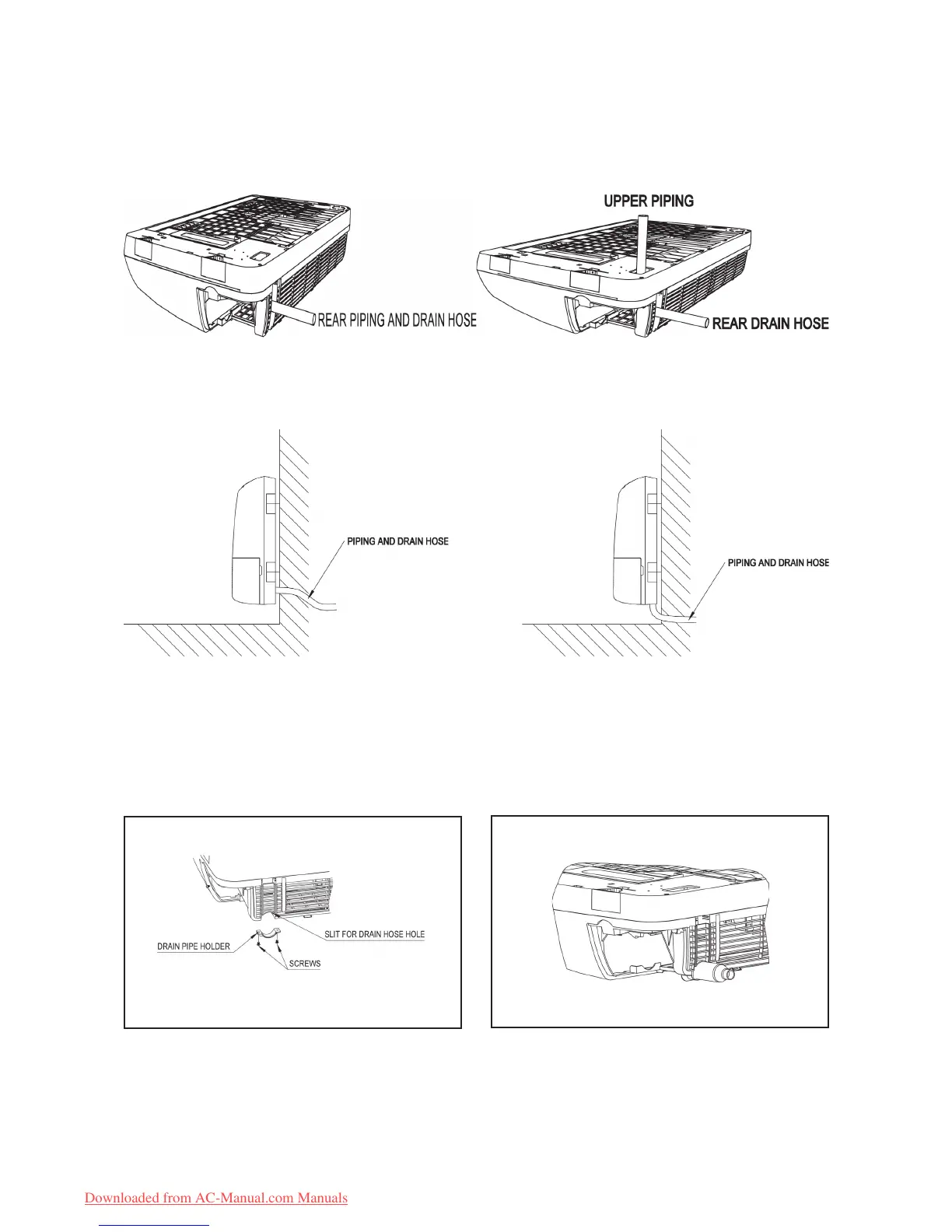

Piping and Drain Hose Installation
Under Ceiling Type
1. The piping direction can be 2 ways as illustrated.
2. The drain hose is only 1 way.
Floor standing type
How to Install the Drain Hose
1. Remove the 2 screws and the drain pipe holder.
2. Cut a slit for the drain hose hole.
3. Place the drain hose on the v-shape area and secure it with drain pipe holder and 2 screws.
OR
OR
