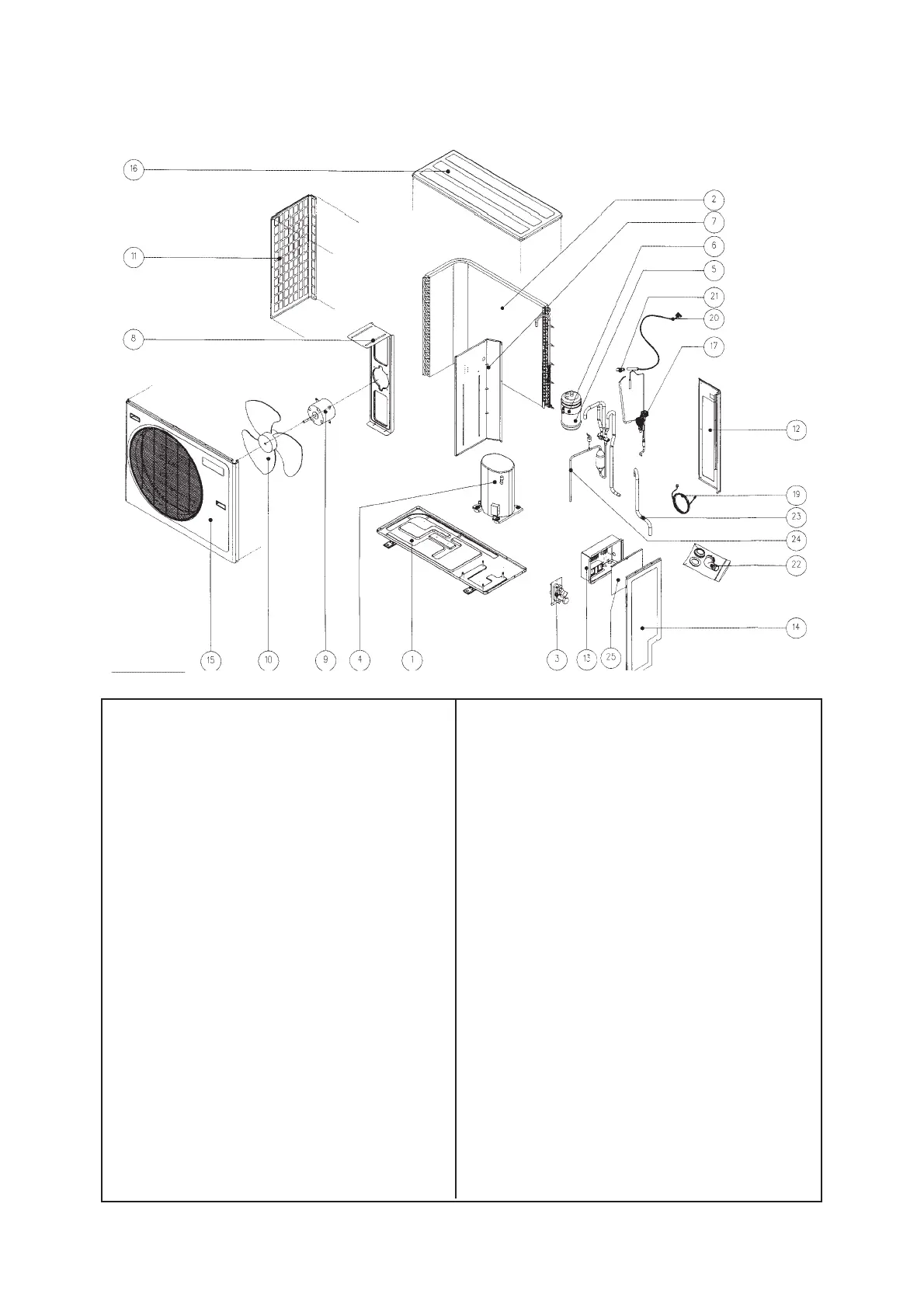

MODEL: ALC / A4LC 30CR
1. ASSY., BASE PAN 14. PANEL, SERVICE
2. ASSY., COIL 15. ASSY., FRONT PANEL
3. ASSY., VAVLE PLATE 16. PANEL, TOP
4. ASSY., COMPRESSOR 17. ASSY., TXV
5. ACCUMULATOR 18. COVER TERMINAL BOARD
6. ASSY., ACCUMULATOR CLIP 19. WIRE, EXT. (8m)
7. ASSY., PARTITION 20. DEFROST THERMISTOR
8. BRACKET, MOTOR 21. CLIP, COIL SENSOR
9. MOTOR 22. ASSY., DRAIN ELBOW PACKAGE
10. FAN, 24" 23. TUBE, COMP. SUCTION
11. PANEL, SIDE LEFT 24. ASSY., 4 WAYS VALVE
12. PANEL, BACK RIGHT 25. COVER, TERMINAL BOARD
13. ASSY., TERMINAL BOARD
