7) INST
ALLA
TION OF SEP
ARA
TE ORIFICE KIT
A
T OUTDOOR
i) Out
door Unit Installation Sp
ace Is Wide Enough
S
teps:

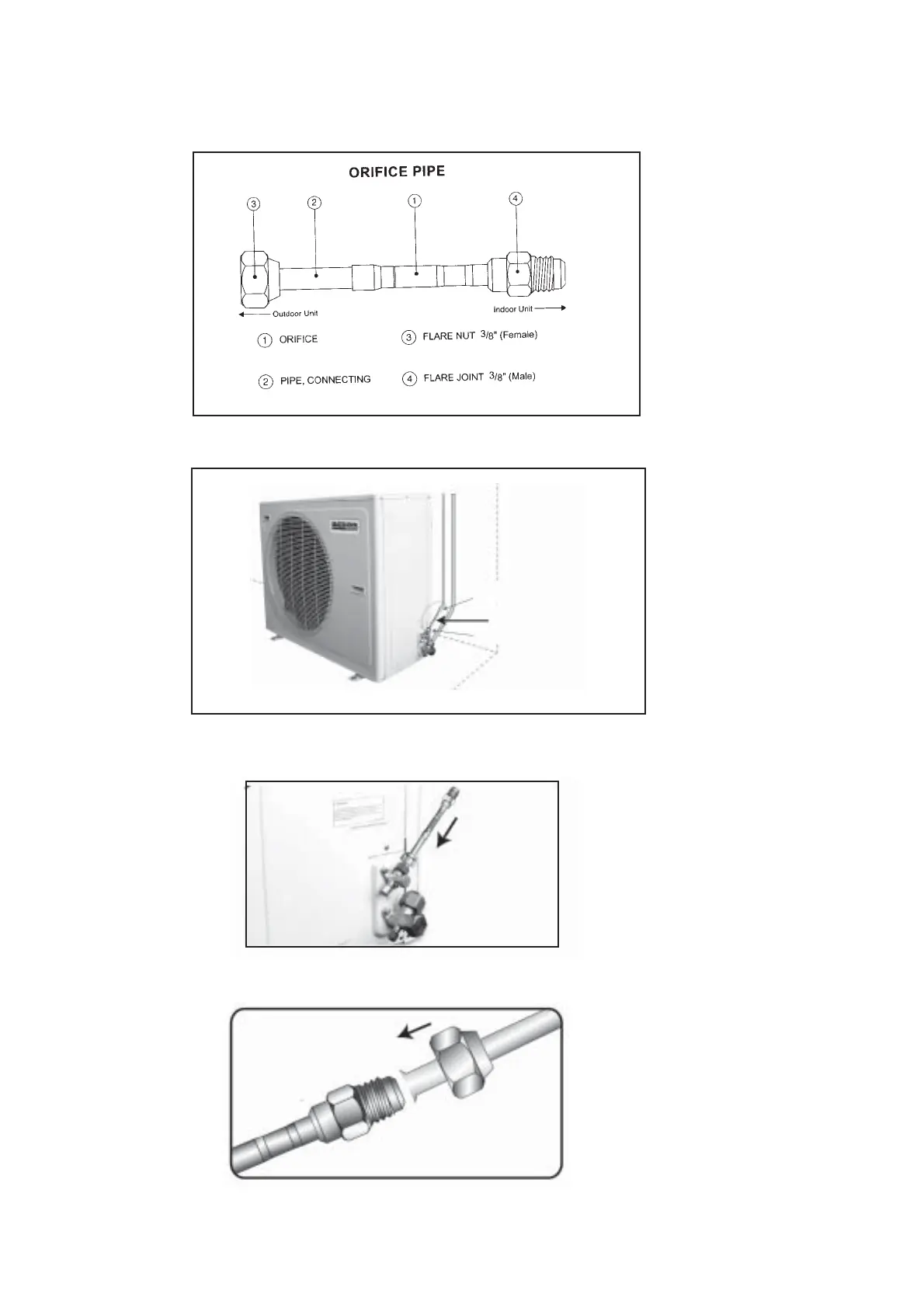

a) Directly conncet the “Female” nut of orifice pipe to the liquid pipe.
b) Flare the liquid pipe and connect it to the “Male” joint of the orifice pipe.
7
9
OFIFICE PIPE
STEP 1
STEP 2
Orifice Pipe
Liquid Pipe
