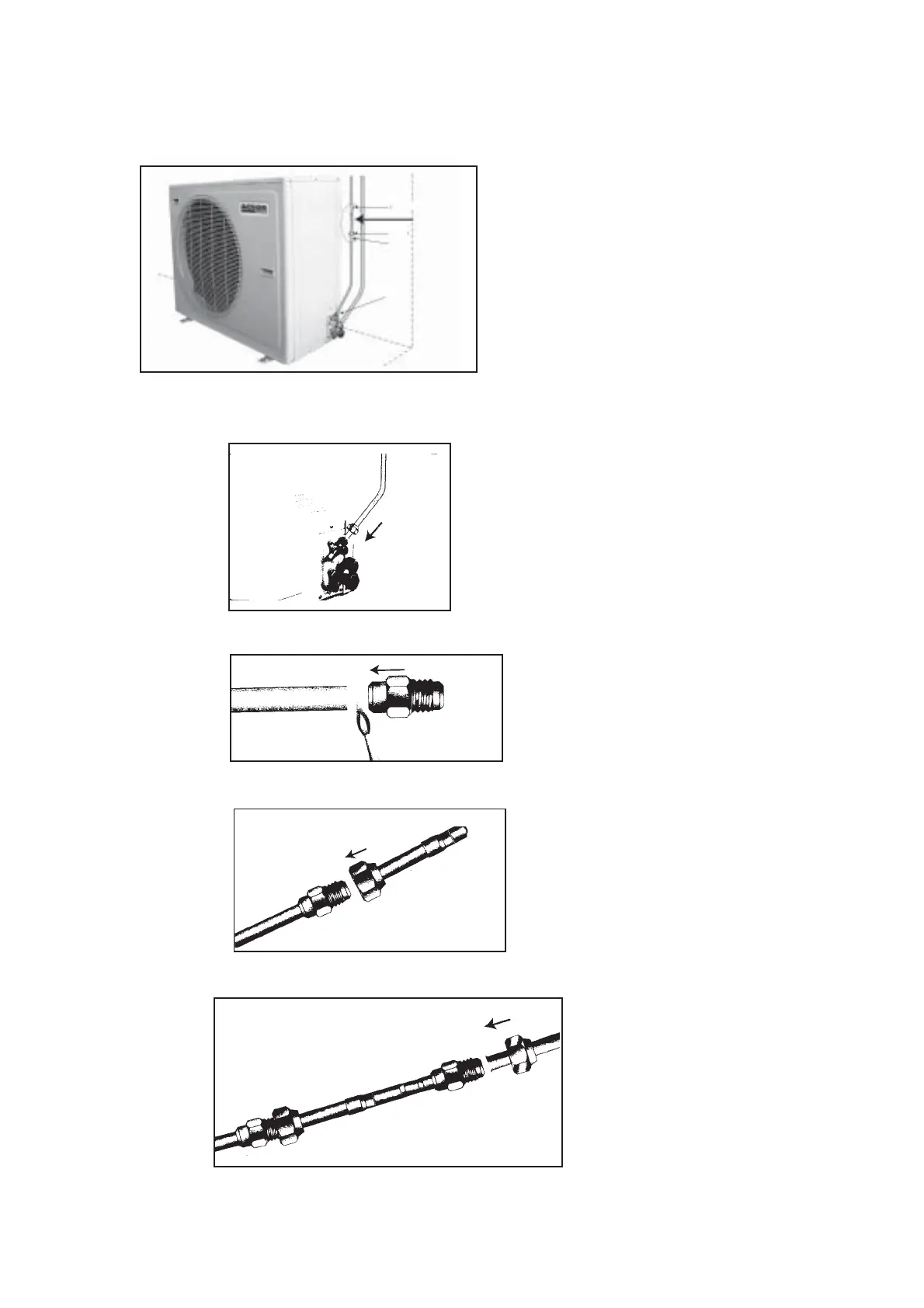

ii) Outdoor Installation Space Is Limited

If the orifice pipe cannot be connected

directly to the liquid valve due to limitation

space, it can be connected between the liquid

pipes.

Steps :

a) Flare the liquid pipe and connect it to the liquid valve.

b) Braze an addition “Male” joint to the liquid pipe.

c) Connect the “Female” nut of the orifice pipe to the “Male” joint.

d) Flare another liquid pipe and connect it to the “Male” joint of the orifice pipe.

Step 1

Step 2

Step 3

Step 4

Orifice Pipe

Liquid Pipe

Orifice Pipe

Liquid Pipe
