Application Information A5LCY-E-2010
Remove pipe port cover here for left-bottom piping.
Remove pipe
port cover
here for left-
side piping.
Left-bottom piping
Left-side
piping
Left-back
piping

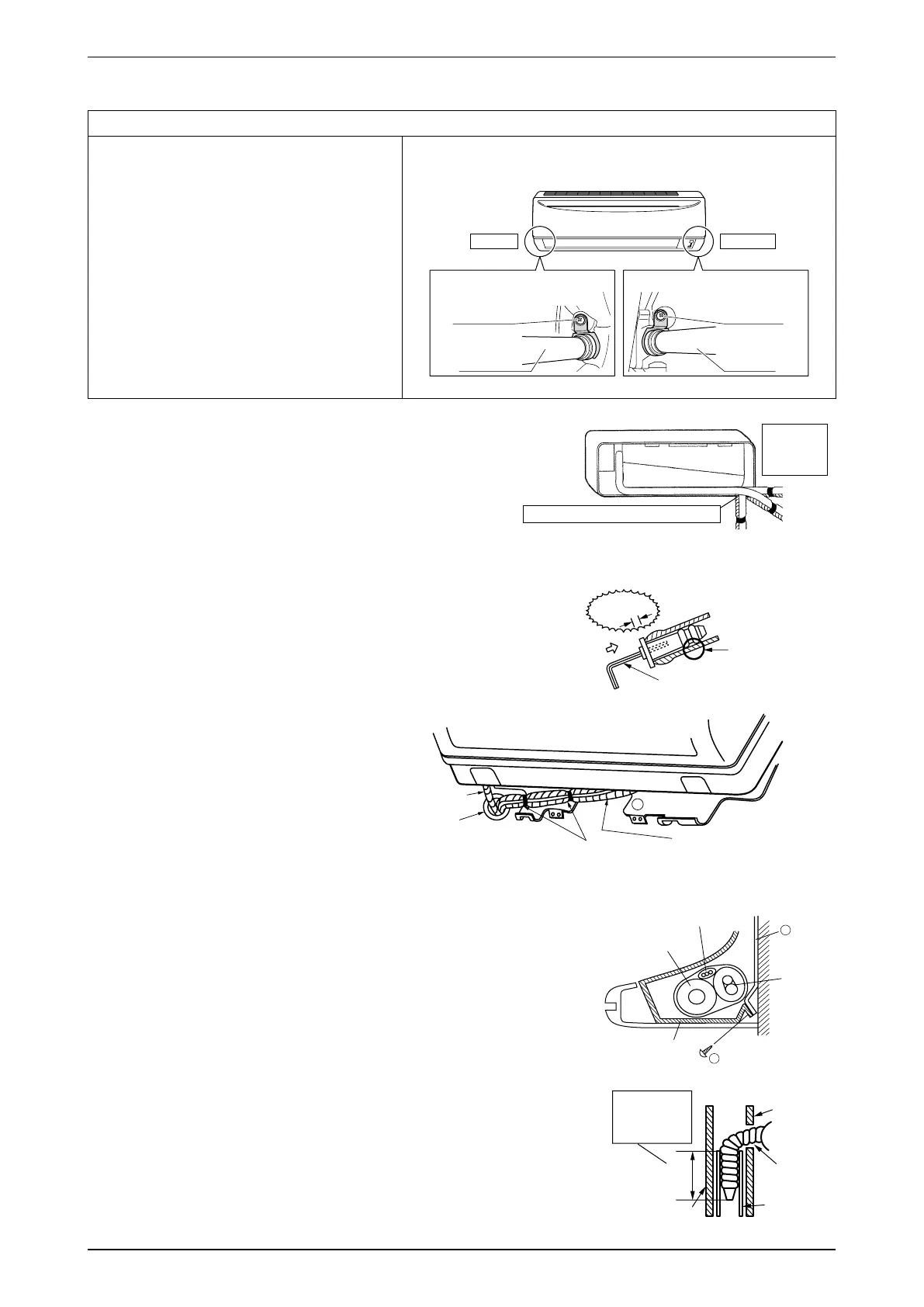

3-2. Left-side, left-back, or left-bottom piping
How to replace the drain plug and drain hose
• Replacing onto the left side
1) Remove the insulation fi xing screw on the
right and remove the drain hose.
2) Remove the drain plug on the left side
and attach it to the right side.
3) Insert the drain hose and tighten with
included insulation fi xing screw.
* (Forgetting to tighten this may cause water
leakages.)
Drain hose attachment position
* The drain hose is on the back of the unit.
Front side of unit
Attachment on the right side (factory default)
Attachment on the left side
esohniarDesohniarD
Insulation
fixing screw
Right sideLeft side
Insulation
fixing screw
1) Attach the drain hose to the underside of the refrigerant pipes
with adhesive vinyl tape.
2) Be sure to connect the drain hose to the drain port in place of a
drain plug.
3) Shape the refrigerant pipe along the pipe
path marking on the mounting plate.
4) Pass drain hose and refrigerant pipes
through the wall hole, then set the indoor
unit on mounting plate hooks, using the
markings at the top of indoor unit as a
guide.
5) Pull in the inter-unit wiring.
6) Connect the inter-unit piping.
7) Wrap the refrigerant pipes and drain hose together with insulation tape
as right fi gure, in case of setting the drain hose through the back of the
indoor unit.
8) While exercising care so that the inter-unit wiring do not catch indoor
unit, press the bottom edge of indoor unit with both hands until it is
fi rmly caught by the mounting plate hooks. Secure indoor unit to the
mounting plate with indoor unit fi xing screws (M4 × 12L).
3-3.Wall embedded piping
Follow the instructions given under left-side, left-back, or left-bottom
piping.
1) Insert the drain hose to this depth so it won’t be pulled out of the
drain pipe.
How to set drain plug.
No gap.
Do not apply lubricating
oil (refrigeration oil)
when inserting.
Application of causes
deterioration and drain
leakage of the plug.
Insert a hexagonal wrench (4mm).
Drain
hose
Caulk this hole
with putty or
caulking material.
Bind with vinyl
tape.
A
Mounting plate
Wrap insulating tape around the
bent portion of refrigerant pipe.
Overlap at least half the width of
the tape with each turn.
Refrigerant
pipes
Drain hose
Bottom frame
H Indoor unit fixing screw
M4 12L (2 point)
Mounting
plate
A
Inter-unit wiring
Inner wall
Vinyl chloride
drain pipe
(VP-30)
Drain hose50mm
or more
Insert drain hose
to this depth so
it won’t be pulled
out of drain pipe.
Outer wall
