Acson E Series - Page 17

14
A5LCY-E-2010 Application Information

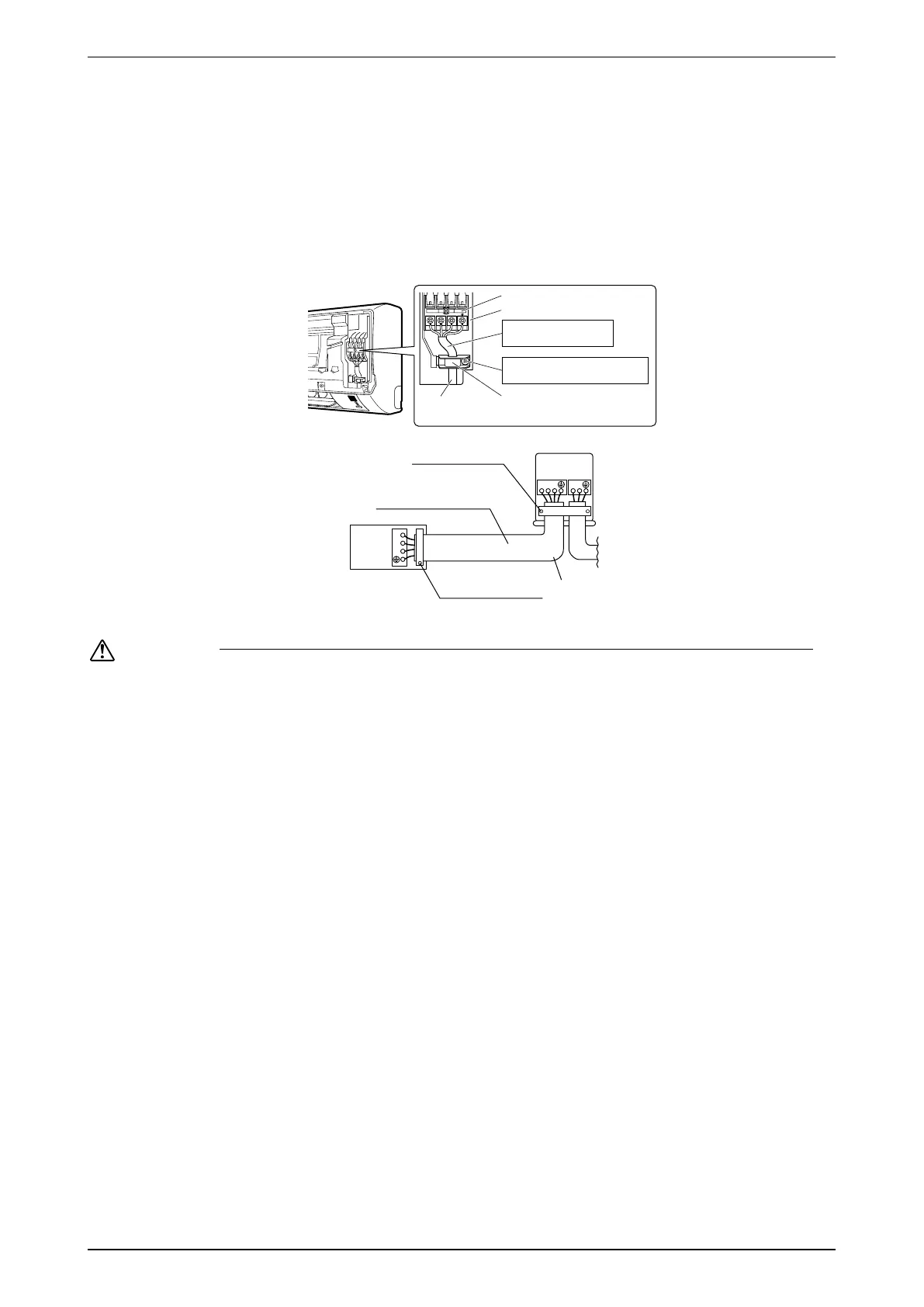

4. Wiring
1) STRIP WIRE ENDS (15MM).
2) MATCH WIRE COLOURS WITH TERMINAL NUMBERS ON INDOOR AND OUTDOOR UNIT’S TERMINAL BLOCKS AND FIRMLY SCREW
WIRES TO THE CORRESPONDING TERMINALS.
3) CONNECT THE EARTH WIRES TO THE CORRESPONDING TERMINALS.
4) PULL WIRES TO MAKE SURE THAT THEY ARE SECURELY LATCHED UP, THEN RETAIN WIRES WITH WIRE RETAINER.
5) IN CASE OF CONNECTING TO AN ADAPTER SYSTEM. RUN THE REMOTE CONTROL CABLE AND ATTACH THE S21. (REFER TO
5. WHEN CONNECTING TO A WIRED REMOTE CONTROLLER.)
6) SHAPE THE WIRES SO THAT THE SERVICE LID FITS SECURELY, THEN CLOSE SERVICE LID.
WARNING
Do not use tapped wires, stranded wires, extension cords, or starburst connections, as they may cause
overheating, electrical shock, or fi re.
Do not use locally purchased electrical parts inside the product. (Do not branch the power for the drain
pump, etc., from the terminal block.) Doing so may cause electric shock or fi re.
•
•
123
Terminal block
Electrical component box
Wire retainer
Use the specified
wire type.
Shape wires so that the
service lid will fit securely.
Firmly secure wire retainer so that
wires sustain no external stress.
1
2
3
123 LN
Use 2.0mm diameter wires.
H05RN
Firmly fix the wires with
the terminal screws.
Outdoor unit
Indoor
unit
Firmly fix the wires with
the terminal screws.
