16
A5LCY-E-2010 Application Information
05nahteroM05nahteroM
More than 150
More
than 100
More than 50 More than 100
Side view
1200
or less
Wall facing one side Walls facing two sides
Top view
Top view
unit: mm
More than 150
More than 300
More than 50
Walls facing three sides

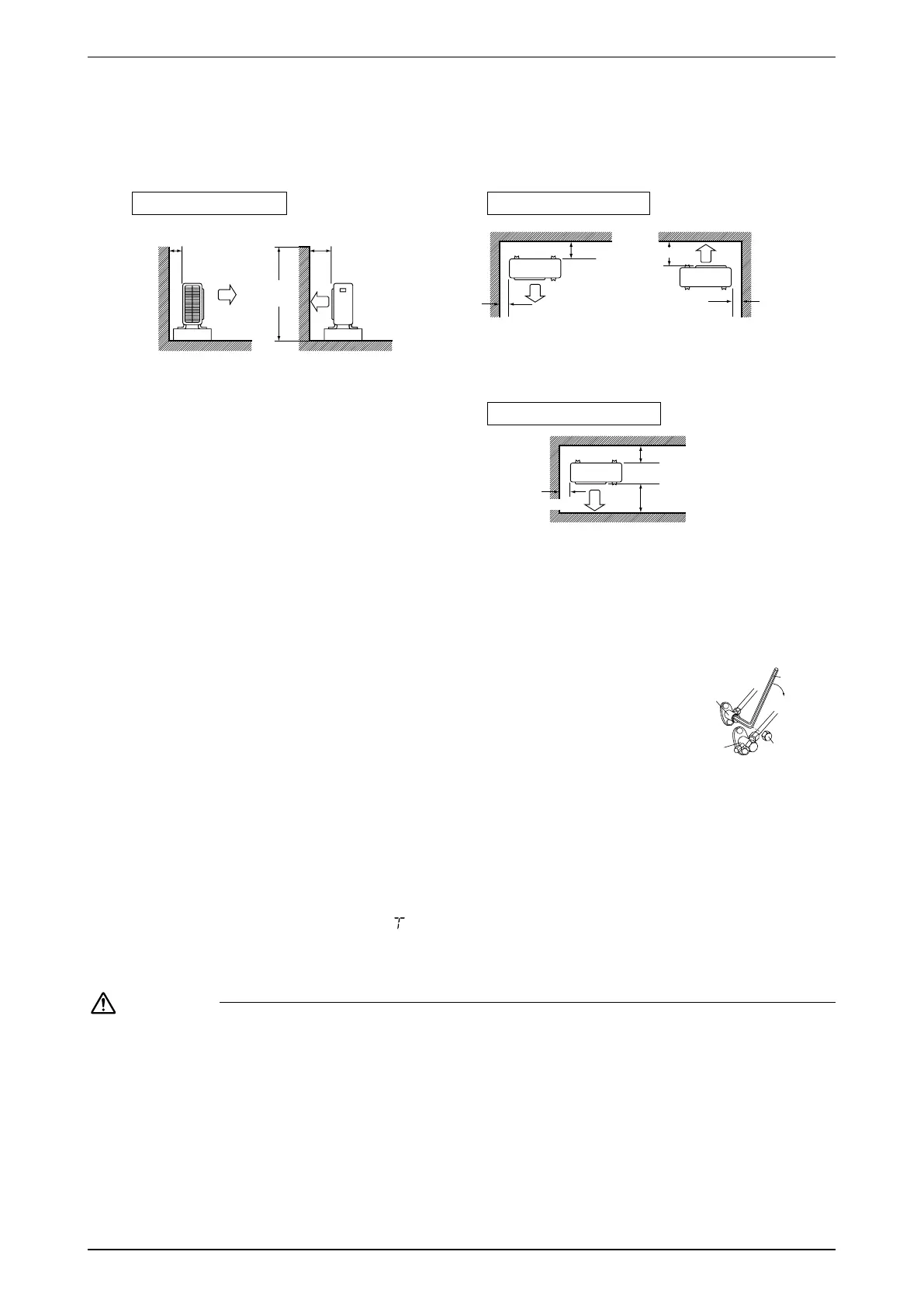

Outdoor Unit Installation
Where a wall or other obstacle is in the path of outdoor unit’s intake or exhaust airfl ow, follow the
installation guidelines below.
For any of the below installation patterns, the wall height on the exhaust side should be 1200mm or less.
Pump Down Operation
In order to protect the environment, be sure to pump down when relocating or disposing of the unit.
1) Remove the valve cap from liquid stop valve and gas stop valve.
2) Carry out forced cooling operation.
3) After 5 to 10 minutes, close the liquid stop valve with a hexagonal wrench.
4) After 2 to 3 minutes, close the gas stop valve and stop forced cooling operation.
How to forced cooling operation mode
■ Using the indoor unit ON/OFF button
Press the indoor unit ON/OFF button for at least 5 seconds. (Operation will start.)
• Forced cooling operation will stop automatically after around 15 minutes.
To force a trial operation to stop, press the indoor unit ON/OFF button.
■ Using the main unit’s remote controller
1) Press “ON/OFF” button to turn on the system.
2) Press “TEMP” button (2 locations) and “MODE” button at the same time.
3) Press “MODE” button twice and select “ ”.
4) Trial operation terminates in approx. 30 minutes and switches into normal mode. To quit a trial operation,
press “ON/OFF” button.
CAUTION
When pressing the switch, do not touch the terminal block. It has a high voltage, so doing so may cause
electric shock.
After closing the liquid stop valve, close the gas stop valve within 3 minutes, then stop the forced
operation.
•
•
•
•
Gas
stop valve
Valve cap
Hexagonal
wrench
Close
Liquid
stop valve
To Next Page
