Application Information A5LCY-E-2010
1
2
3
123
LN
Safety
breaker
16A
Earth leakage
circuit breaker
Earth
H05RN
Firmly fix the wires with
the terminal screws.
Outdoor unit
Indoor
unit
Power supply
50Hz 220-240V
Firmly fix the wires with
the terminal screws.
Use 2.0mm diameter wires.
1
2
3
Use the specified wire type and
connect it securely.
Firmly secure
wire retainer so
wire terminations
will not receive
external stress.
Shape wires so
that the stop
valve cover fit
securely.
Power supply
terminal block
Stranded wire
Round crimp-style
terminal

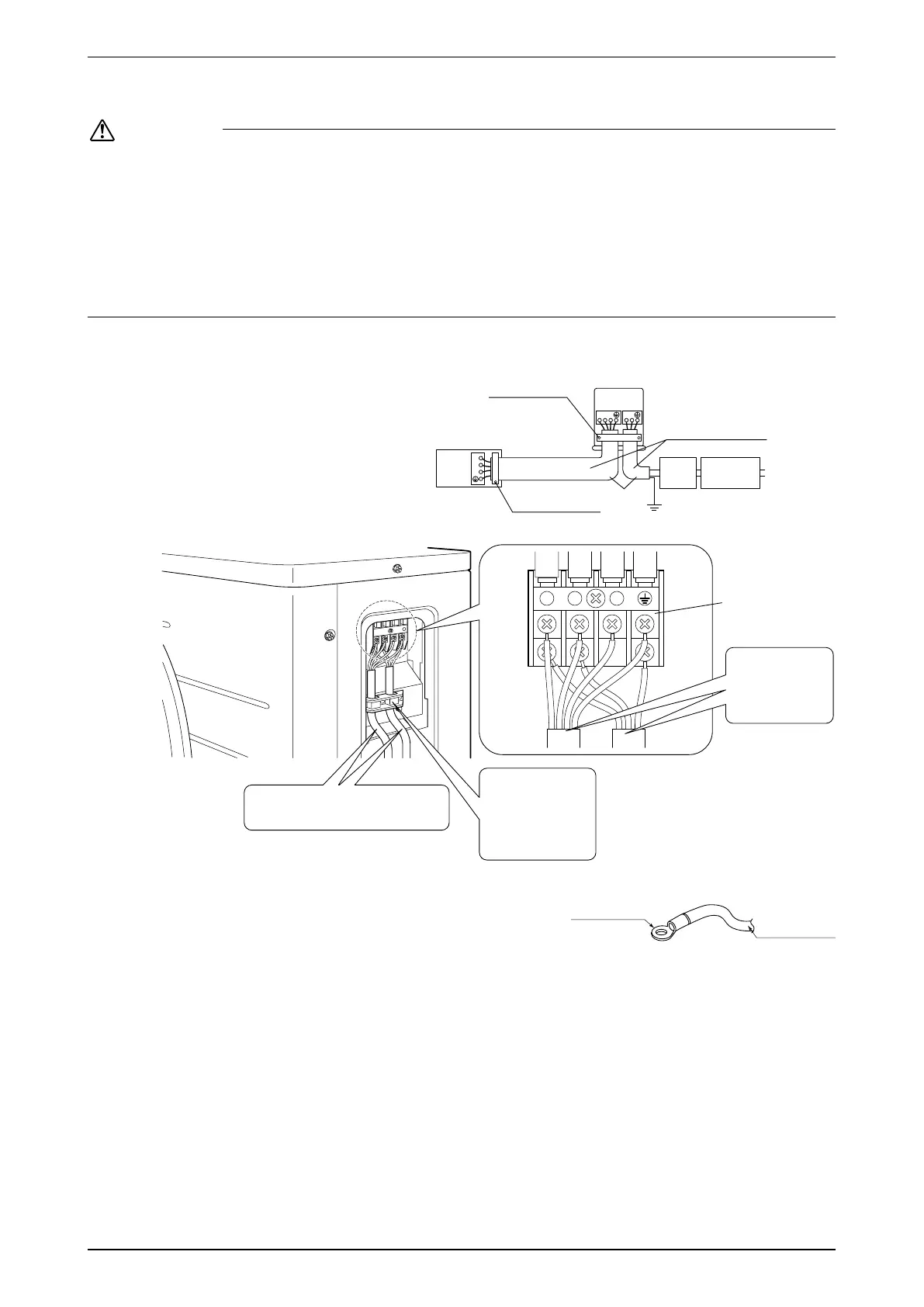

Electrical Wiring Connection
WARNING
Do not use tapped wires, stranded wires, extension cords, or starburst connections, as they may cause
overheating, electrical shock, or fi re.
Do not use locally purchased electrical parts inside the product. (Do not branch the power for the drain
pump, etc., from the terminal block.) Doing so may cause electric shock or fi re.
Be sure to install an earth leakage breaker. (One that can handle higher harmonics.) (This unit uses an
inverter, which means that it must be used an earth leakage breaker capable handling harmonics in order
to prevent malfunctioning of the earth leakage breaker itself.)
Use an all-pole disconnection type breaker with at least 3mm between the contact point gaps.
Do not turn on the safety breaker until all work is completed.
1) strip the insulation from the wire (20mm).
2) connect the connection wires between the
indoor and outdoor units so that the terminal
numbers match. tighten the terminal screws
securely. we recommend a fl athead
screwdriver be used to tighten the screws.
the screws are packed with the terminal
board.
Observe the notes mentioned below when wiring to the
power supply
terminal board.
Precautions to be taken for power supply wiring.
Use a round crimp-style terminal for connection to the power
supply
terminal board. In case it cannot be used due to unavoidable
reasons, be
sure to observe the following instruction.
Place the round crimp-style terminals on the wires up to the
covered part
and secure in place.
•
•
•
•
•
To Next Page
