INSTALLATION - FLOOR STANDING TYPE (OPTIONAL SPECIFICATION)
STEP 1
Remove air intake grille, side panel, side close-up and side panel from the unit; see Fig E.
STEP 2

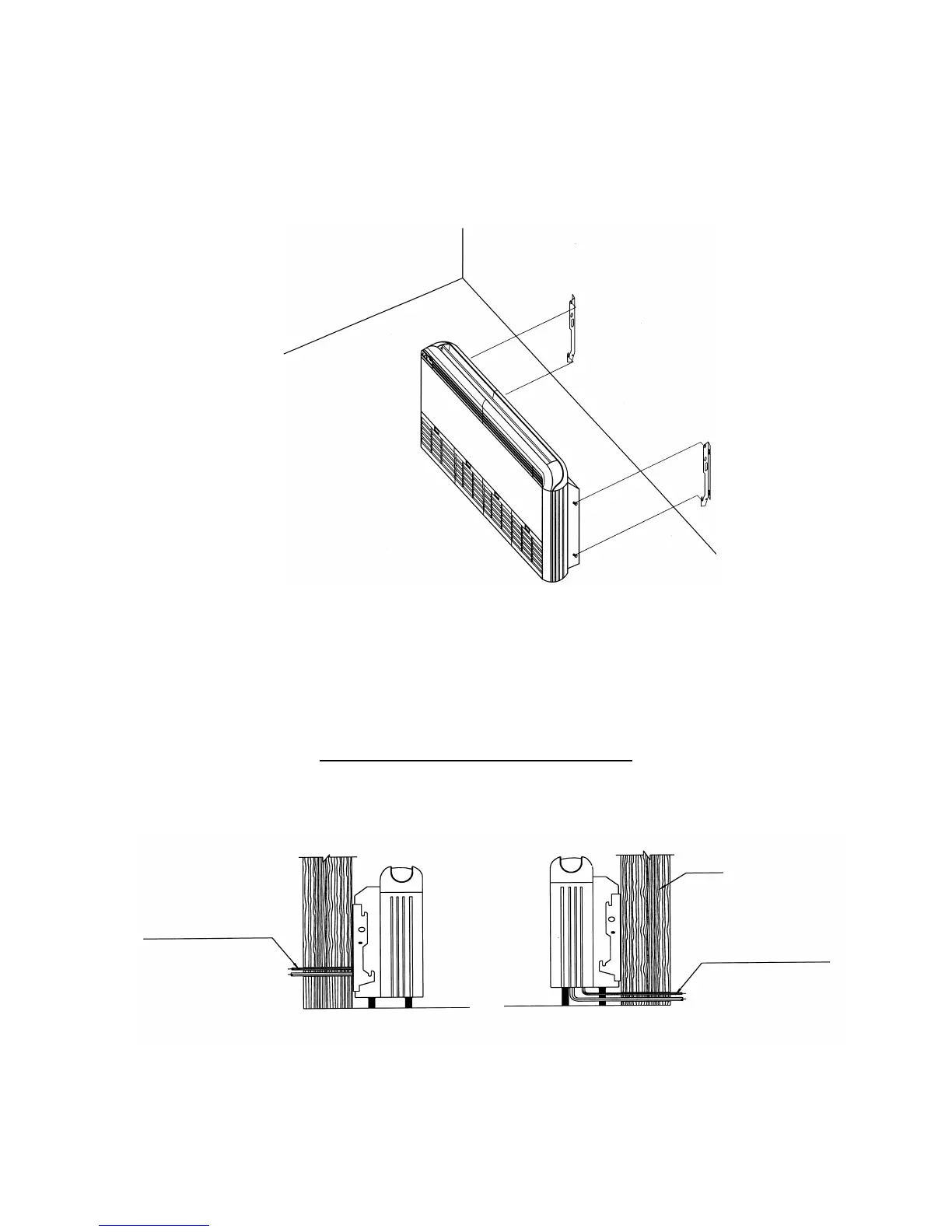

Position the floor support (field supply) as per Fig B. install the unit; see Fig I.
Wall
Wall
Fig I
STEP 3
Two types of piping and drain pipe connection as Fig J.
PIPING AND DRAIN PIPE INSTALLATION
FROM BACK PANEL
PIPING & DRAIN PIPE
WALL
FROM TOP PANEL
PIPING & DRAIN PIPE
Fig J
