Step 2: Waterproof and Connect the Cable(s)
If the camera will be installed indoors, simply connect the network side cable to the camera
Ethernet port.
However, if the camera will be installed outdoors, ensure that the cable connections and the
network side cable itself are also protected from water and other environmental factors.
Use the bundled cable gland for the Ethernet connector and use waterproof tape to protect the
other cable connection.
Using the Cable Gland
This section describes how to waterproof the cable-out or “pigtail” of the camera using the
bundled cable gland. Before connection, prepare an exterior-grade Ethernet cable with RJ-45
connector.
Perform the following to waterproof the “pigtail” using the cable gland:

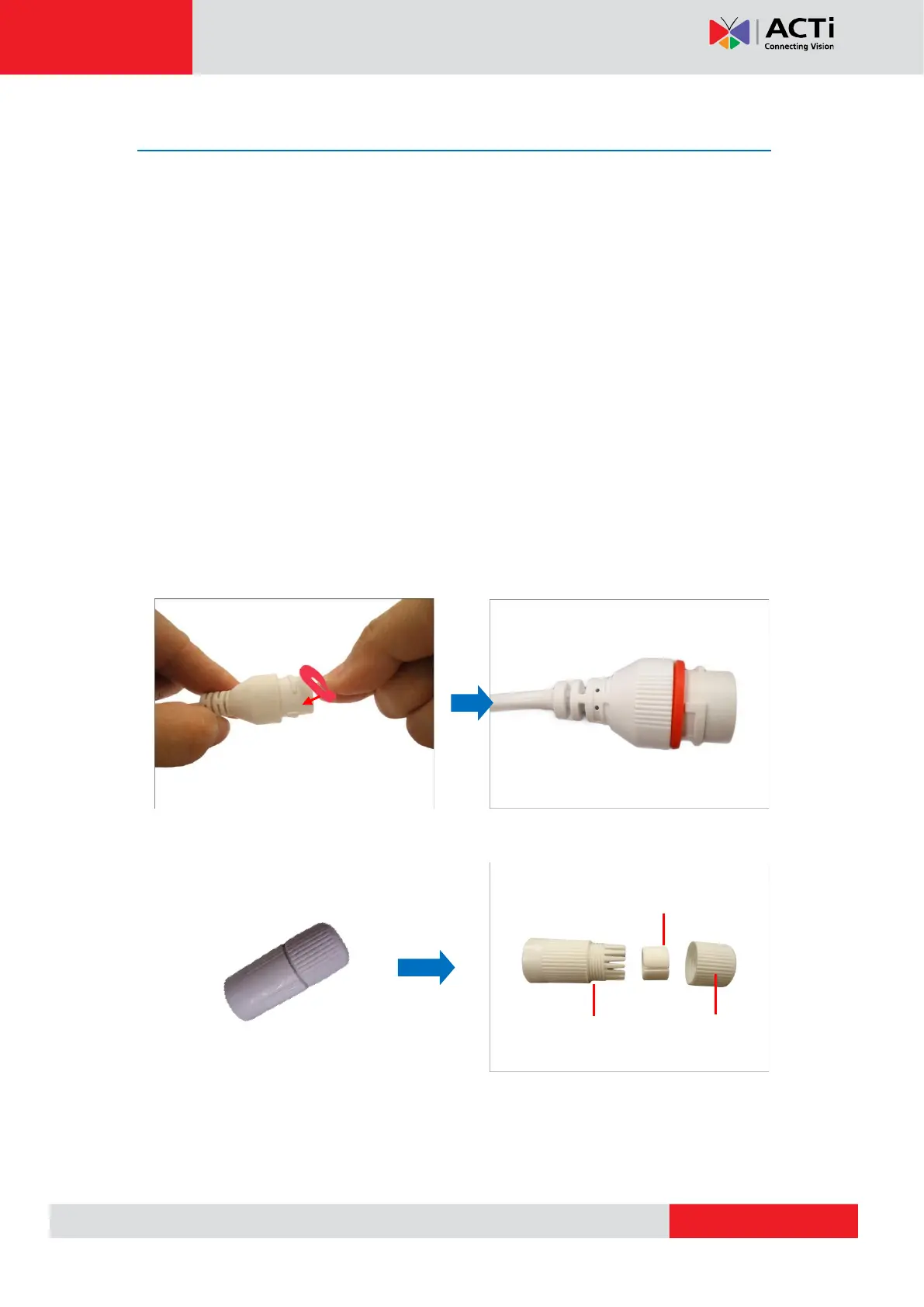

1. Attach the washer to the Ethernet connector of the camera.
2. Detach the clamping nut and sealing insert from the gland body:
