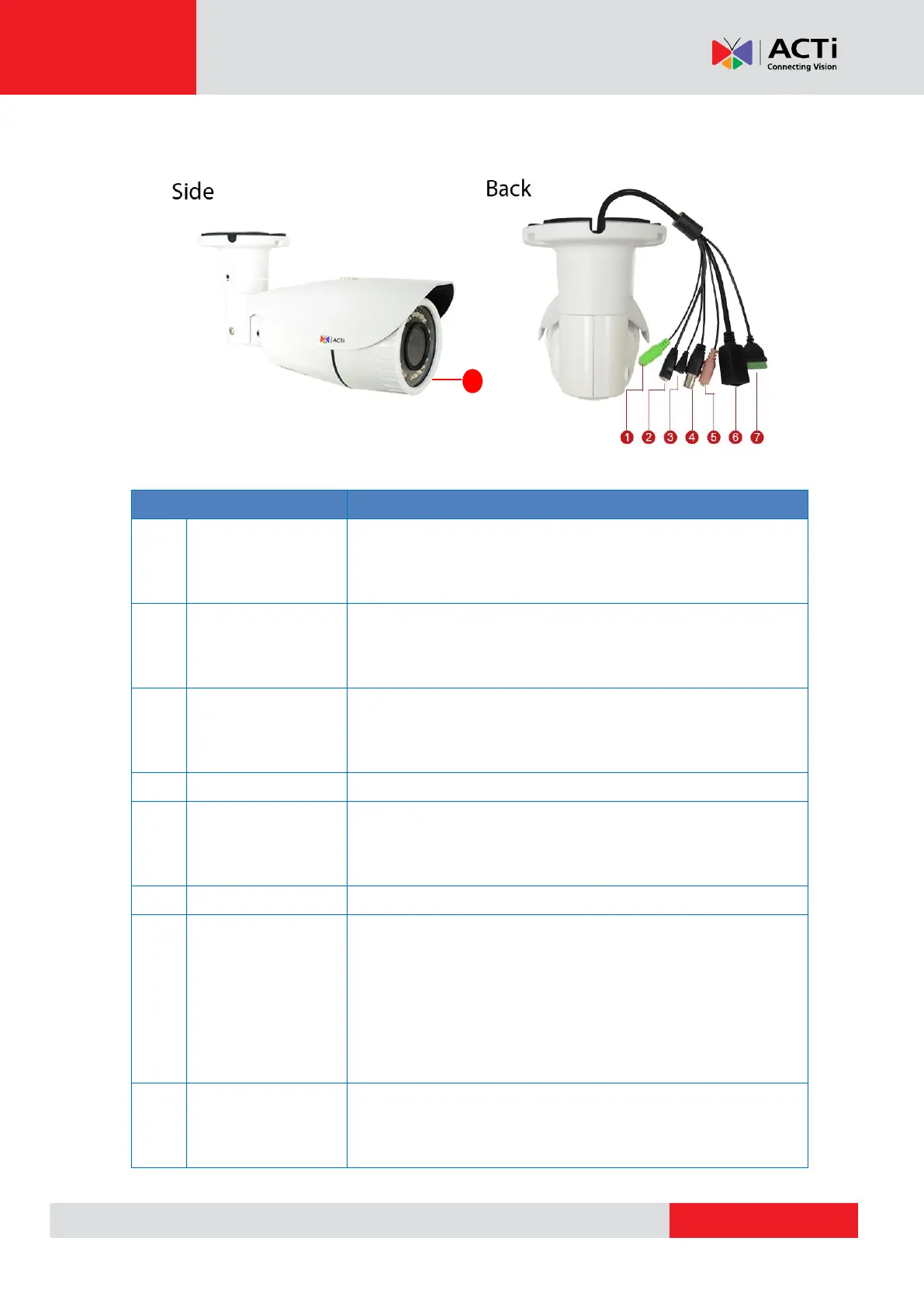

A41, A42, A43, A47, A415
Item
Description
1
Audio Output
This jack connects to an audio output device, such as a speaker.
See How to Connect Audio Input / Output Devices (Optional
for A41~A47 only) on page 19.
2
DC 12V Power Input
Connects the camera to an external power adapter (not
included). See Connecting a Power Adapter (Optional) on
page 19 for more information.
3
Reset Button
Restores the factory default settings of the camera, including the
administrator’s password. See How to Reset the Camera
(A41~A47 only) on page 22.
4
BNC Video Output
Connects the camera directly to a monitor with BNC input.
5
Audio Input
This jack connects to a microphone. See How to Connect
Audio Input / Output Devices (Optional for A41~A47 only) on
page 19
6
Ethernet Port
Connects to a network using a standard Ethernet cable.
7
Digital Input / Output
Connects to digital input or output devices, such as an alarm
trigger, panic button, etc. Digital Input (DI) and Digital Output
(DO) devices are used in applications like motion detection,
event triggering, alarm notifications, etc. See Connecting the
Digital Input / Output Devices
(Optional for A41~A47 only) on page 20.
8
Memory Card Slot
(A415 only)
Insert a memory card into the slot for local recording. See How
to Install / Remove the Memory Card
(A49, A415 only) on page 21.
