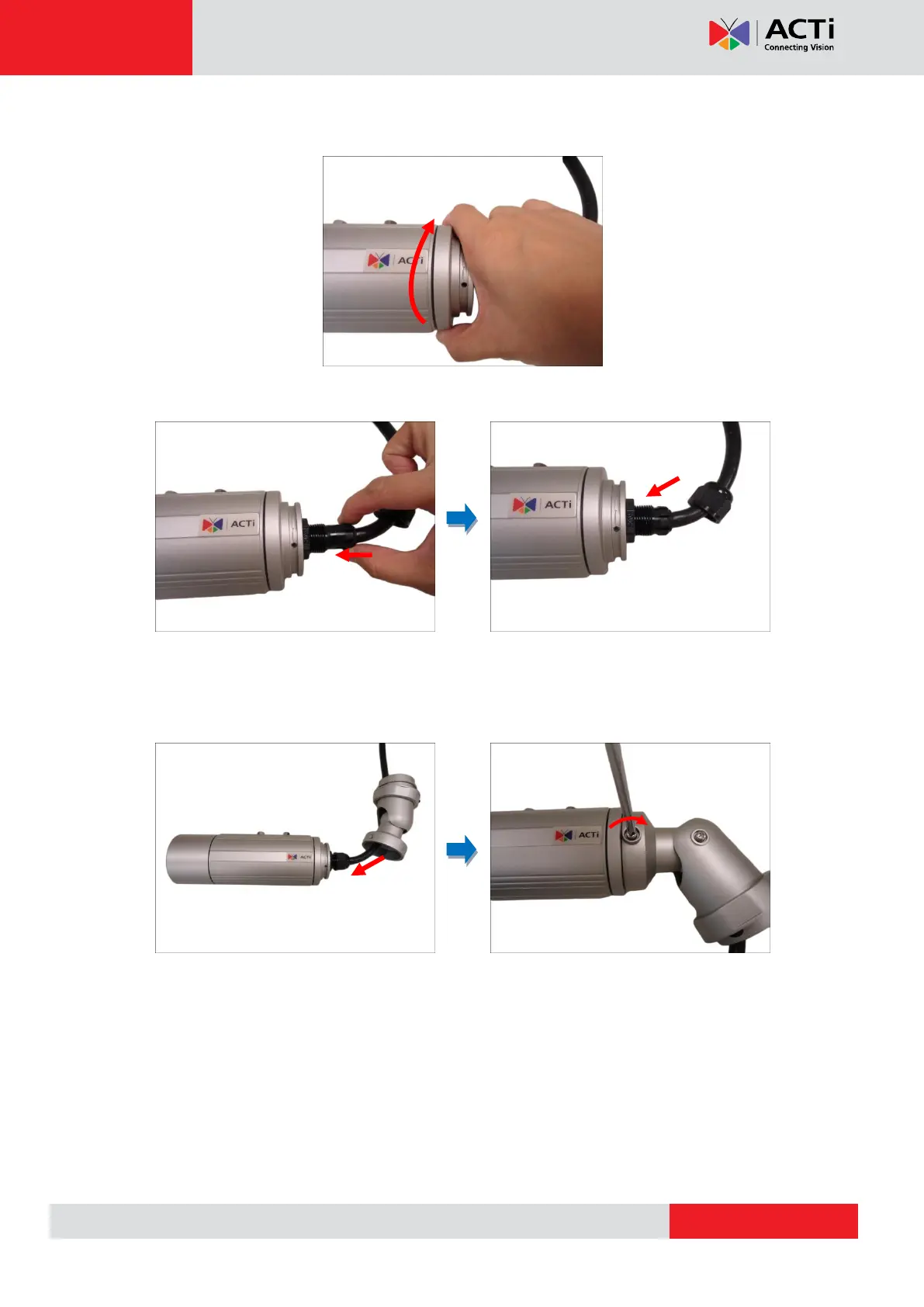

7. Attach the back cover.
8. Push the rubber insert into the gland and attach the clamping nut.
NOTE: Make sure the clamping nut is tightly attached to ensure that the connection is
waterproof.
9. Attach the integrated bracket and secure the three (3) screws.
