ACTi E44A - Page 30

www.acti.com
Hardware Manual
30

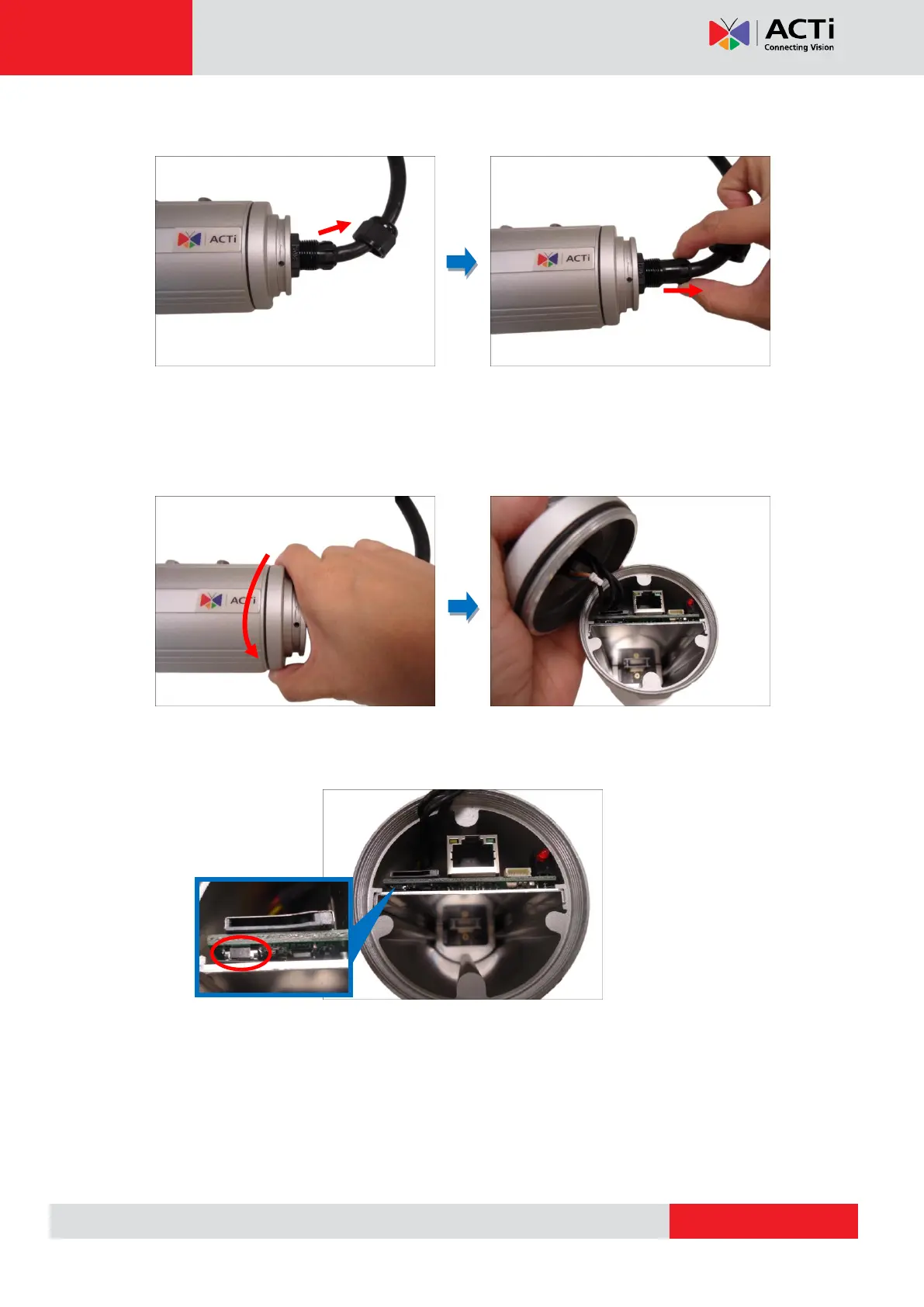

3. Remove the clamping nut and rubber insert to loosen the cable within the gland.
NOTE: Connectors are connected inside the camera, be careful when pulling the rubber
insert from the gland.
4. Twist to open the back cover and slowly lift the cover.
5. To reset the camera, press and hold the Reset button for at least 5 seconds or until the
LED lights up.
