Accessing the Extender’s GUI
e Extender features an onboard graphical user interface (GUI) that
includes user-congurable settings. Some of these settings should be
accessed by experienced network technicians only.
To congure the network settings of the Extender:
1. Ensure that the Extender is connected to a gateway/modem, and that
both devices are powered on.
2. On a computer connected to the same network as the gateway/
modem/router and Extender, log in to the gateway/modem/router by
entering 192.168.1.254 into the address bar of a web browser.

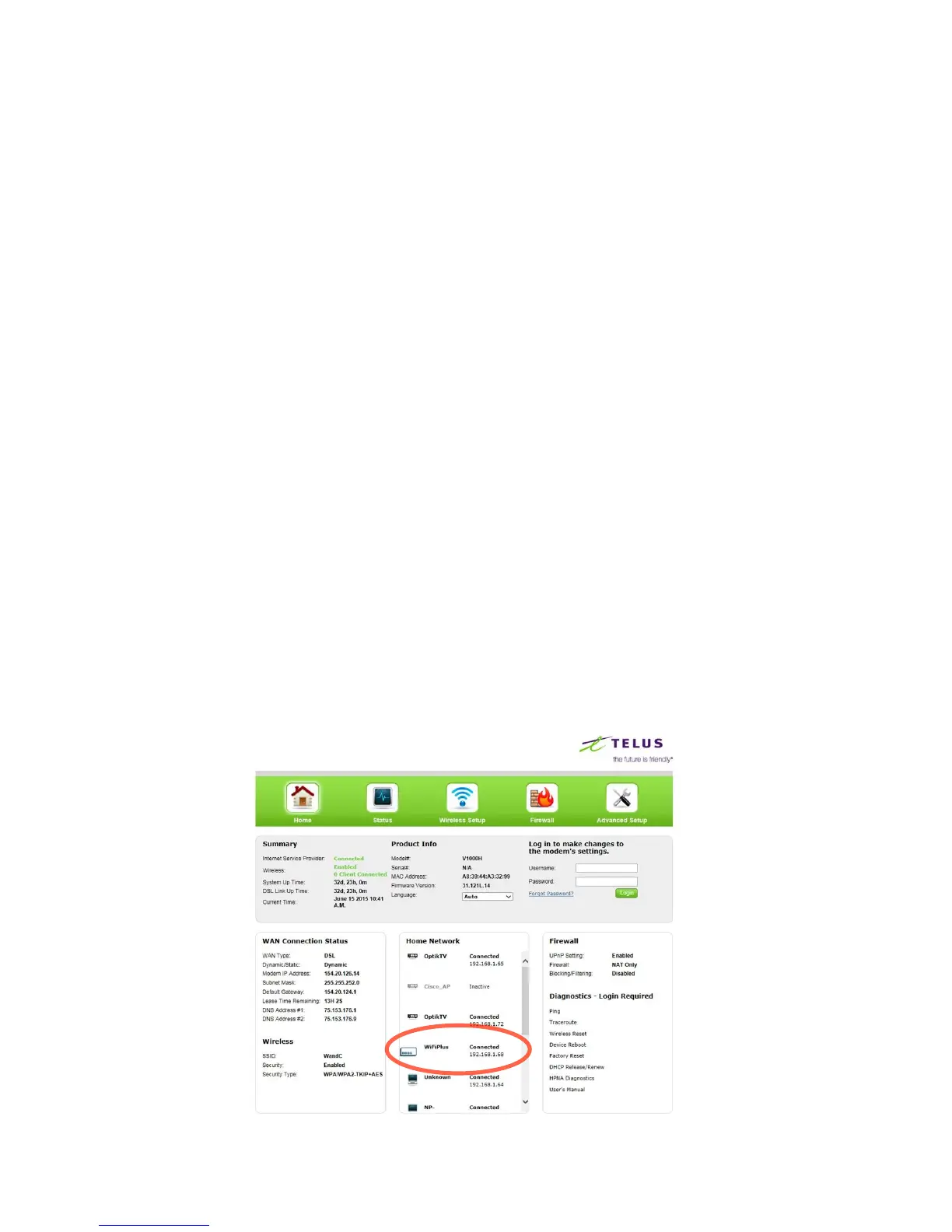

3. e gateway/modem/router’s GUI appears. e IP address of the
Extender should be displayed on the Main or Home screen of an
Actiontec gateway/modem, as indicated below.!
