Acuity Brands Quantum ELM4L - Wiring Diagram

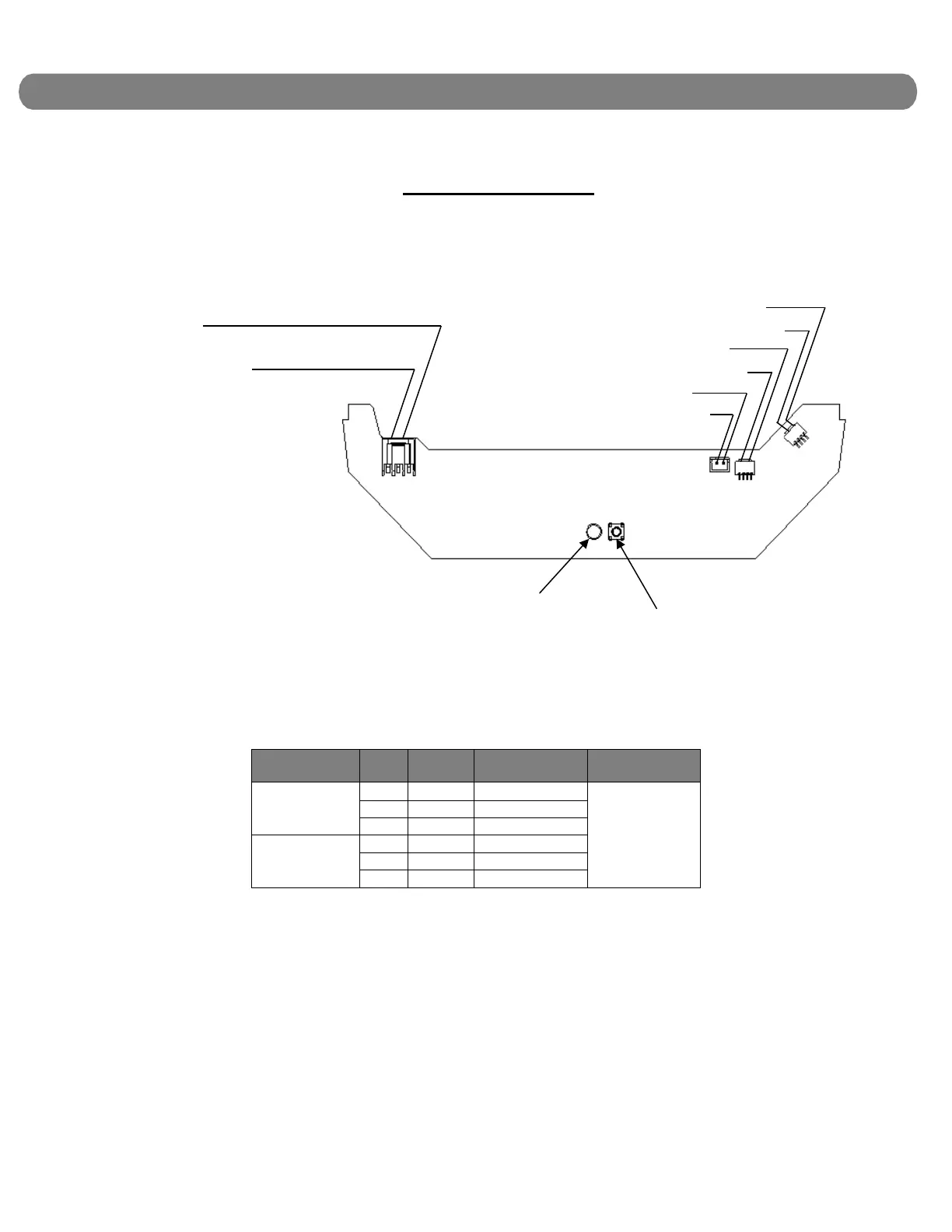

WIRING DIAGRAM
Input Voltage
Pin
No.
Wire
color
Wire Label
Battery Type
120V-277V
3
Black
Hot 120V-277V
NiCd 5S1P _
5.04W
2
1
White
Neutral
120V-347V
3
Black
Hot 120V-347V
2
1
White
Neutral
Lamp
Battery
Status Indicator LED
Test Switch
Input from branch circuit. See label on
wire pair for voltage requirements. Note:
refer to table for operating voltages
Lamp
PIN 3
PIN 1
page 5
INSTALLATION and WIRING (CONTINUED)
