Airbag System Components
Additional Information About Your Airbags
26
(1)
(8)
(4)
(5)
(15)
(2)
(11)
(14)
(13)
(14)
(16)
(13)
(4)
(17)
(10)
(5)
(8)
(6)
(7) (12)(9)
(3)

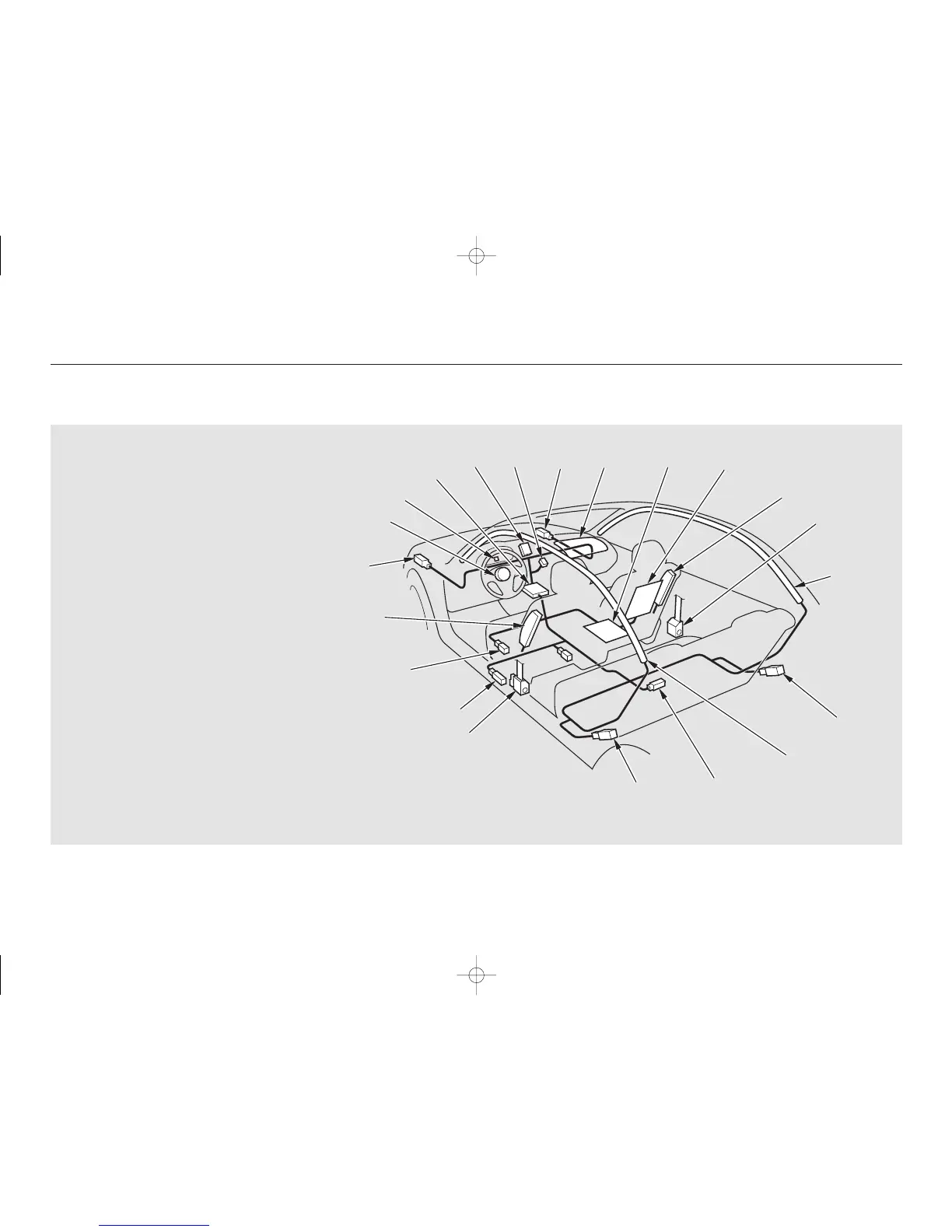

(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners/
Seat Belt e-pretensioners
(5) Side Airbags
(15) Supplemental Restraint System (SRS) Indicator
(16) Safing Sensor
(17) e-pretensioner Control Unit
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Seat Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors (First)
(11) Occupant Detection System (ODS) Sensors
(12) Front Passenger’s Weight Sensor Control Unit/
ODS Sensors Control Unit
(13) Side Impact Sensors (Second)
(14) Side Curtain Airbags
