The fuses are located in five fuse
boxes. The interior fuse boxes are
located under the dashboard on the
driver’s and passenger’s side.

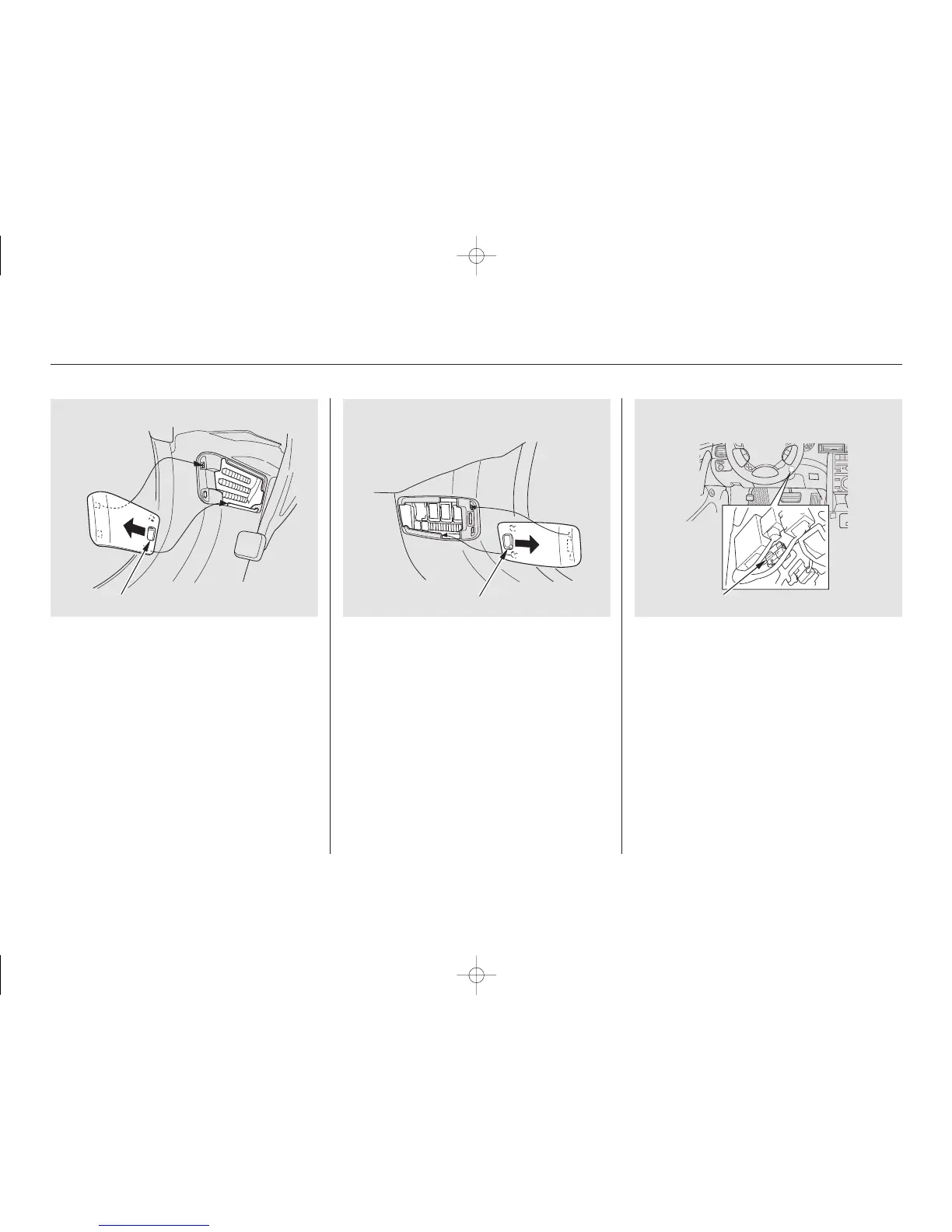

To remove the fuse box lid, put your
finger in the notch on the lid, pull it
toward you, and take it out of its
hinges.
To open the secondary fuse box lid,
push the tab in the direction as
shown in the illustration.
Fuses
512
NOTCH
NOTCH
INTERIOR FUSE BOX
Driver’s side
INTERIOR FUSE BOX
Passenger’s side
SECONDARY INTERIOR FUSE BOX
Driver’s side
FUSE BOX
