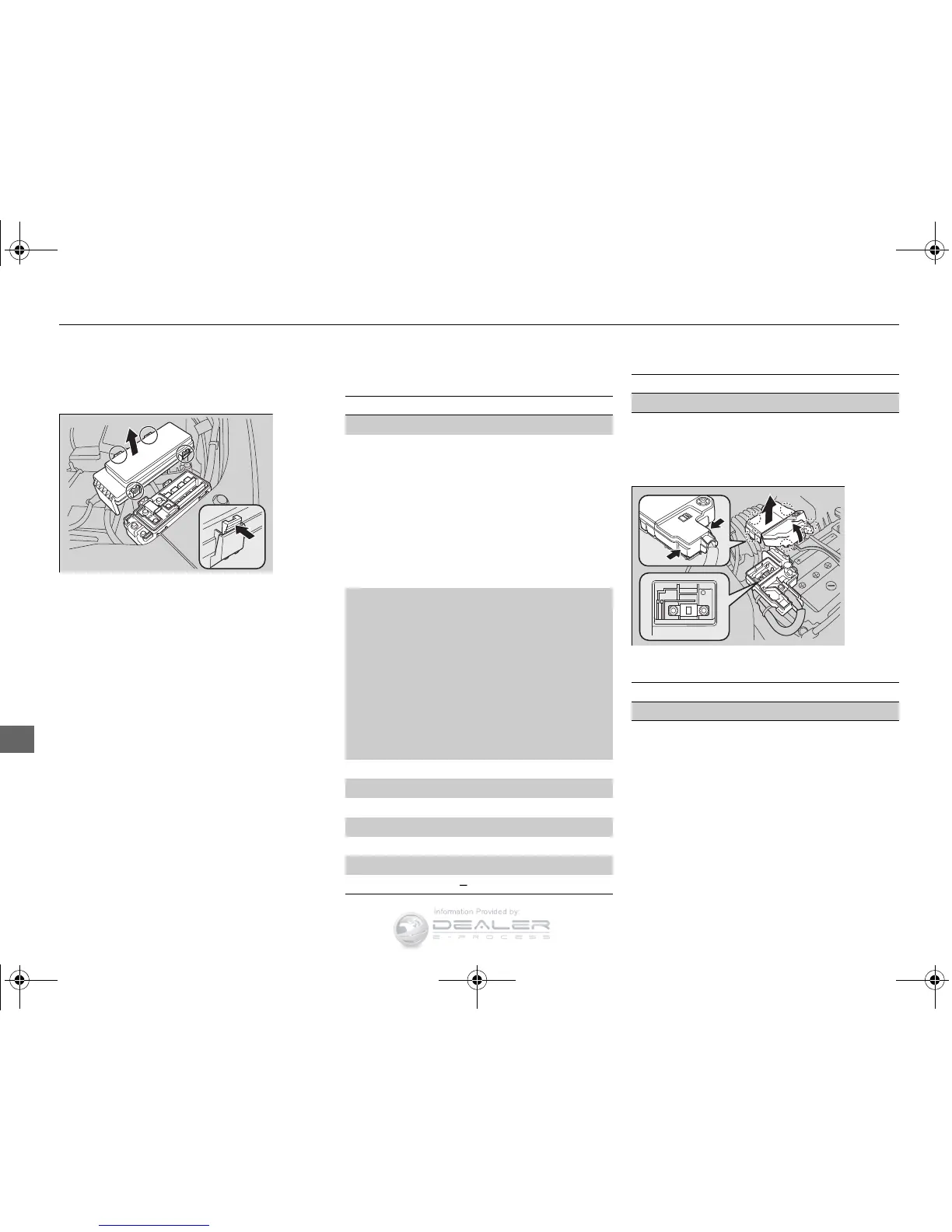

Located near the battery. Push the tabs to
open the box.
■ Circuit protected and fuse rating
Circuit Protected Amps
1 Main Fuse 150 A
2
Horn & Hazard 30 A
R/B Main 2 60 A
ABS/VSA RLY 30 A
RFC 50 A
R/B Main 3 50 A
AS F/B Main 2 60 A
ABS/VSA Motor 40 A
Heater Motor 40 A
3
R/B Main 1 60 A
DR F/B Main 1 60 A
AS F/B Main 1 60 A
IG Main 1 30 A
DR F/B Main 2 60 A
IG Main 2 30 A
Left Precision All Wheel
Steer
40 A
Rear Defroster 40 A
4 ST MG 30 A
5 Left Electric Parking Brake 30 A
6 Right Electric Parking Brake 30 A
7 Injector 20 A
8 Hazard 15 A
9 − −
10 − −
Located near the + terminal on the battery.
Push the tabs to open the box.
■ Circuit protected and fuse rating
11 Horn 10 A
Circuit Protected Amps
Circuit Protected Amps
EPS 80 A
