Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
There are three fuse boxes in the engine
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

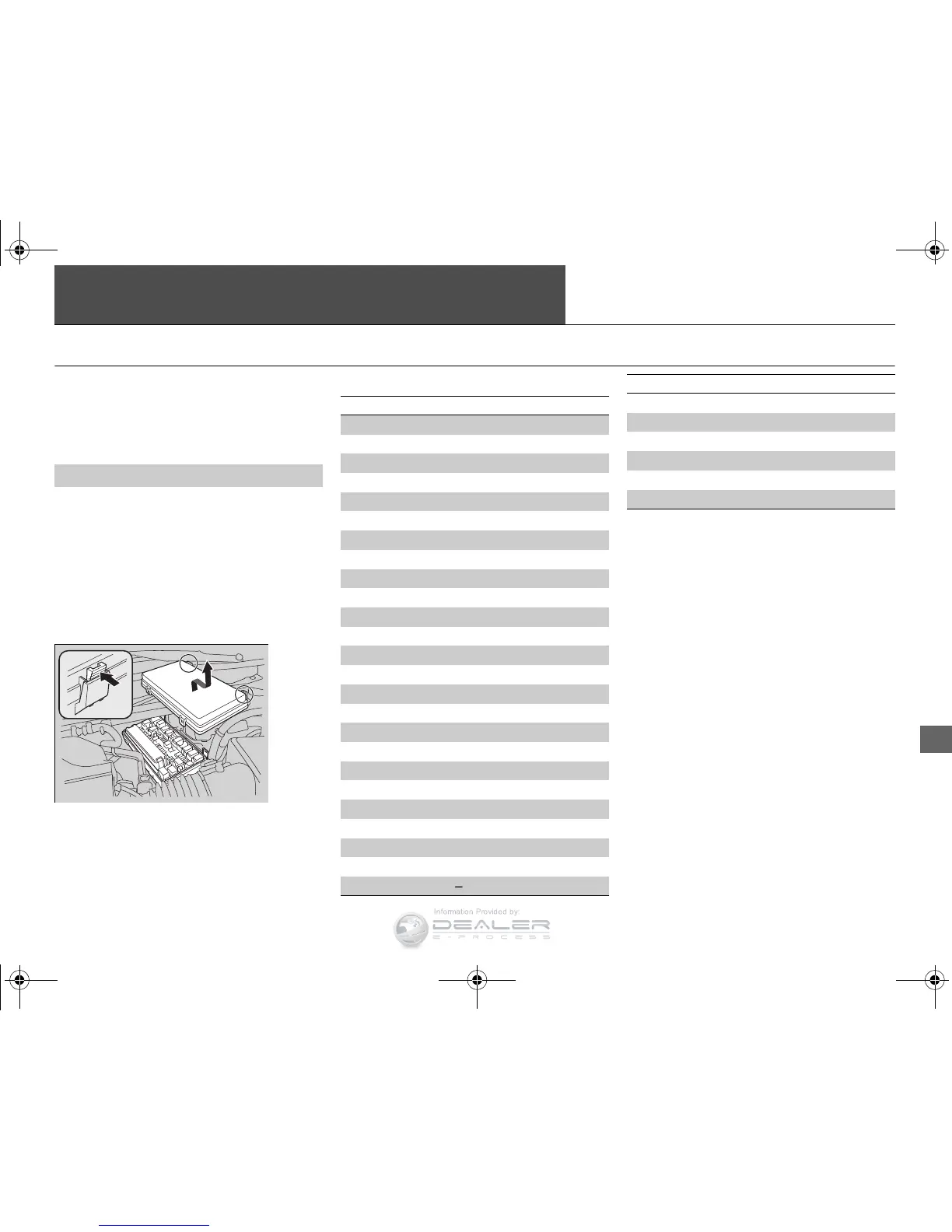

Located near the brake fluid reservoir. Push
the tabs to open the box.
■
Engine Compartment Fuse Box
■ Circuit protected and fuse rating
Circuit Protected Amps
1 IG1A ACG FR 15 A
2 IG1A MISS SOL1 10 A
3 − −
4− −
5 − −
6 IG1B ECU FR 7.5 A
7 IG1B OP FR 7.5 A
8 IGP2 15 A
9 DBW 15 A
10 IGP 15 A
11 IG Coil 15 A
12 ACM 20 A
13 − −
14 Interior Lights 10 A
15 Back Up Radio 10 A
16 Back Up 10 A
17 MG Clutch 7.5 A
18 Front Washer 15 A
19 Stop 7.5 A
20 Right Headlight High Beam 10 A
21 Trunk 10 A
22 Small 15 A
23 − −
24 Left Headlight High Beam 10 A
25 − −
26 Right Headlight Low Beam 15 A
27 Left Headlight Low Beam 15 A
28 IGP2 Sub 7.5 A
29 Power Rear Sunshade
*
(20 A)
30 Headlight Washer
*
30 A
31 Wiper 30 A
Circuit Protected Amps
