Acura MDX 2016 Owner's Guide

126 | | 127
HANDLING THE UNEXPECTEDHANDLING THE UNEXPECTED
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT
PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE
UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
*if equipped

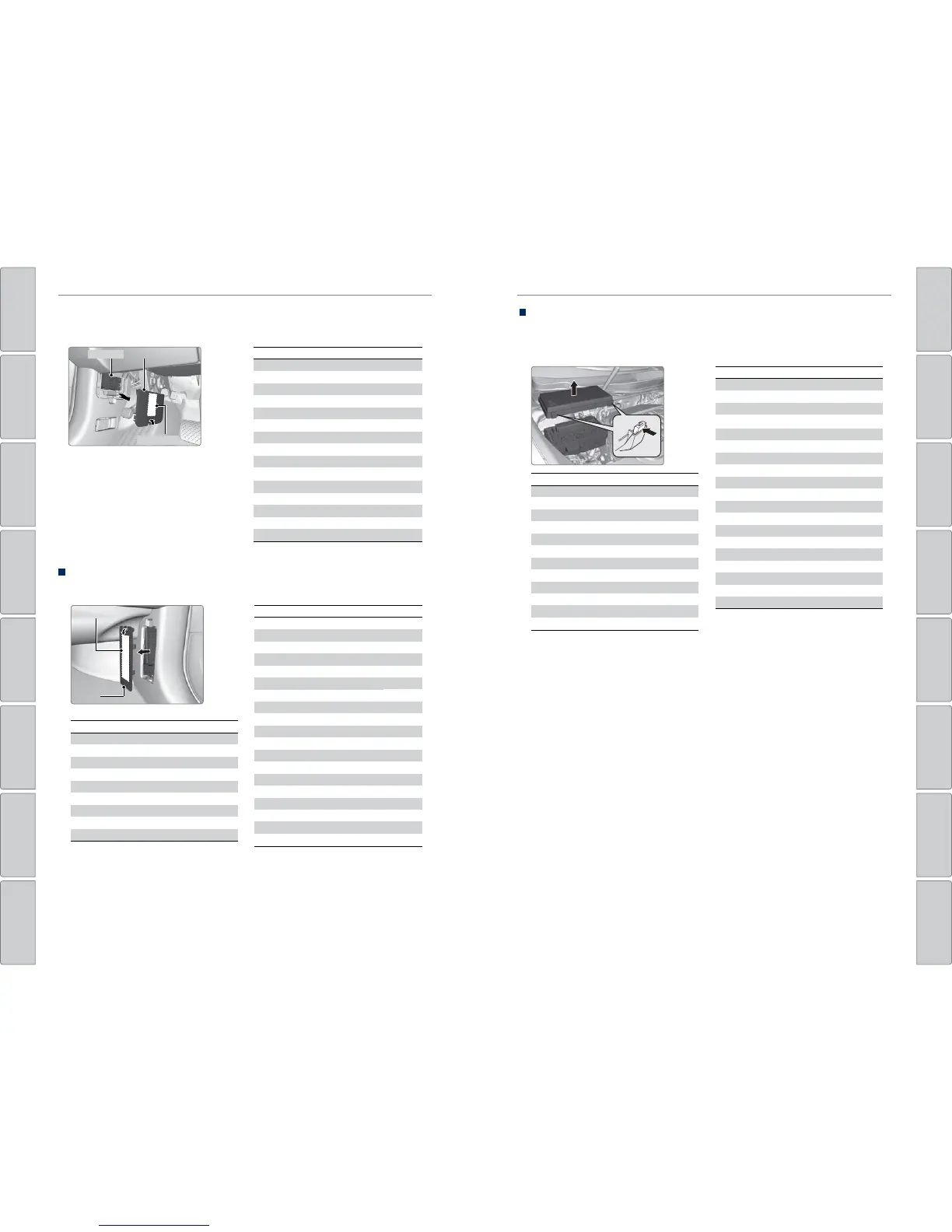

Passenger’s Side Interior Fuse Box
Located on the lower side panel. Remove the cover to access.
Fuse label
Cover
Type B*
Located under the Type A driver’s side fuse box. Take off the cover to open.
Circuit Protected Amps
1 VST 1 30 A
2 Horn 10 A
3 VST 2 30 A
4 − −
5 − −
6 − −
7 − −
8 − −
9 Meter 10 A
10 RES
*
7.5 A
11 MICU 7.5 A
12 EPS/VSA 7.5 A
13 Audio/TCU 7.5 A
14 Back Up 10 A
15 Audio/ANC 20 A
Circuit Protected Amps
1 EPTR
*
(30A)
2 RR AS P/W 20 A
3 ACM 20 A
4 FR DEF
*
(15A)
5 AVS Heated Seat 20 A
6 FR AS P/W 20 A
7 AS P/Seat (SLI) 20 A
8 AS P/Seat (REC) 20 A
9 AS P/Seat (LUM) (7.5 A)
10 Spare 5 A
11 Heated Steering
*
(10A)
12 − −
13 − −
14 RR ACC Socket 20 A
15 FR ACC Socket 20 A
16 − −
17 − −
18 AMP 30 A
19 SRS 10 A
20 AS ECU 7.5A
21 Option 7.5A
22 − −
23 − −
24 OPDS 7.5A
25 ILLUMI (INT) 5 A
26 EPTL
*
(30A)
27 CTR ACC Socket 20 A
28 AC INVTR (30A)
Circuit Protected Amps
Circuit Protected Amps
1 EPTR
*
(30A)
2 RR AS P/W 20 A
3 ACM 20 A
4 FR DEF
*
(15A)
5 AVS Heated Seat 20 A
6 FR AS P/W 20 A
7 AS P/Seat (SLI) 20 A
8 AS P/Seat (REC) 20 A
9 AS P/Seat (LUM) (7.5 A)
10 Spare 5 A
11 Heated Steering
*
(10A)
12 − −
13 − −
14 RR ACC Socket 20 A
15 FR ACC Socket 20 A
16 − −
17 − −
18 AMP 30 A
19 SRS 10 A
20 AS ECU 7.5A
21 Option 7.5A
22 − −
23 − −
24 OPDS 7.5A
25 ILLUMI (INT) 5 A
26 EPTL
*
(30A)
27 CTR ACC Socket 20 A
28 AC INVTR (30A)
Circuit Protected Amps
Fuse box
Fuse label
Side panel cover
*if equipped
Engine Compartment Fuse Boxes
Type A
Located near the brake fluid reservoir. Push the tabs to open the box.
Circuit Protected Amps
1 STRLD
*2
7.5 A
2 − −
3 ACG FR 15 A
4Washe
r1
5 A
5 − −
6ECU FR 7.5 A
7 Starter
*2
7.5 A
8FI Su
b1
5A
9 DBW 15 A
10 FI Main 15 A
11 IG Coil 15 A
12 DRL
R1
0 A
13 DRL L 10 A
14 Injector20A
15 Radio
*1
20 A
*1: Models without auto idle stop
*2: Models with auto idle stop
16 Back Up 10 A
17 MG Clutch 7.5A
18 FR Fog
*
(20 A)
19 − −
20 H/L HI R7.5 A
21 − −
22 Small
*1
10 A
23 Gear Selector 15 A
24 H/L HI L7.5 A
25 − −
26 H/L LO R10A
27 H/L LO L 10 A
28 Oil LVL7.5 A
29 Main Fan 30 A
30 Sub Fan30A
31 Wiper Main 30 A
Circuit Protected Amps
Circuit Protected Amps
1 STRLD
*2
7.5 A
2 − −
3 ACG FR 15 A
4Washer15 A
5 − −
6ECU FR 7.5 A
7 Starter
*2
7.5 A
8FI Sub15A
9 DBW 15 A
10 FI Main 15 A
11 IG Coil 15 A
12 DRL R10 A
13 DRL L 10 A
14 Injecto
r2
0A
15 Radio
*1
20 A
*1: Models without auto idle stop
*2: Models with auto idle stop
16 Back Up 10 A
17 MG Clutch 7.5A
18 FR Fog
*
(20 A)
19 − −
20 H/L HI
R7
.5 A
21 − −
22 Small
*1
10 A
23 Gear Selector 15 A
24 H/L HI
L7
.5 A
25 − −
26 H/L LO
R1
0A
27 H/L LO L 10 A
28 Oil LV
L7
.5 A
29 Main Fan 30 A
30 Sub Fa
n3
0A
31 Wiper Main 30 A
Circuit Protected Amps
