Acura MDX 2016 Owner's Guide

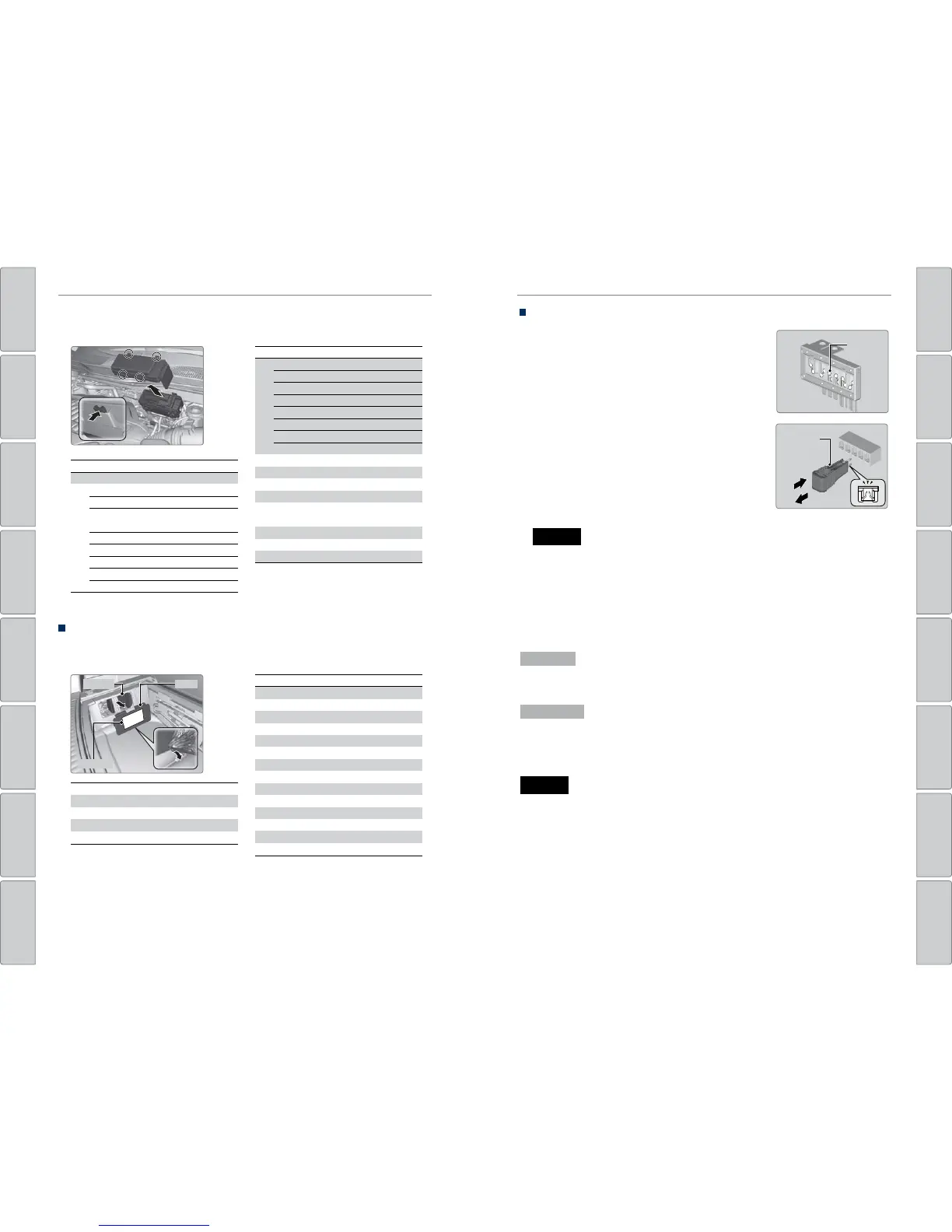

128 | | 129
HANDLING THE UNEXPECTEDHANDLING THE UNEXPECTED
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT
PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE
UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Type B
Located near the battery. Push the tabs to open the box.
Circuit Protected Amps
1 Main Fuse 150A
2
VSA MTR 40 A
VSA FS
R2
0A
Stop&Horn Hazard
*
30 A
Hazard
*
RR Blower 30 A
DC/DC 3
*
60 A
RR F/B-2 60 A
AS F/B-2 60 A
EPS 60 A
3
H/L Washer
*
(30 A)
IG1B Main 30 A
R/B Main 60 A
DR F/B-1 50 A
AS F/B-1 50 A
RR F/B-1 60 A
IG1A Main 30 A
DR F/B-2 50 A
4FI Main 40 A
5 FR Blower 40 A
6RR DEF40A
7 IG1 Main ST 30 A
8
Stop & Horn
*
20 A
Stop
*
10 A
9 Hazard 15 A
10 BMS7.5 A
11 Small LT
*
7.5 A
Circuit Protected Amps
Circuit Protected Amps
1 Main Fuse 150A
2
VSA MTR 40 A
VSA FSR20A
Stop&Horn Hazard
*
30 A
Hazard
*
RR Blower 30 A
DC/DC 3
*
60 A
RR F/B-2 60 A
AS F/B-2 60 A
EPS 60 A
3
H/L Washer
*
(30 A)
IG1B Main 30 A
R/B Main 60 A
DR F/B-1 50 A
AS F/B-1 50 A
RR F/B-1 60 A
IG1A Main 30 A
DR F/B-2 50 A
4FI Main 40 A
5 FR Blower 40 A
6RR DE
F4
0A
7 IG1 Main ST 30 A
8
Stop & Horn
*
20 A
Stop
*
10 A
9 Hazard 15 A
10 BM
S7
.5 A
11 Small LT
*
7.5 A
Circuit Protected Amps
Rear Fuse Box
Located on the left side of the cargo area. Remove the cover using a cloth-
wrapped flat-tip screwdriver to access.
Cover
Fuse label
Fuse box
Circuit Protected Amps
Circuit Protected Amps
1 PTG Closer 20 A
2 Trailer Small LT
*
(20 A)
3 − −
4 Fuel Lid 7.5A
5 Seat Slide 20 A
6 − −
7 RR Heat Seat
*
(20 A)
8 − −
9 Trailer Charge
*
(20 A)
10 Trailer Back LT
*
(7.5 A)
11 Trailer Hazard
*
(7.5 A)
12 Rear Wiper 10 A
13 Rear ECU 7.5 A
14 4WD (20 A)
15 − −
16 − −
17 Trailer E-Brake
*
(20 A)
18 PTG MTR 40 A
Circuit Protected Amps
Circuit Protected Amps
1 PTG Closer 20 A
2 Trailer Small LT
*
(20 A)
3 − −
4 Fuel Lid 7.5A
5 Seat Slide 20 A
6 − −
7 RR Heat Seat
*
(20 A)
8 − −
9 Trailer Charge
*
(20 A)
10 Trailer Back LT
*
(7.5 A)
11 Trailer Hazard
*
(7.5 A)
12 Rear Wiper 10 A
13 Rear ECU 7.5 A
14 4WD (20 A)
15 − −
16 − −
17 Trailer E-Brake
*
(20 A)
18 PTG MTR 40 A
*if equipped
Inspecting and Changing Fuses
1. Turn off the vehicle, including headlights and all
accessories.
2. Remove the fuse box cover.
3. Check all fuses inside the combined fuse case in
the engine compartment. If any fuse is blown,
use a Phillips-head screwdriver to remove the
screws and replace the fuse with a new one.
Reinstall the screws.
4. Inspect the small fuses in the engine
compartment and the vehicle interior. If there is
a burned out fuse, remove it with the fuse puller
and replace it with a new one.
Replacing a fuse with one that has a higher rating greatly increases the chances
of damaging the electrical system.
Blown fuse
Combined
fuse
Fuse puller
NOTICE
Trying to lift or tow your vehicle by the bumpers will cause serious damage. The
bumpers are not designed to support the vehicle’s weight.
Improper towing such as towing behind a motorhome or other motor vehicle can
damage the transmission.
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
All models
Flat bed equipment: The operator loads your vehicle on the back of a truck. This is
the best way to transport your vehicle.
2WD models
Wheel lift equipment: The tow truck uses two pivoting arms that go under the front
tires and lift them off the ground. The rear tires remain on the ground. This is an
acceptable way to tow your vehicle.
NOTICE
