uuFusesuFuse Locations
Located under the type A driver’s side
interior fuse box. Take off the cover to
open.
Fuse locations are shown on the label on
the back side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■

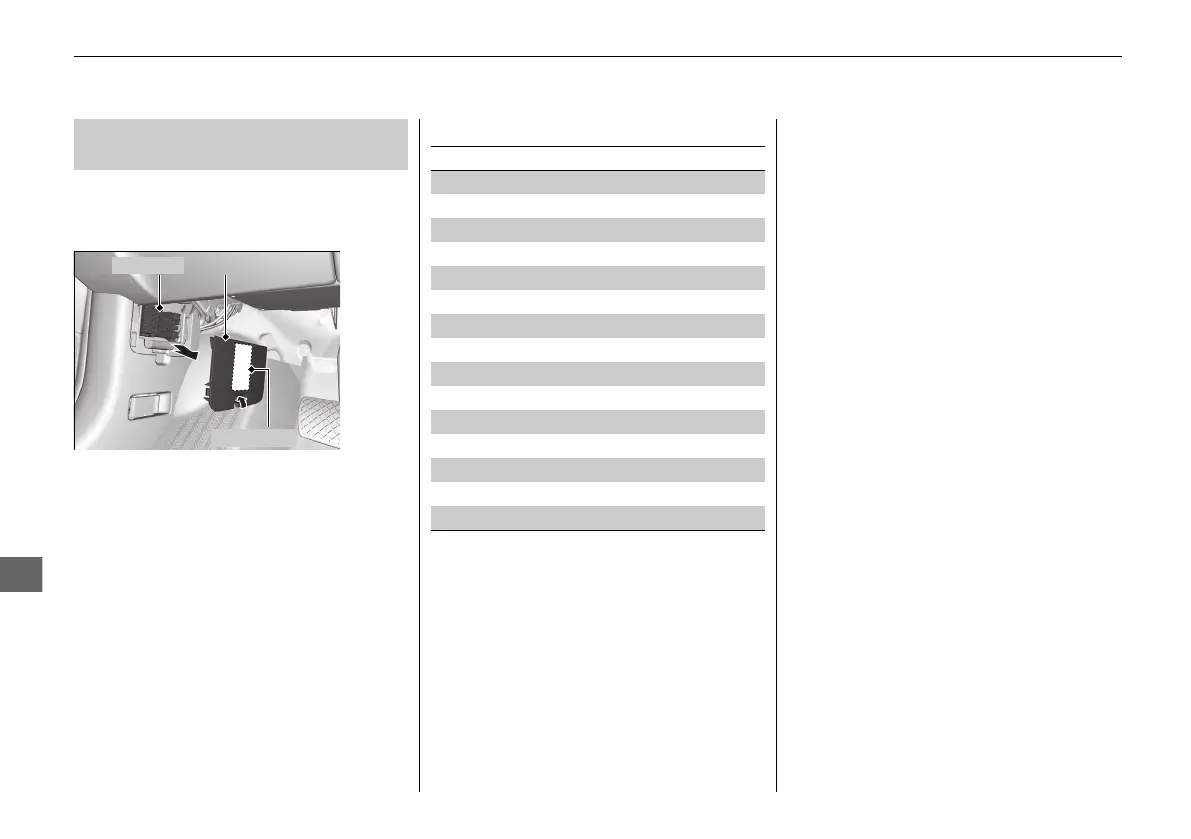

Driver’s Side Interior Fuse Box
Type B
Fuse Box Side Panel Cover
Fuse Label
■
Circuit protected and fuse rating
Circuit Protected Amps
1 VST 1 30 A
2 Horn 10 A
3 VST 2 30 A
4 − −
5 − −
6 − −
7 − −
8 − −
9 Meter 10 A
10 RES/CP/AA
*
10 A
11 MICU 7.5 A
12 EPS/VSA 7.5 A
13 Audio/TCU 7.5 A
14 Back Up 10 A
15 Audio/ANC 20 A
* Not available on all models
