667
uuFusesuFuse Locations
Continued
Handling the Unexpected

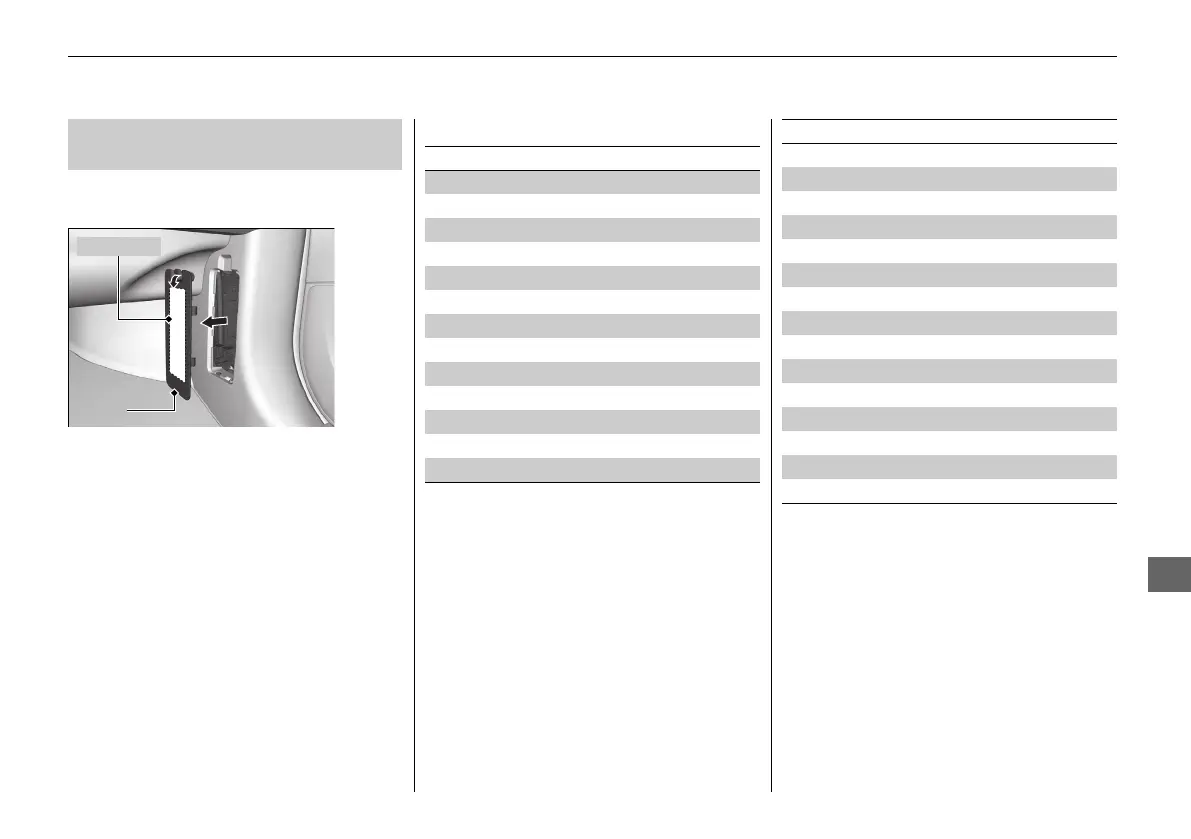

Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■
Passenger’s Side Interior Fuse
Box
Cover
Fuse Label
■
Circuit protected and fuse rating
Circuit Protected Amps
1 EPTR
*
(30 A)
2 RR AS P/W 20 A
3 ACM 20 A
4 FR DEF
*
(15 A)
5 AVS Heated Seat 20 A
6 FR AS P/W 20 A
7 AS P/Seat (SLI) 20 A
8 AS P/Seat (REC) 20 A
9 AS P/Seat (LUM) (7.5 A)
10 Spare 5 A
11 Heated Steering
*
(10 A)
12 − −
13 − −
14 RR ACC Socket 20 A
15 FR ACC Socket 20 A
16 − −
17 − −
18 AMP 30 A
19 SRS 10 A
20 AS ECU 7.5 A
21 Option 7.5 A
22 − −
23 − −
24 OPDS 7.5 A
25 ILLUMI (INT) 5 A
26 EPTL
*
(30 A)
27 CTR ACC Socket 20 A
28 AC INVTR
*
(30 A)
Circuit Protected Amps
* Not available on all models
