uuFusesuFuse Locations
Handling the Unexpected
Located on the left side of cargo area.
Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
Fuse locations are shown on the cover.
Locate the fuse in question by the fuse
number and box cover number.
■

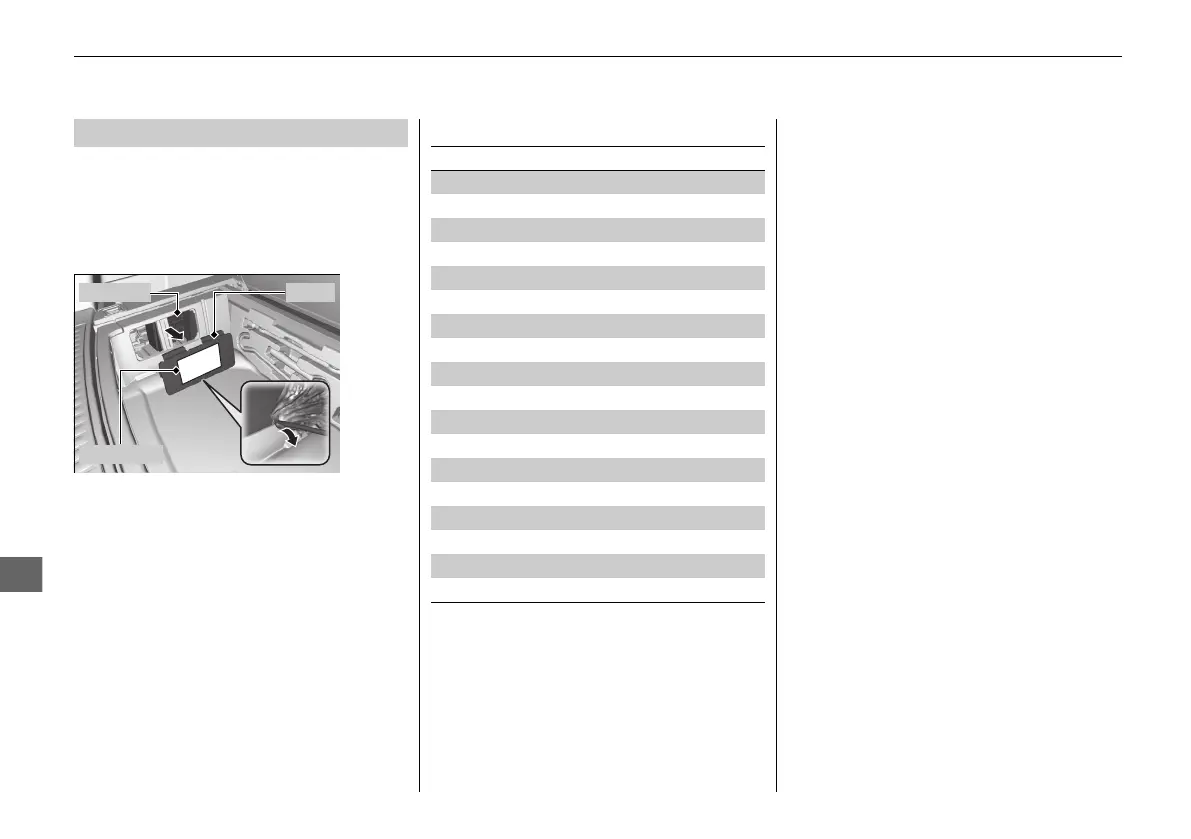

Rear Fuse Box
Fuse Label
Fuse Box Cover
■
Circuit protected and fuse rating
Circuit Protected Amps
1 PTG Closer 20 A
2 − −
3 USB CHARGE 15 A
4 Fuel Lid 7.5 A
5 Seat Slide 20 A
6 − −
7 RR Heat Seat
*
(20 A)
8 − −
9 − −
10 − −
11 − −
12 Rear Wiper 10 A
13 Rear ECU 7.5 A
14 SH-AWD
*
(20 A)
15 EPB-R 30 A
16 EPB-L 30 A
17 − −
18 PTG MTR 40 A
* Not available on all models
