Adafruit Industries STEMMA I2C User Manual

Board 3Vtosensor VIN
Board GNDtosensor GND
Board SCLtosensor SCL
Board SDAtosensor SDA
Python Computer Wiring
Since there's dozens of Linux computers/boards you can use we will show wiring for
Raspberry Pi. For other platforms, please visit the guide for CircuitPython on Linux to
see whether your platform is supported().

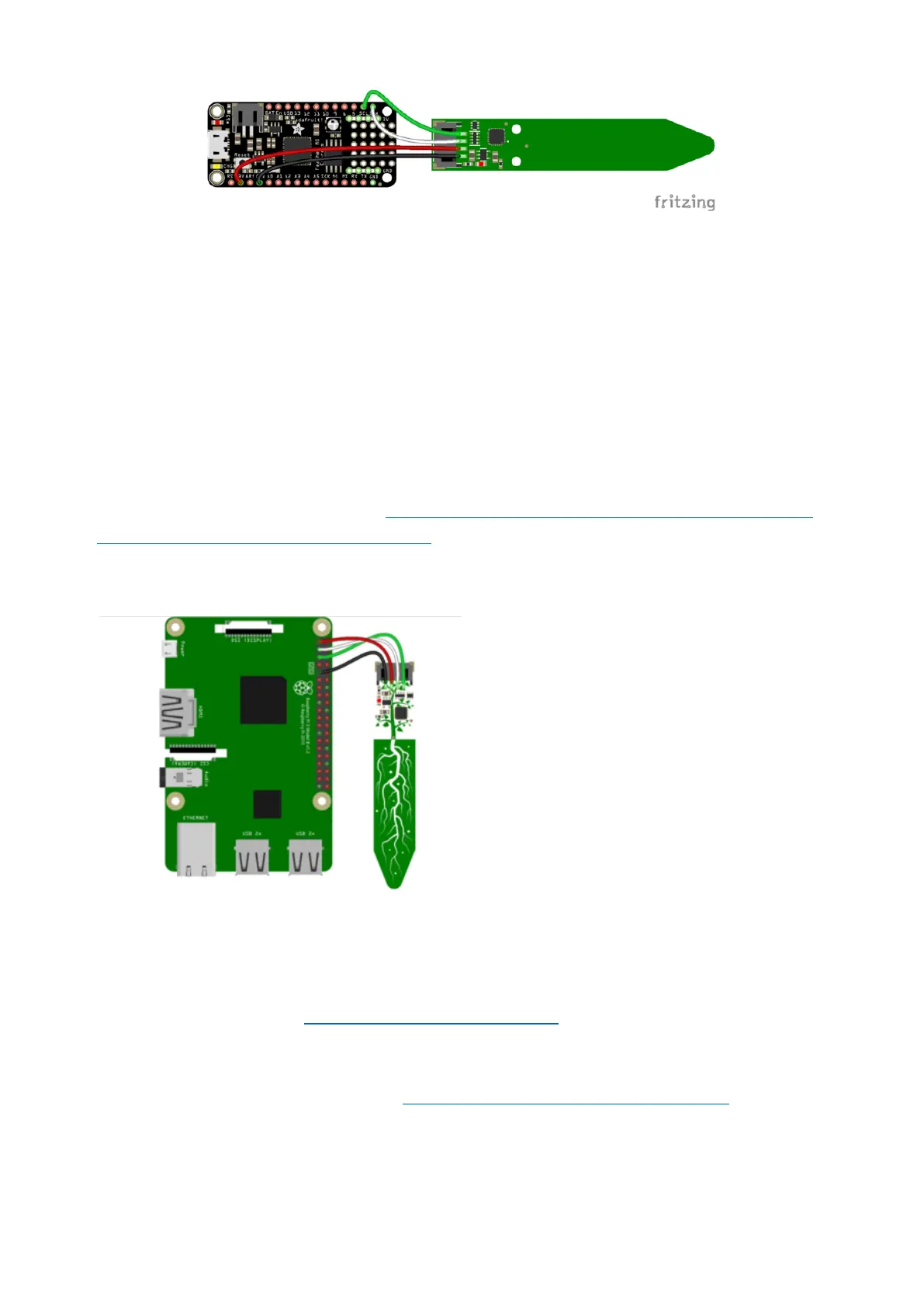

Here's the Raspberry Pi wired with I2C:
Pi 3V3 tosensor VIN
Pi GND tosensor GND
Pi SCLtosensor SCL
Pi SDA tosensor SDA
CircuitPython Installation of seesaw Library
You'll need to install theAdafruit CircuitPython seesaw() library on your CircuitPython
board.
First make sure you are running thelatest version of Adafruit CircuitPython()for your
board.
•
•
•
•
