A77X only:
The A77X has been designed for a horizontal set up. Please note that there are
two different versions, A and B (see label on the rear panel). The difference is
that the two woofers reproduce different frequency bands. While both of them
are responsible for the bass frequencies up to about 400Hz, only one of them
reproduces the midrange. This prevents interference between the two drivers. The
A speaker has the basswoofer located on the lefthand side, the B unit on the right.
In order to achieve the best stereo image it is vital to place both speakers the A/B
or the B/A way, meaning that both midrange woofers should either face the inner
side or both the outer side of the stereo setup.

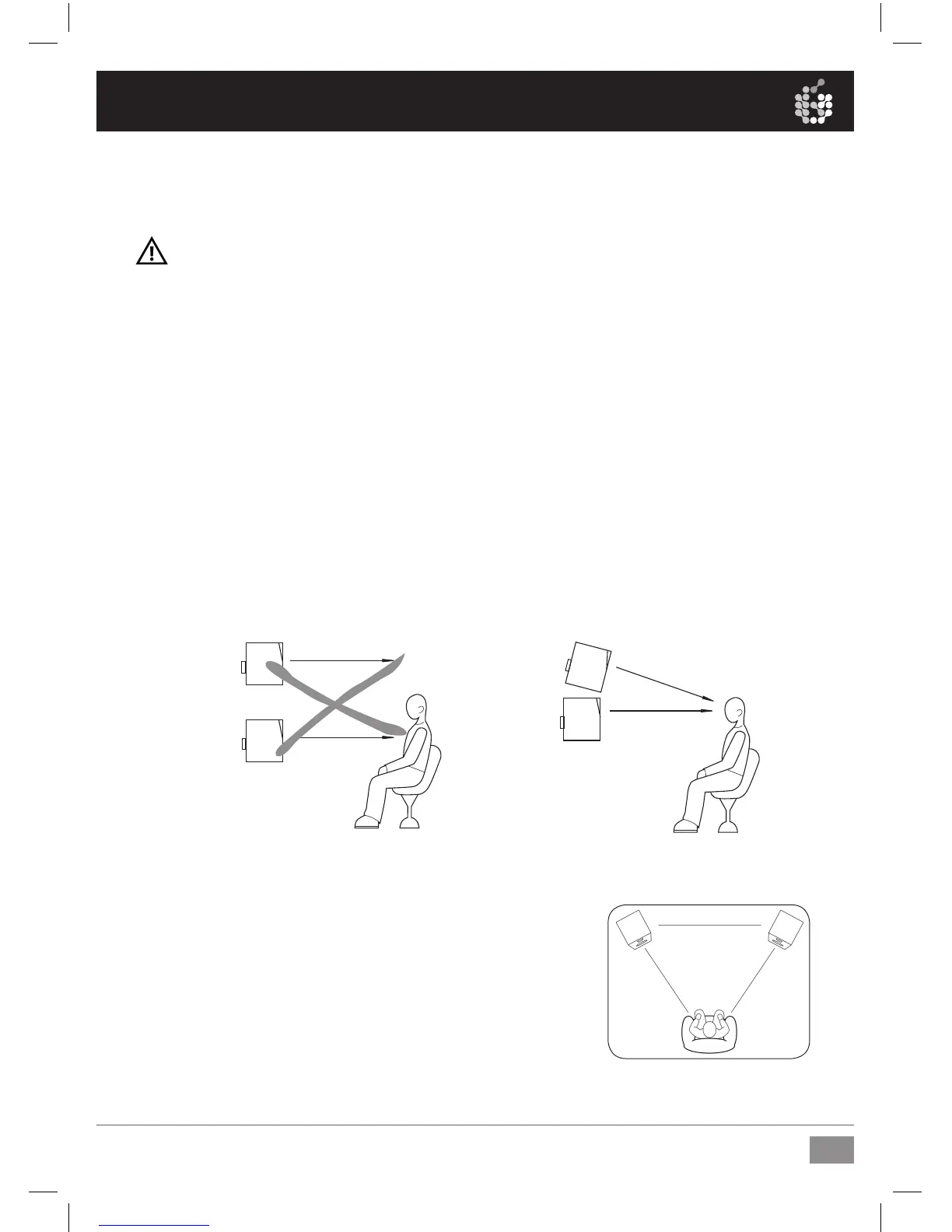

4.3 Tweeter at the height of ears
The Tweeter should be positioned approximately at the height of your ears. In
case you need to position the speaker in a significant lower or higher position, the
monitor should be angled accordingly.
4.4 The Stereo Triangle
If the loudspeaker is going to be used for stereo ap-
plications, the optimum listening position should be
at the top of an imaginary equilateral triangle with the
two loudspeakers to be placed at the other two points
of this triangle. The loudspeakers should be aligned
with the listener’s position.
