Adam A8X User Manual

9
English
3. Speaker Placement
Surround Placement
Speaker positioning for multi-channel stereo purposes is ideally based on
a circle with speakers placed at 0° (Center), 30° (Front Right), 110° (Rear
Right), 250° (Rear Left), 330° (Front Left), with the listener being the circle’s
center (Radius between 0.7-2.0 m). This ITU recommended configuration may
vary depending on the purpose of the control room (music or film). However,
it is recommended to create a symmetrical listening position with the front
side and surround speaker pointing to the listener’s ear.
The distance to the surrounding walls should be at least 40 cm to avoid early
reflections, which can degrade the sound.

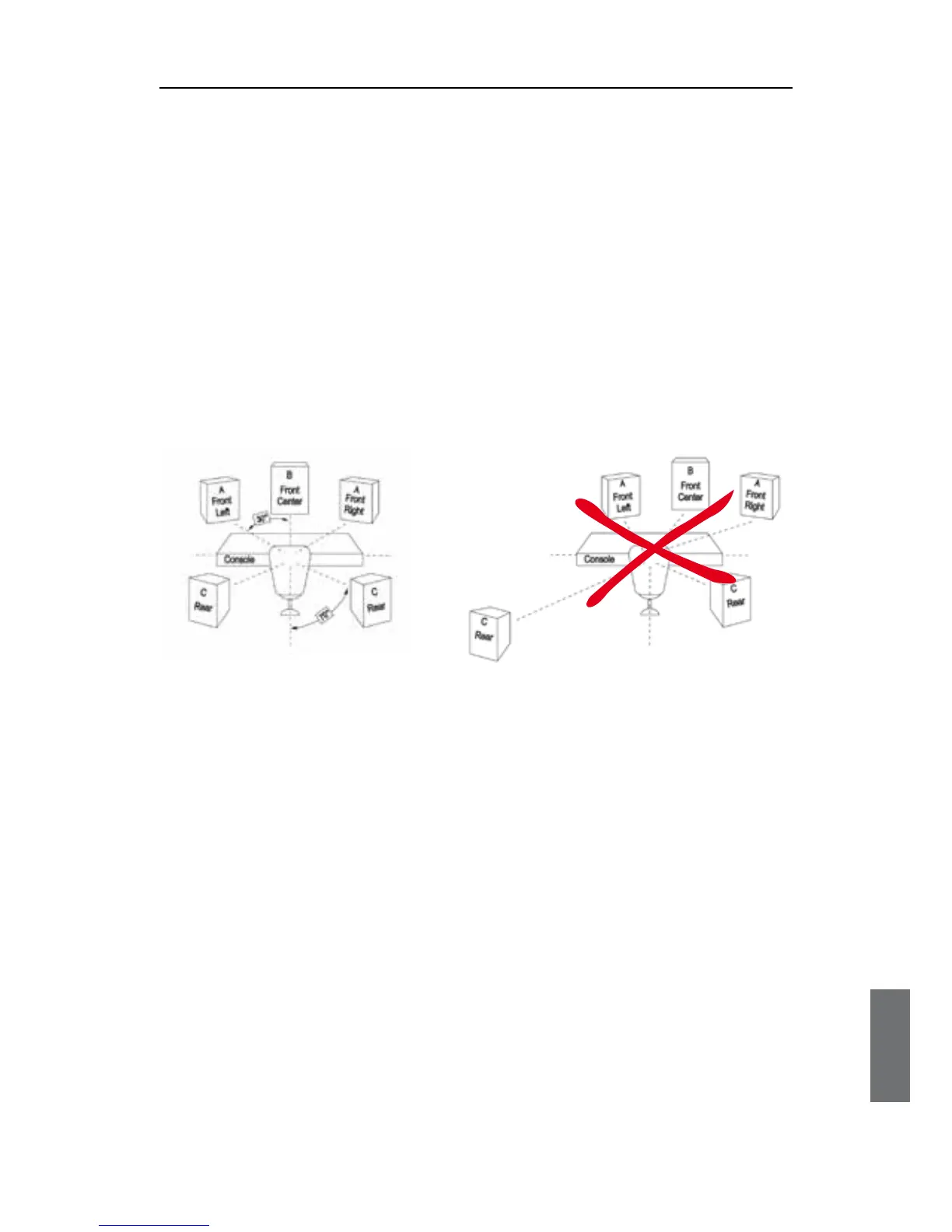

fig 5: Surround set up
3.5

Adam A8X Specifications

General

Frequency Response	38 Hz - 50 kHz
Amplifier Power Tweeter	50 W
Type	Active Studio Monitor
Input Connectors	XLR
Input Impedance	10 kΩ
Tweeter Type	X-ART tweeter
Amplifier Power Woofer	150 W (RMS)
