5.6 Electrical Connection
The Adande
®
drawer unit should be connected to a 230V, single phase, 50 Hz, standard
socket outlet supply. The unit is connected to the mains supply with a detachable supply
lead, one end of which is fitted with a standard 13 amp 3 pin plug (fused at 13A). The
other end of the supply lead, fitted with an appliance plug, is connected to the Adande
®
unit as shown in figure 3a below.

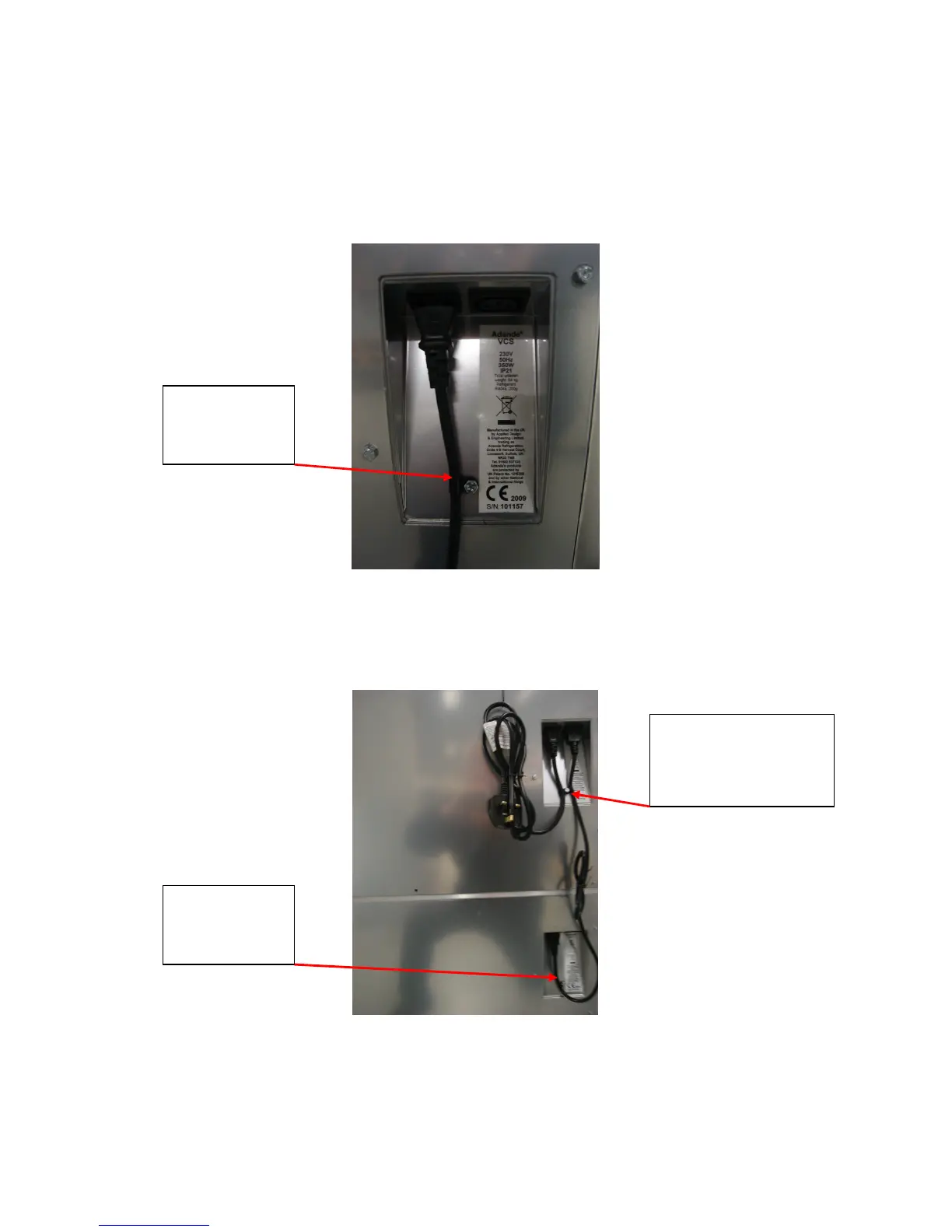

Figure 3a: Mains connection point
The unused socket on the right hand side in figure 3a can be used to provide a mains
supply to additional Adande
®
units as shown in figure 3b below.
Figure 3b: Mains connection point
DO NOT REMOVE ACCESS PANELS WITH THE ELECTRICAL SUPPLYCONNECTED.
Single ‘P’clip
for retaining
mains cable
2 off ‘P’ clips for
retaining mains
cable and link cable
to other unit
Single ‘P’clip
for retaining
mains cable
ADE- 2015-B Page 8
