1) "FAN" (Blower) L.E.D. indicator
2) "FOR" (Forward) output L.E.D. indicator
3) "Rev" (Reverse) output L.E.D. indicator
4) "Air" (Air Jet) output L.E.D. indicator
5) "HT 1" (Heat) output L.E.D. indicator
6) "Fuse" (Main Fuse) input L.E.D. indicator
7) "Lint" (Lint Door) input L.E.D. indicator
8) "Main" (Main Door) input L.E.D. indicator
9) "Drum" (Tumbler Hi-Limit) input L.E.D. indicator
10) "Sail" (Sail Switch) input L.E.D. indicator
11) "Burn" (Burner Hi-Limit) input L.E.D. indicator
12) "Flame" (Burner Control Failure) input L.E.D. indicator
13) "Power Supply"

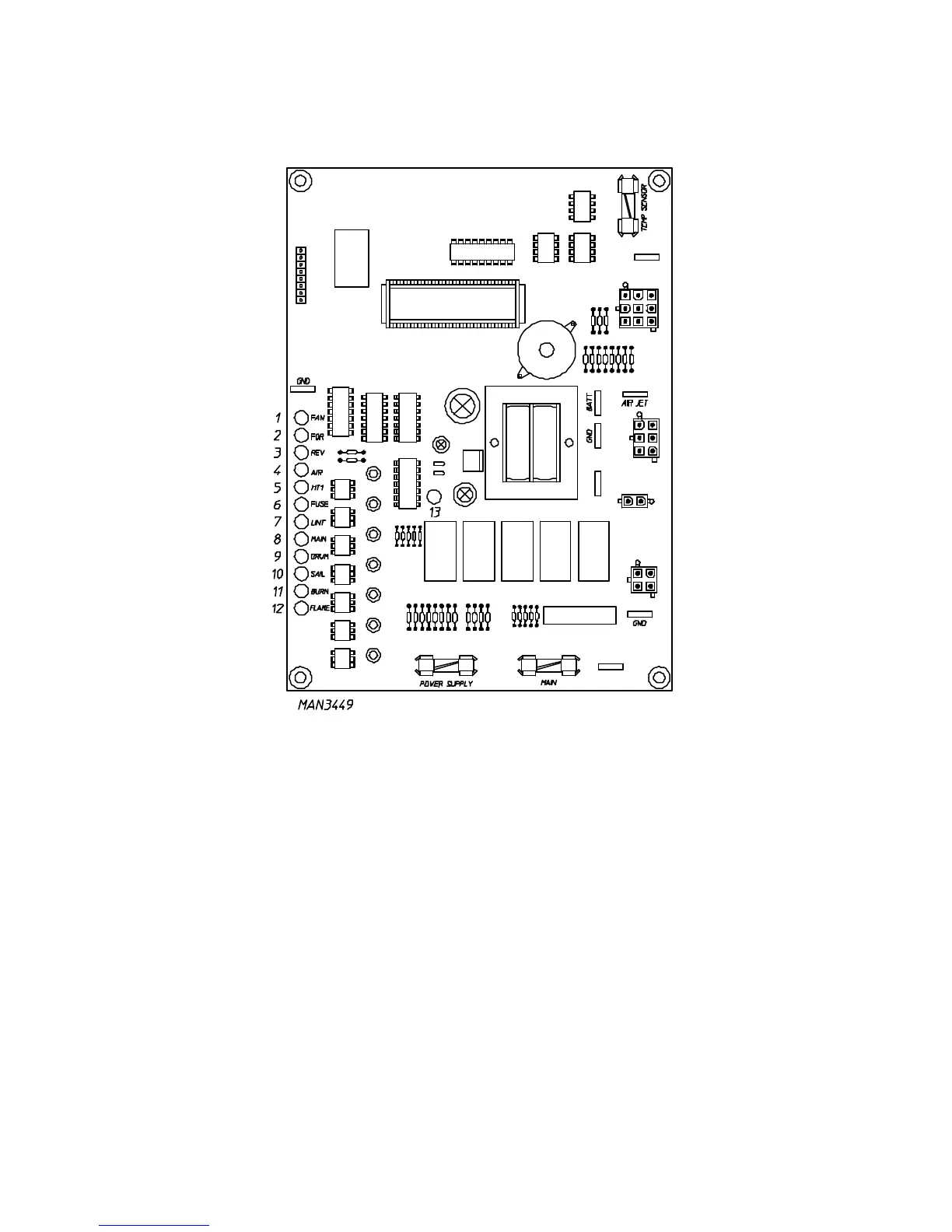

d. Verify that the motor(s) heat, and door indicator lights on the back side of the microprocessor
(computer) board are lit. (Refer to the illustration below.)
