Adcom GFA-7705 User Manual

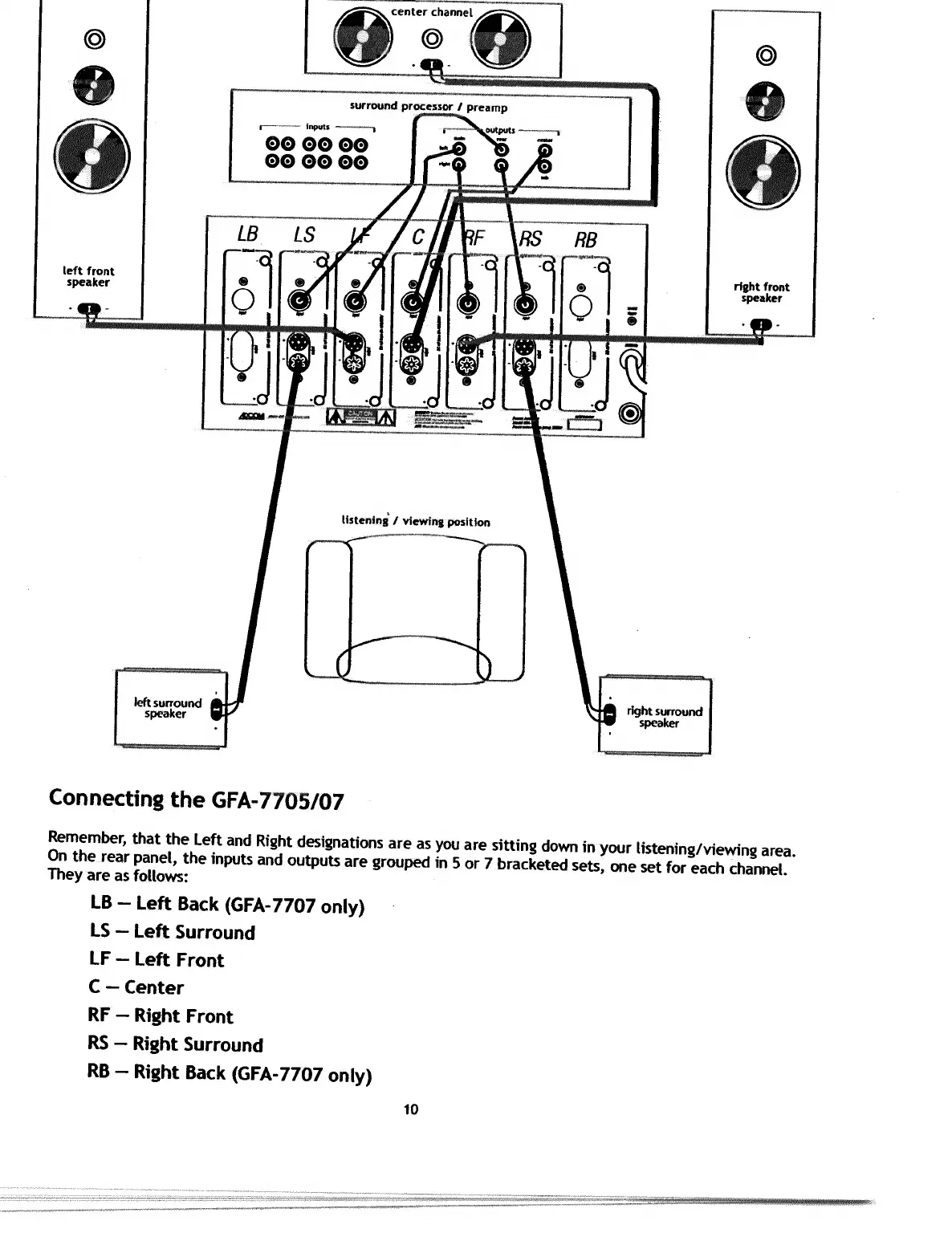

Connecting the GFA-7705/07
Remember, that the Left and Right designations are as you are sitting down in your listening/viewing area
Theyareas fdSs ”*** and ° UtpUtS are gr ° Uped in 5 or 7 bracketed sets, one set for each channel.'
LB - Left Back (GFA-7707 only)
LS — Left Surround
LF — Left Front
C — Center
RF — Right Front
RS — Right Surround
RB - Right Back (GFA-7707 only)

Adcom GFA-7705 Specifications

Power

power rating into 8 ohms	200 Watts continuous average power per channel
power rating into 4 ohms	300 Watts continuous average power per channel
power consumption idle 7 channel	120W

Audio Performance

frequency response at 1 watt into 8 ohms	+0, -0.22dB
power bandwidth	3 Hz to 130kHz
dynamic headroom into 4 ohms	1.90 dB

Electrical Specifications

input sensitivity for 1 watt output	0.1 volts
input sensitivity for 200 watts output	1.40 volts
damping factor (20Hz to 20kHz)	800

Dimensions and Weight

chassis dimensions	8.5” (216mm) x 17” (432mm) x 17.5” (444.5mm)
maximum dimensions	9 3/8” (238mm) x 17” (432mm) x 18.5” (470mm)
unit weight GFA-7707	35.5 kg
