With electrical box
Wall or Post Mounting

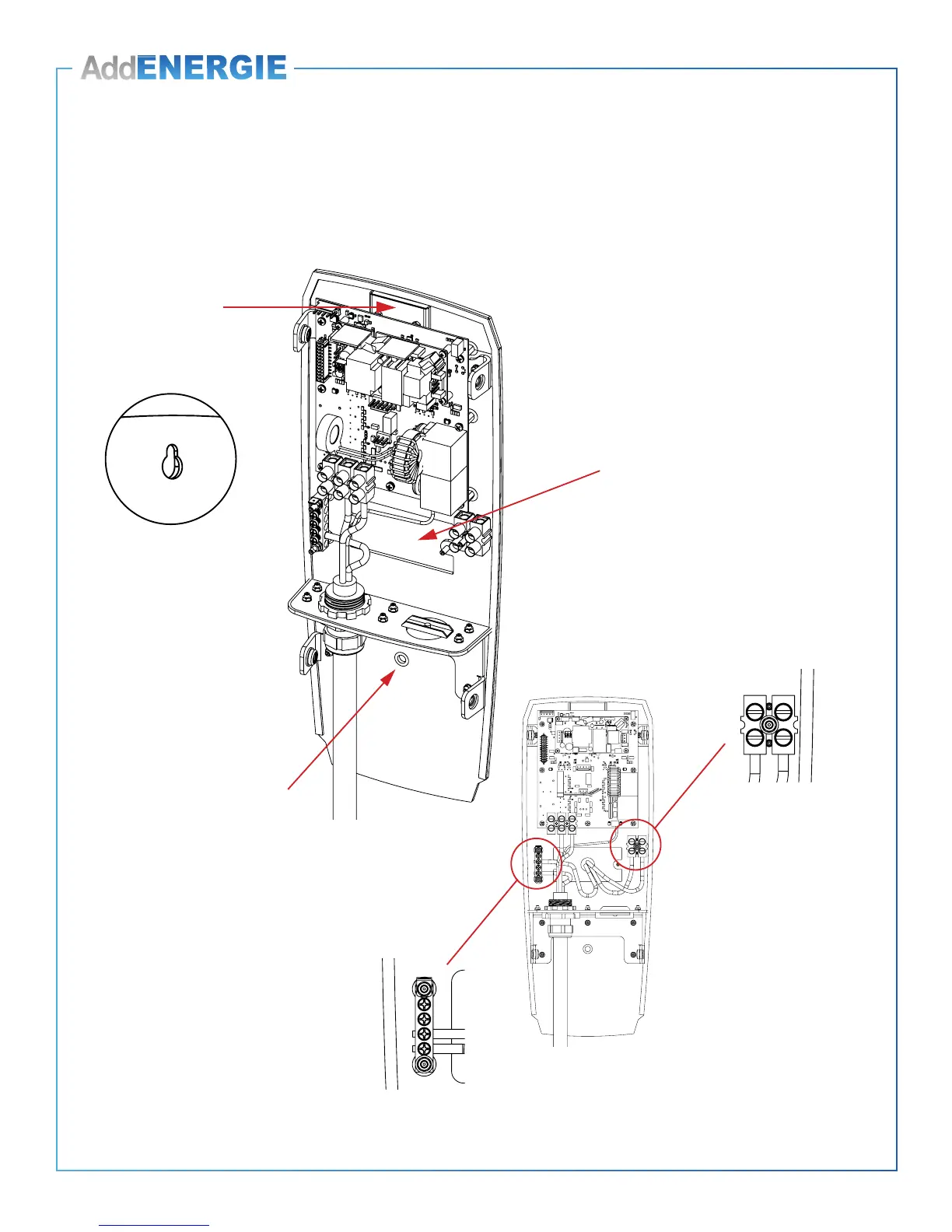

• Remove the backplate.
• Install the head base in order to align
the rectangular opening with the box
opening in the wall or the post.
• IMPORTANT, never
remove the protection
plate of the keyhole.
• Connect two power
conductors (L1 and
L2) and the ground
conductor (GND)
• The grounding
conductor shall be
provided with green
or green and yellow
insulation.
L1 L2
GND
• Attach the head base
to the wall or the post
with appropriate type of
anchors
• Hang the head base to an
anchor (previously xed
to the wall or post) via
the keyhole at the top.
NEVER REMOVE THE
PROTECTION PLATE
• Complete the mounting of
the head base by installing
an anchor through the
bottom hole.
