8 Technical Specifications Edge RT7020 Enterprise

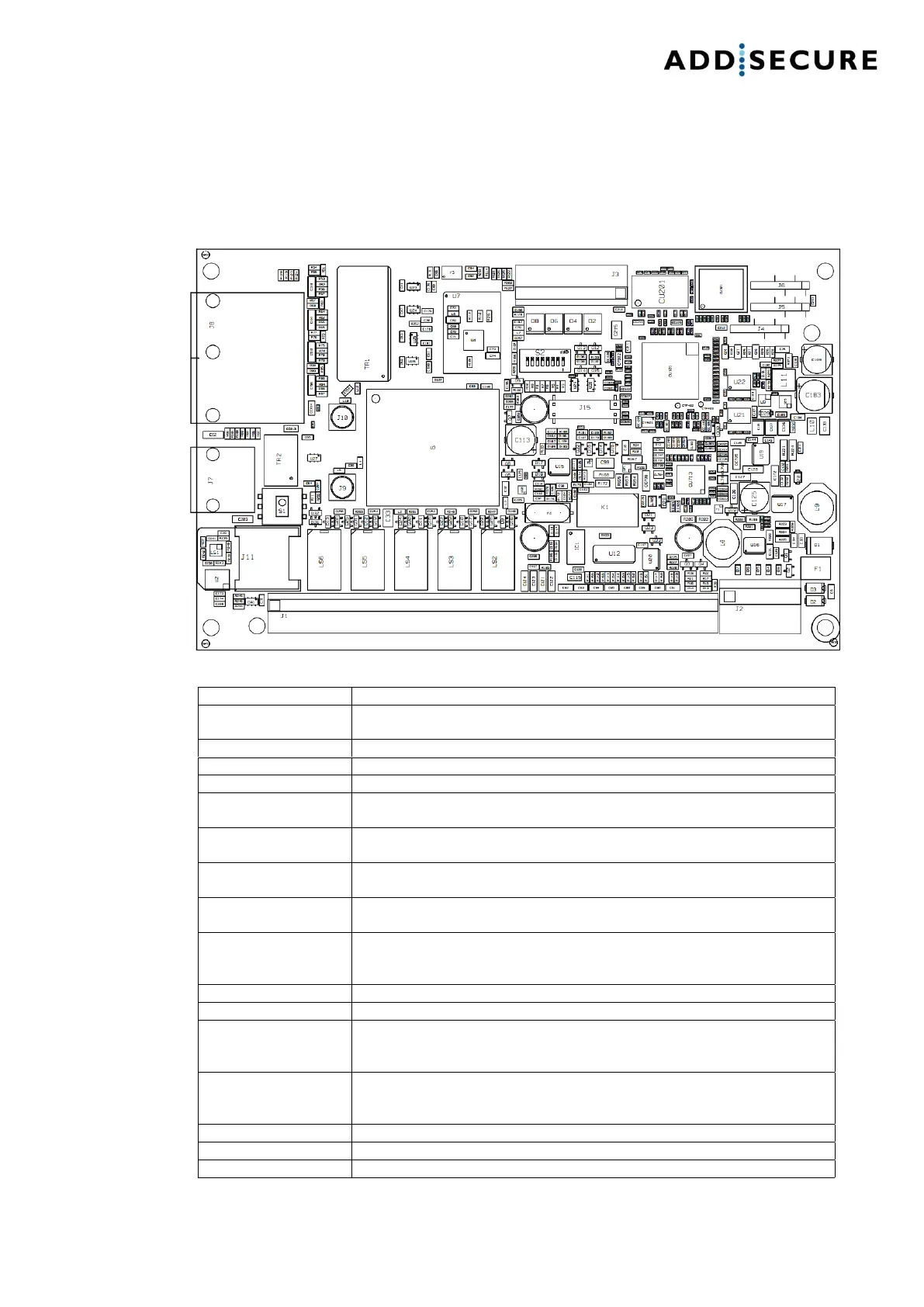

8.1 Connections
Connection
Function
LINE
Simulated telephone line for connecting of analogue dialer. Designed for a local
direct connection, i.e. not for connections between buildings.
D+ D-
RS-485 interface for communication to/from external equipment.
T C
T: For connecting external tamper (if such is present) C: Common (GND)
REL5
Normally open. Indicates a successful transmission of IN1 to ARC by closing for 2s
REL4
Normally open. Indicates an unsuccessful transmission of IN1 to ARC by closing
for 2s
REL3
Normally closed. Is held open if alarm transmission has failed or if it is not
possible to perform via the radio interface.
REL2
Normally closed. Is held open if alarm transmission has failed or if it is not
possible to perform via Ethernet.
REL1
Normally closed. Is held open during system fault. Meaning when an alarm can’t
be delivered to the ARC neither by the radio or the Ethernet interface
IN1-IN8
Alarm inputs 1-8. Activated by potential free closing or opening from system
ground (C) and/or tamper, depending on how the inputs have been configured
during programming.
C
System ground (GND)
O1-O4
Remotely controllable potential free outputs. Max current: 100mA per output
BAT+ -
Connection for auxiliary power source, max 11-30 VDC. To be fused with an
external fuse 1A and labelled with what part of the unit that becomes unpowered
when removing the fuse.
PWR+ -
Connection for primary power source, max 11-30 VDC. To be fused with an
external fuse 1A and labelled with what part of the unit that becomes unpowered
when removing the fuse
J7
WAN-connector, connection to local network
J8
LAN-connectors, for connecting local IP equipment
J6
RS-232 interface for communication from external system.
