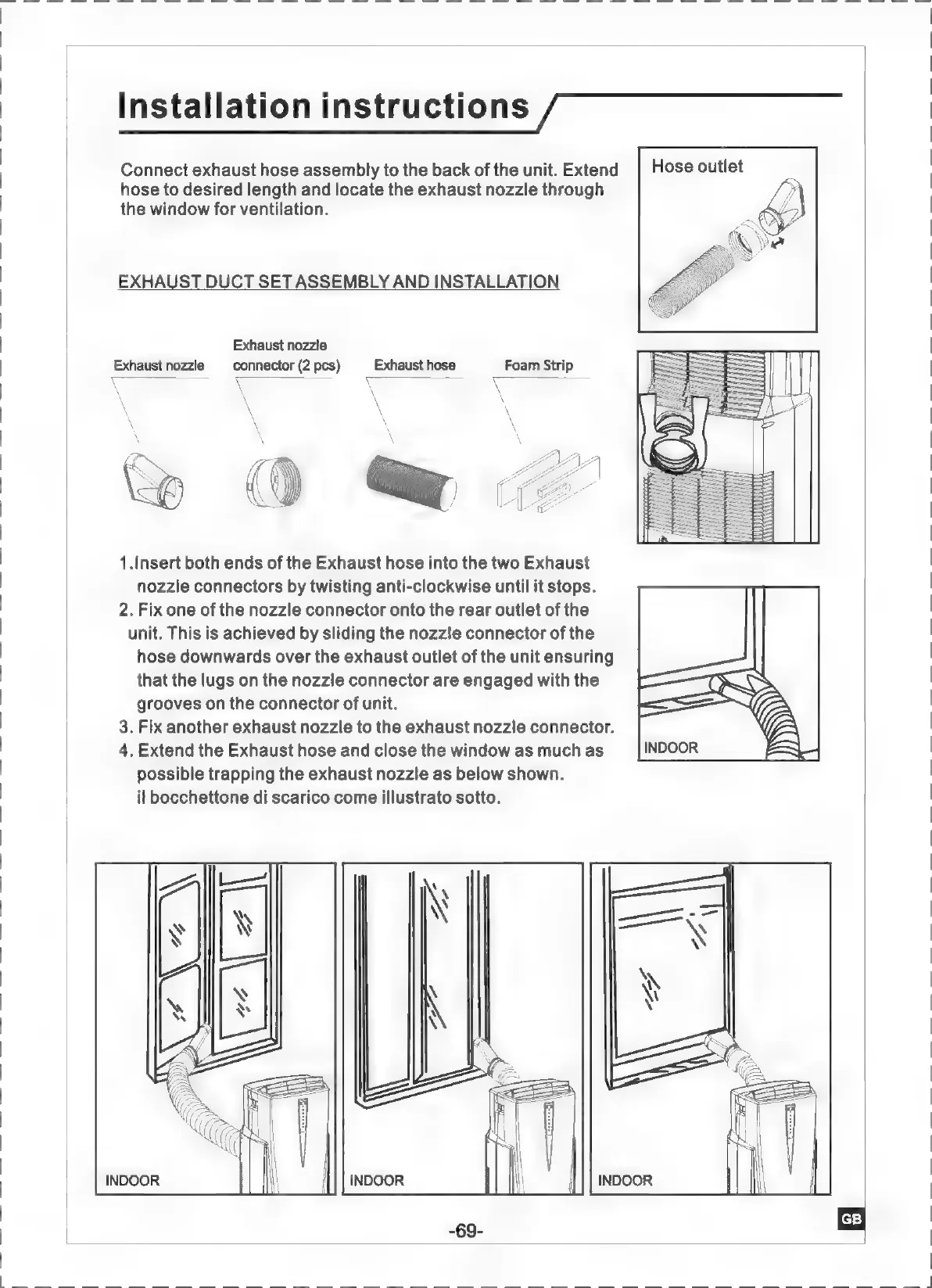

Connect exhaust hose assembly to the back of the unit. Extend
hose to desired length and locate the exhaust nozzle through
the window for ventilation.
EXHAUST DUCT SETASSEMBLY AND INSTALLATION
Exhaust nozzle
Exhaust nozzle connector (2 pcs) Exhaust hose Foam Strip
==
\
\
\
\
\
a i
o TR
= i)
` a)
1.Insert both ends of the Exhaust hose into the two Exhaust
nozzle connectors by twisting anti-clockwise until it stops.
2. Fix one of the nozzle connector onto the rear outlet ofthe
unit. This is achieved by sliding the nozzle connector ofthe
hose downwards over the exhaust outlet of the unit ensuring
that the lugs on the nozzle connector are engaged with the
grooves on the connector of unit.
3. Fix another exhaust nozzle to the exhaust nozzle connector.
4. Extend the Exhaust hose and close the window as much as
possible trapping the exhaust nozzle as below shown.
il bocchettone di scarico come illustrato sotto.
I τῇ AT
AMM
INDOOR i INDOOR | | || | | INDOOR
