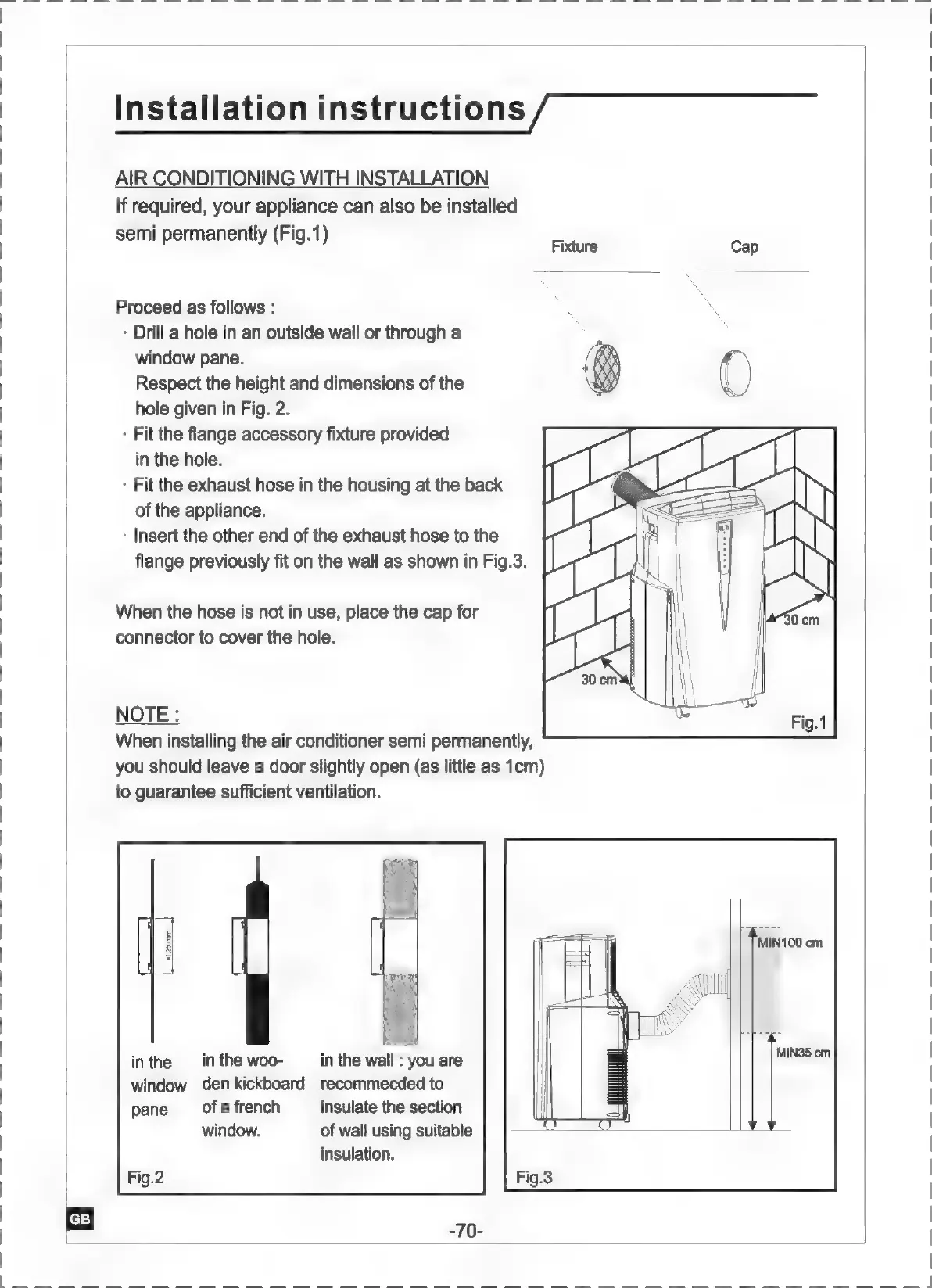

Installation
instructions
AIR
CONDITIONING
WITH
INSTALLATION
If
required,
your
appliance
can
also
be
installed
semi
permanently
(Fig.1)
Fixture
Cap
Proceed
as
follows
:
*
Drill
a
hole
in
an
outside
wall
or
through
a
window
pane.
Respect
the
height
and
dimensions
of
the
hole
given
in
Fig.
2.
-
Fit
the
flange
accessory
fixture
provided
in
the
hole.
*
Fit
the
exhaust
hose
in
the
housing
at
the
back
of
the
appliance.
*
Insert
the
other
end
of
the
exhaust
hose
to
the
flange
previously
fit
on
the
wall
as
shown
in
Fig.3.
When
the
hose
is
not
in
use,
place
the
cap
for
connector
to
cover
the
hole.
NOTE
:
When
installing
the
air
conditioner
semi
permanently,
you
should
leave
a
door
slightly
open
(as
little
as
1cm)
to
guarantee
sufficient
ventilation.
inthe
in
the
woo-
in
the
wall
:
you
are
window
den
kickboard
recommecded
to
pane
of
a
french
insulate
the
section
MIN100
cm
MIN35
cm
window.
of
wall
using
suitable
insulation.
Fig.2
