SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, EtherCAT and
PROFINET.
By Pressing the “Set Communication” button from the main window for SW67E23 (Fig. 2)
the window “Set Communication” appears (Fig. 3).
The means of the fields for “EtherCAT Slave” are:
In the field “Revision Number” the revision number of the converter is defined;
In the field “Slave Name” the name of the converter is defined;
In the field “Node Address” the ID of the converter is defined.
The means of the fields for “PROFINET” are:
In the fields “IP Address” the IP address for PROFINET side of the converter is
defined;
In the fields “SubNet Mask” the SubNet Mask for PROFINET side of the converter is
defined;
In the fields “Gateway” the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of
the net;
In the field “Tunneling Port” the port to use for the “Tunneling mode” is defined;
In the field "Name of Station" the name of PROFINET side of the converter is
defined;
In the field "Number Bytes Input" the number of byte from the PROFINET Master
to the converter is defined (it is possible to use up to 1439 byte);
In the field "Number Bytes Output " the number of byte from the converter to the
PROFINET Master is defined (it is possible to use up to 1439 byte).

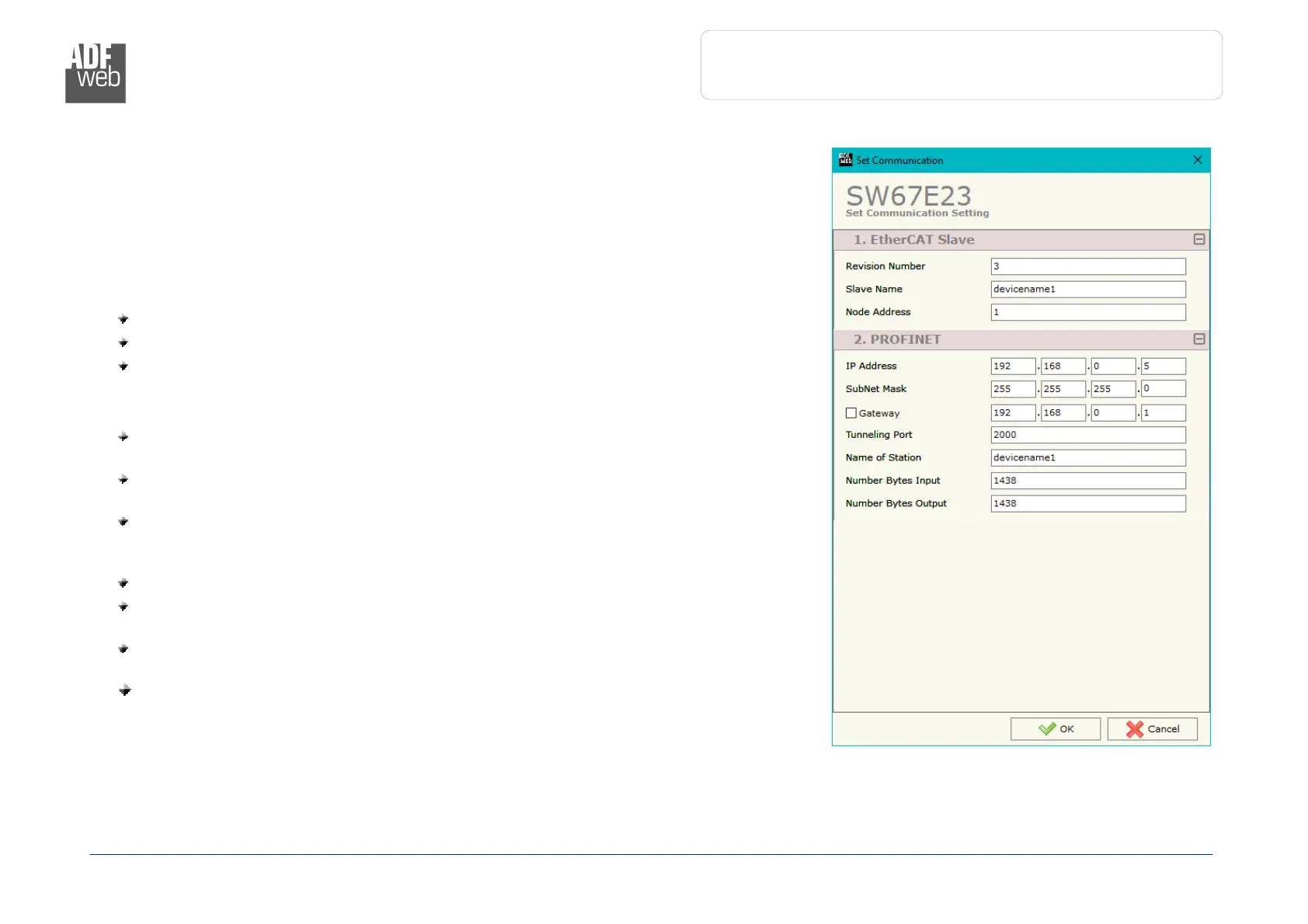

Figure 3: “Set Communication” window
