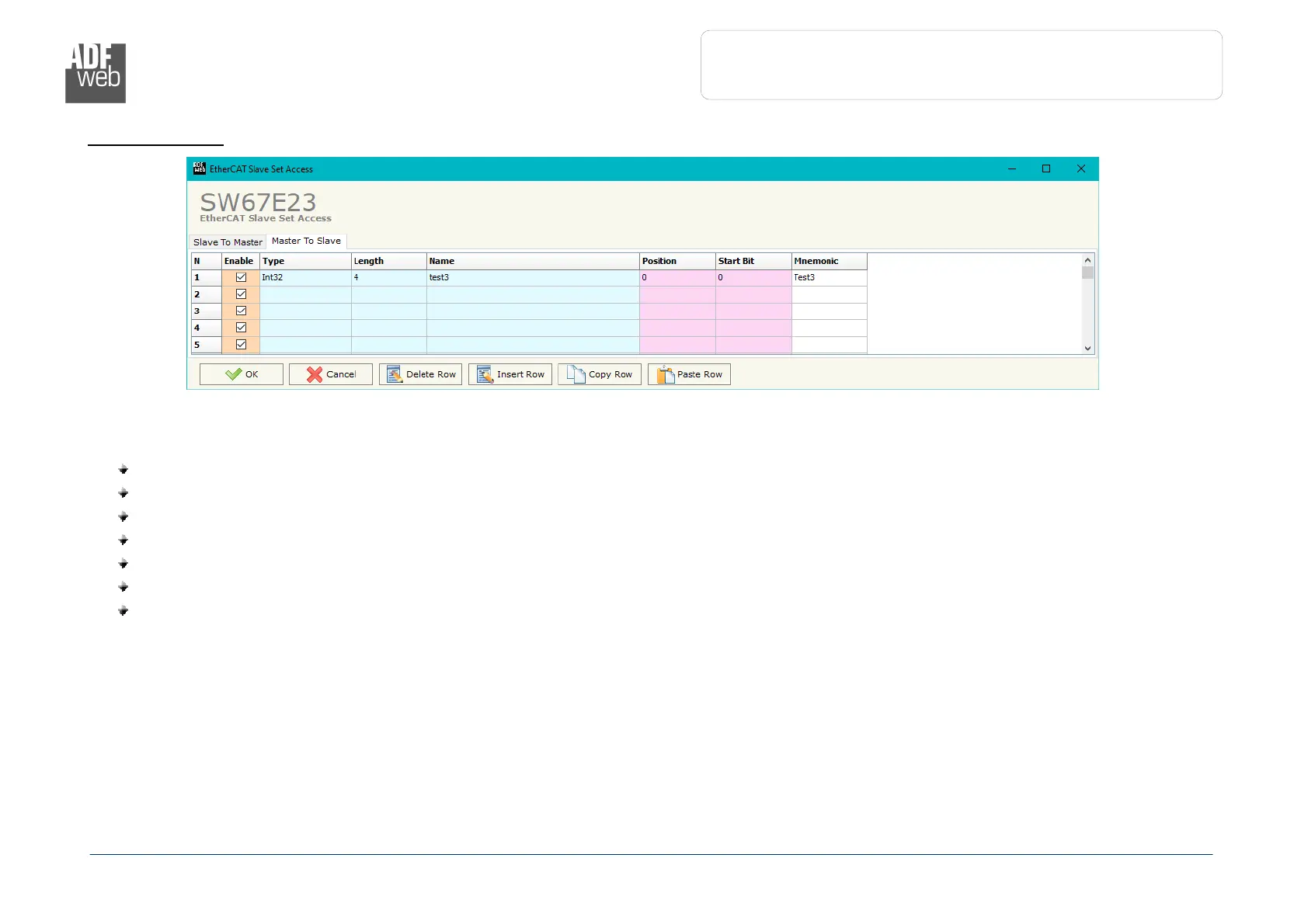

Figure 4b: “EtherCAT Slave Set Access

Master To Slave” window
M ASTER T O S LAVE
The means of the fields are:
If the field “Enable” is checked, the EtherCAT variable is enabled;
In the field “Type” the data format of the EtherCAT variable is defined;
In the field “Lenght” the dimension of the EtherCAT variable is defined;
In the field “Name” the name of the EtherCAT variable is defined;
In the field “Position” the starting address of the EtherCAT array where the variable is mapped is defined;
In the field “Start Bit” the starting bit of the selected Position where the variable is mapped is defined;
In the field “Mnemonic” a description of the variable is defined.
