5. Install the Fan
The controller must be positioned away from vents or the heat source, where it won’t get
too hot. A minimum of 200mm from either side of the firebox. Do not place above the
firebox.

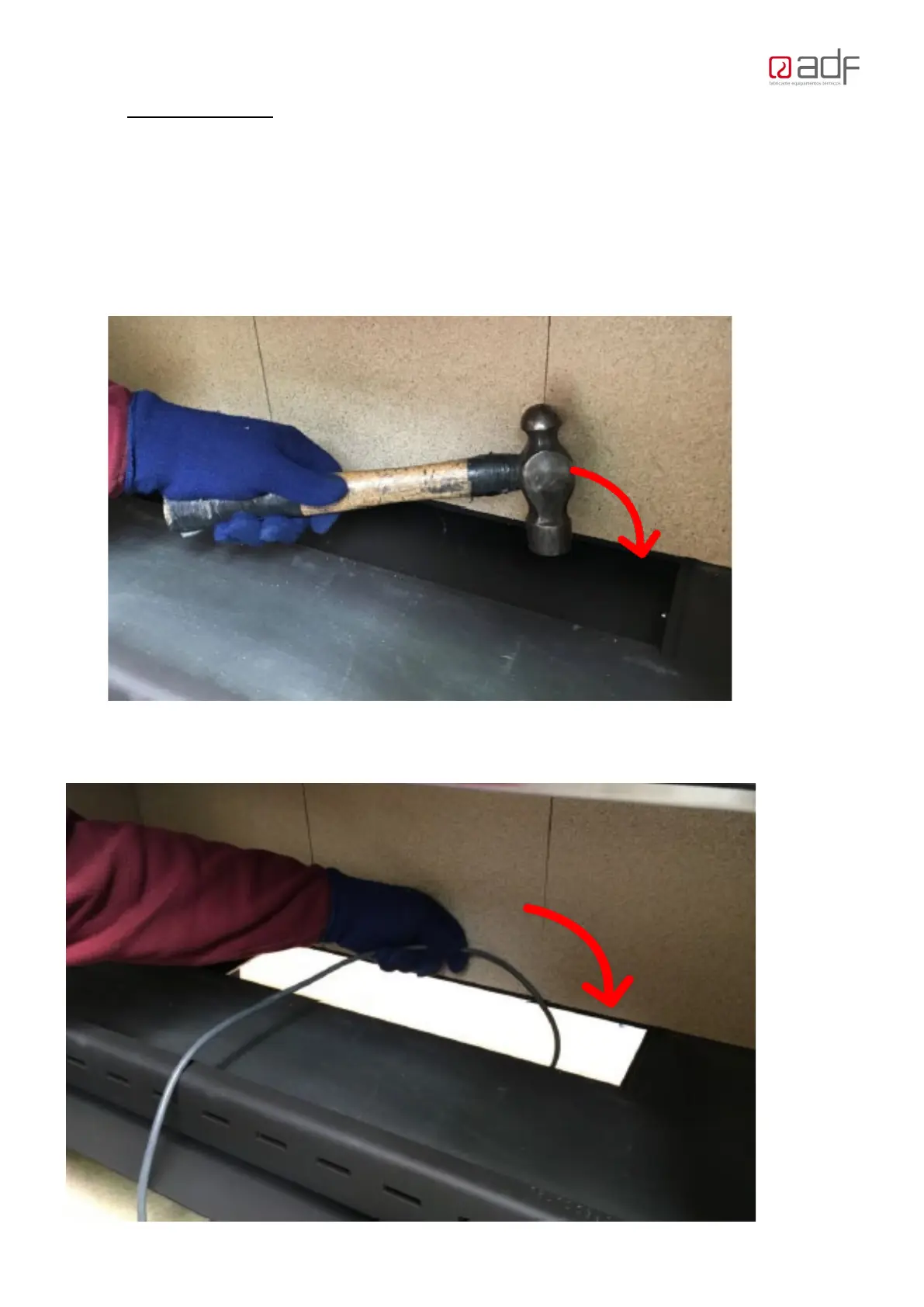

Remove the bottom plate from the outer body, by tapping with a hammer to break the
perforation ties.
Once the heater is installed in correct position, pass the electrical cable for the controller
and the 240V connection through the fan cut out.
