6. Fitting the Thermostat.

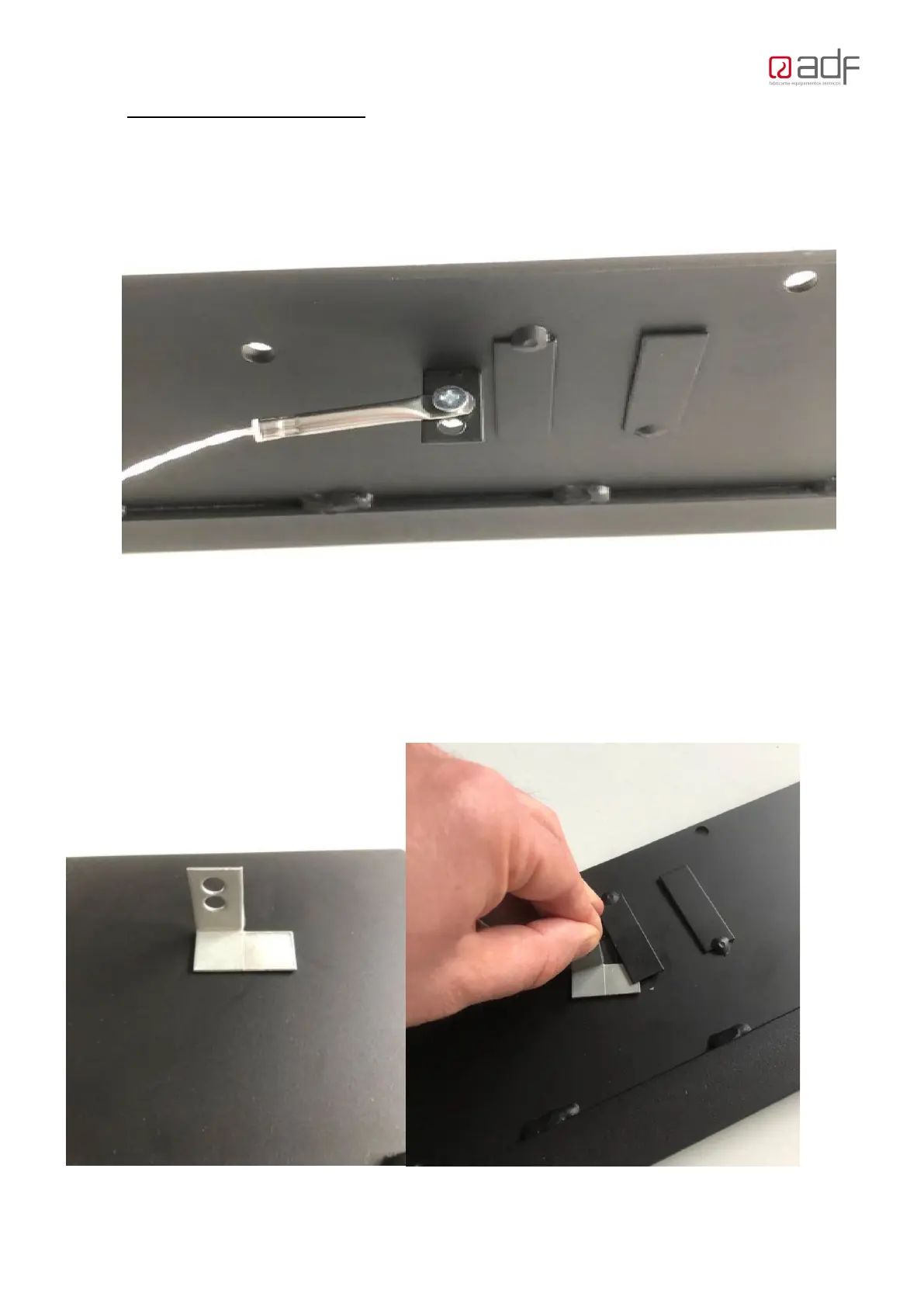

Fit the thermostat to the underside of the Fan access cover. This is for Versions

MANUFACTURED from February 2020 with the Tab like below fixed to the bottom of the

firebox plate. Use the hole closest to the heater.

For appliances built before February 2020, use the supplied adaptor bracket, to fix below

the Thermostat tabs on the underside of the firebox, and fit the thermocouple wire to the

adaptor bracket.
