Installation Instructions

Warning

Danger of Electrocution: All electrical work must be carried out by a qualified electrician.

Note: All electrical components should be installed in an airy location away from hot parts.

Make sure that the Main Power Supply is OFF prior to installing the device.

1. Install a GPO General power outlet for the fan to plug into, so the power to the

fan can be switched off if required for maintenance.

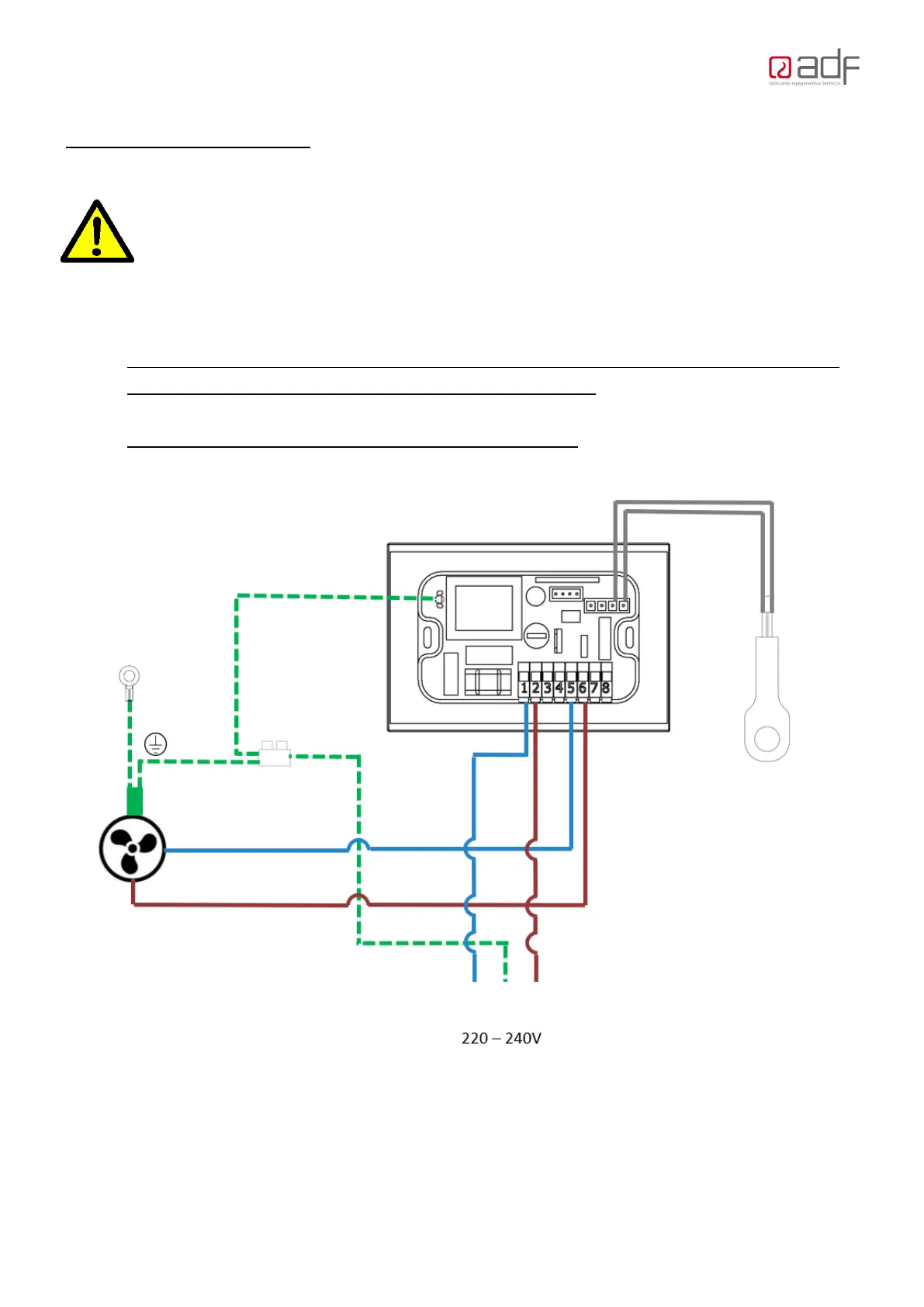

2. Electric circuit layout for Wall Mounted Controller

1 A

nd 5 Wires – BLUE

2 And 6 Wires – BROWN

Dotted E wires = Earth

Ph/A

Main Page

Control Panel, Use and Functions3
1.2 OFF mode: the ON/OFF Button will be lit up only.3
1.3 Turn ON: Press the ON button for 3 seconds3
1.4 To change the Setting: Hold the Menu key for 3 Seconds, then scroll to the required setting: Manual Display = “NAnu”; Adjust the Fan speed using the Scroll buttons. From P02 to P08. To turn down to select P0. Auto Display = “Auto; The fan wi...3
2. To go into the Main Menu, hold the Menu button for 3 seconds. Press the Menu button to scroll through setting options. Press the UP and DOWN to change the value. Press the MENU button to save the new setting. Wait 10 seconds or Press the ON bu...4
3. Safety Function: In Manual mode, if the Thermostat reaches 100 C, the Fan will switch to the Proportional mode to prevent electricals from overheating. If the fan is OFF, and the Thermostat reaches 100 to 120 C (E02 to E03), the Fan will switch ON...4
4. Alarm Function: If the Thermostat reaches 120 C (E03), an audible and visual alarm will sound/flash. Press any key to turn alarm off for every 5mins until temp drops below 120 C. To turn off Alarm function change P05 setting (see page 16 ).4
5. Fan Safety cut off: If the thermostat reaches 135 C (E04), the Fan will cut off to avoid Damage to itself.4
6. Thermostat Temperature Display: By pressing the MENU button once, the 2nd Thermostat Temp will display (If fitted). To exit press the ON button. Note: If Thermostat temp is below Minimum, it will display Lo.4
If Thermostat temp is above Maximum, it will display Hi.4
 Note the fan comes with the heat resistant silicon cables that must be used for wiring through the heater enclosure area. The cabling and plug for the 240V mains supply to the controller: The 3 pin plug is not connected, if a longer cable is requir...6
Remove ash retainer by lifting it upward slightly to clear the base brick, then rotating it forward (below) and finally pulling out diagonally by lifting one side higher and out.9
