ADF NMV Series - Page 10

10
1.Chimney Build Out Install:
The build out is constructed with Skamotec 225 40mm sheets to Skamotec specifications, the

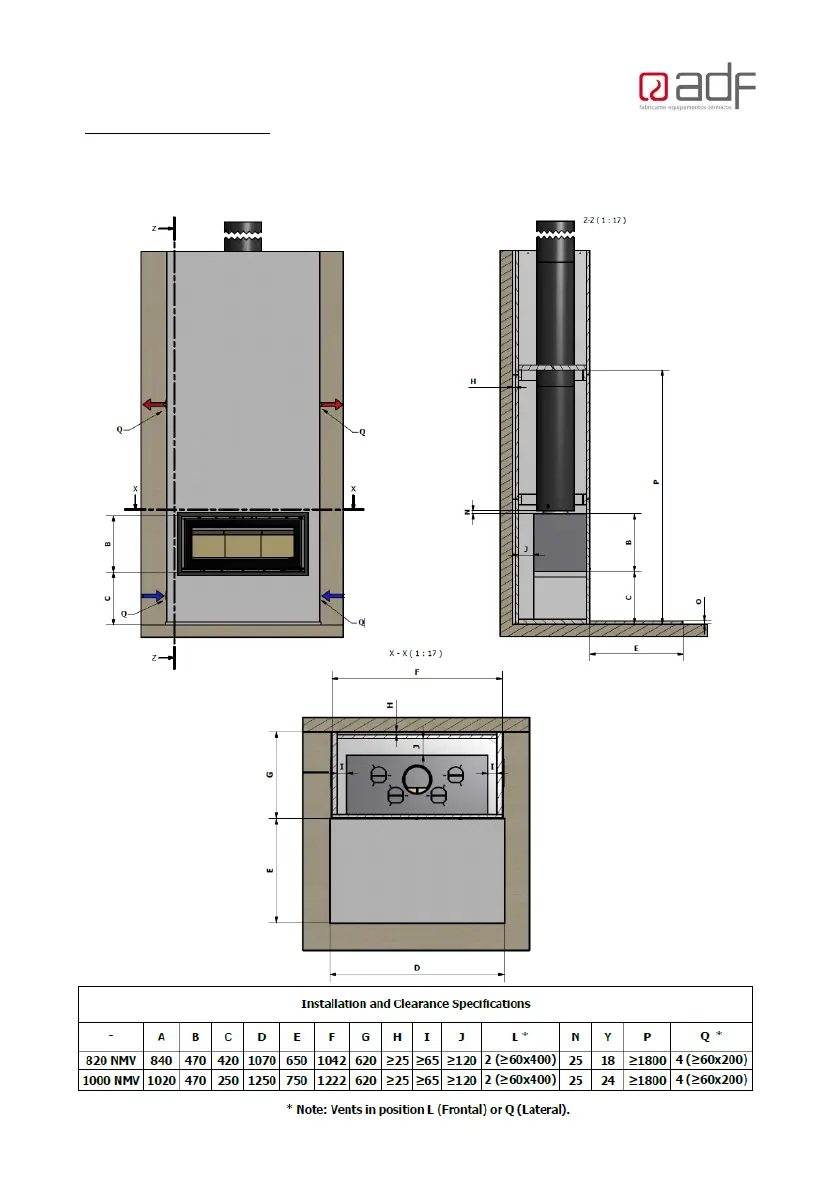

Installation and Clearance specifications are included in the Elevation drawings shown below:
