5

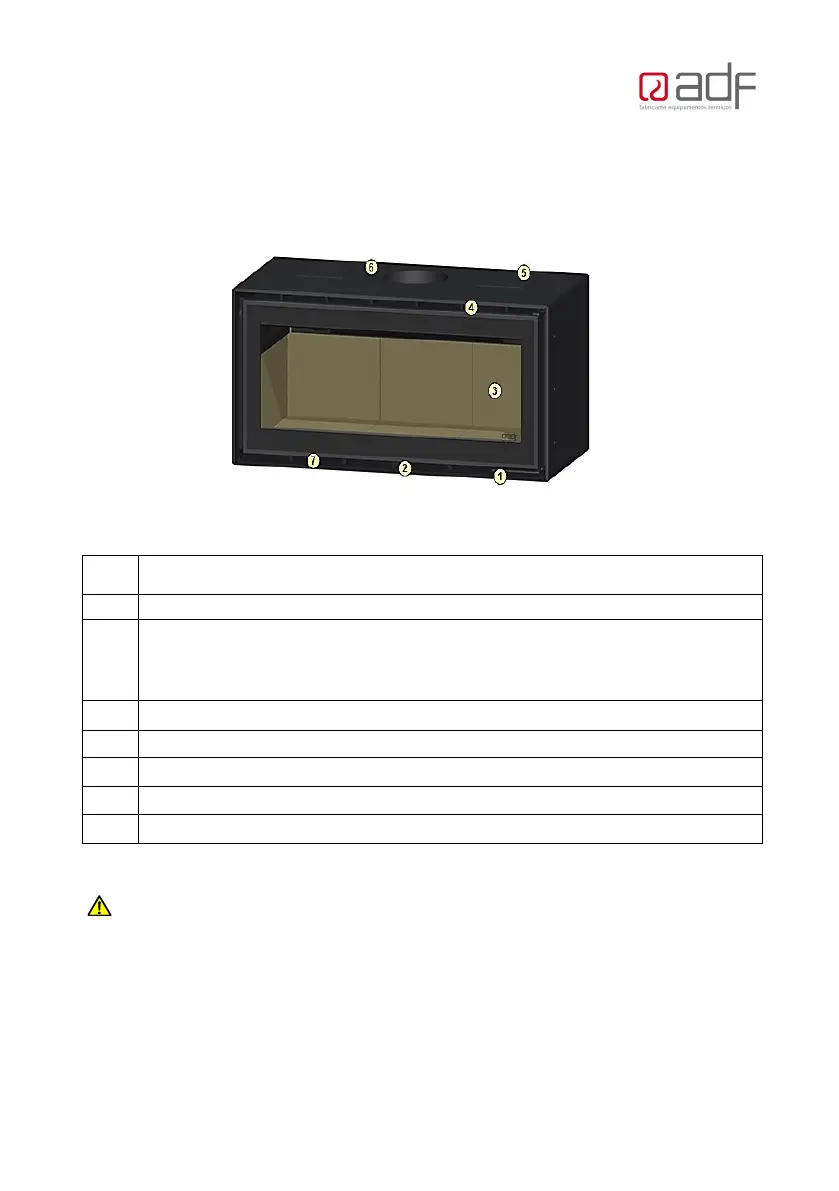

2-Appliance Layout
Pos. Designation
1 Door lever, Tool supplied for Door and Air Control
2
Combustion Air control (Use tool):
Open (+) slide to the right
Close (-) slide to the left
3 Vermiculite brick lining
4 Primary convection outlet
5 Secondary convection outlet (hot air distribution for ducting) Inbuilt only
6 Smoke Outlet – Flue collar 200mm (8” Crimped)
7 Convection inlet
Important:
o Please read this manual thoroughly before installing and starting your free-standing appliance.
o Installation must be carried out by a licenced and certified installer.
o Keep these instructions for future reference
