ADF NMV Series - Page 15

15
Cabinetry / Full Wall Build Install:
Allows combustible materials to be built up to the side of the enclosure.

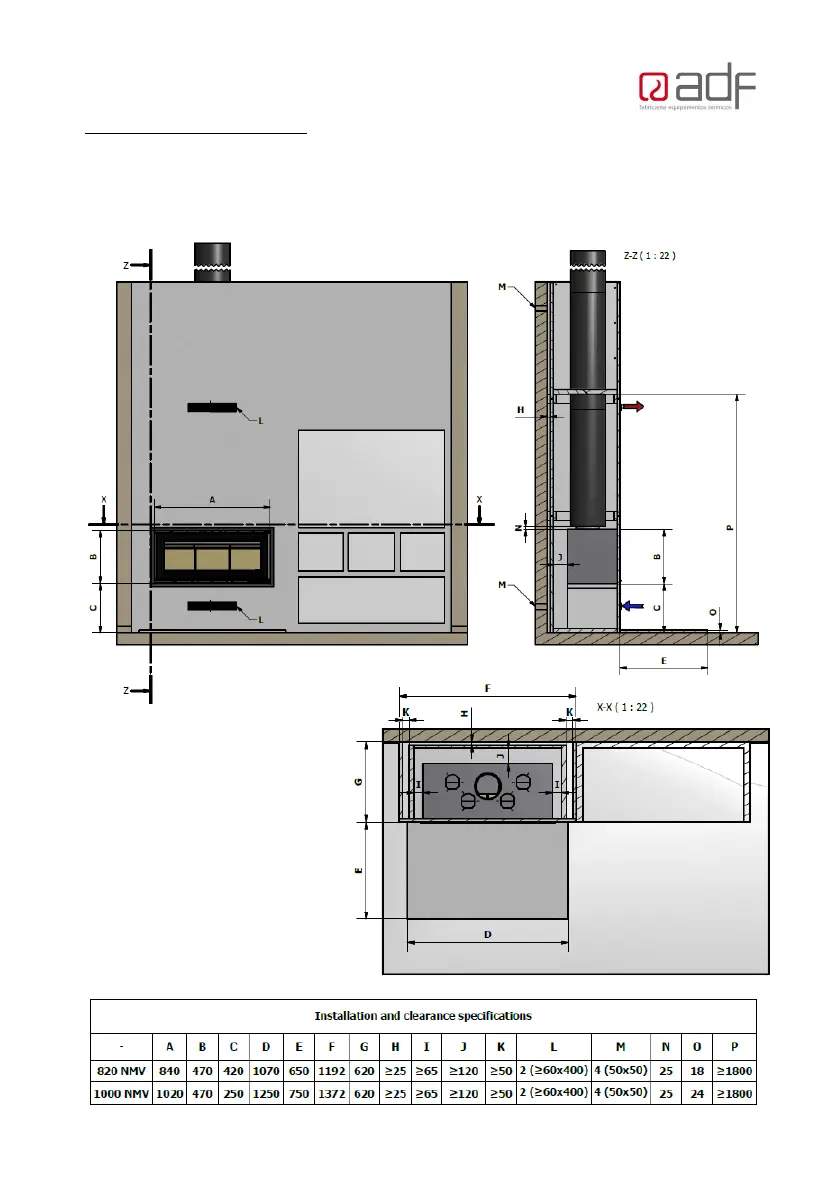

The build out is constructed with Skamotec 225 40mm sheets to Skamotec specifications, the
Installation and Clearance specifications are included in the Elevation drawings shown below:
