The construction of the base includes 5 pillars and a base to support the heater, leaving cut out for the
heater fan to drop into. The bench cut out is 560mm x 230mm from the rear of the base.
The assembly includes a 30mm air gap behind the rear sheet to combustible material. Use Skamotec
off cuts to space out from the wall.

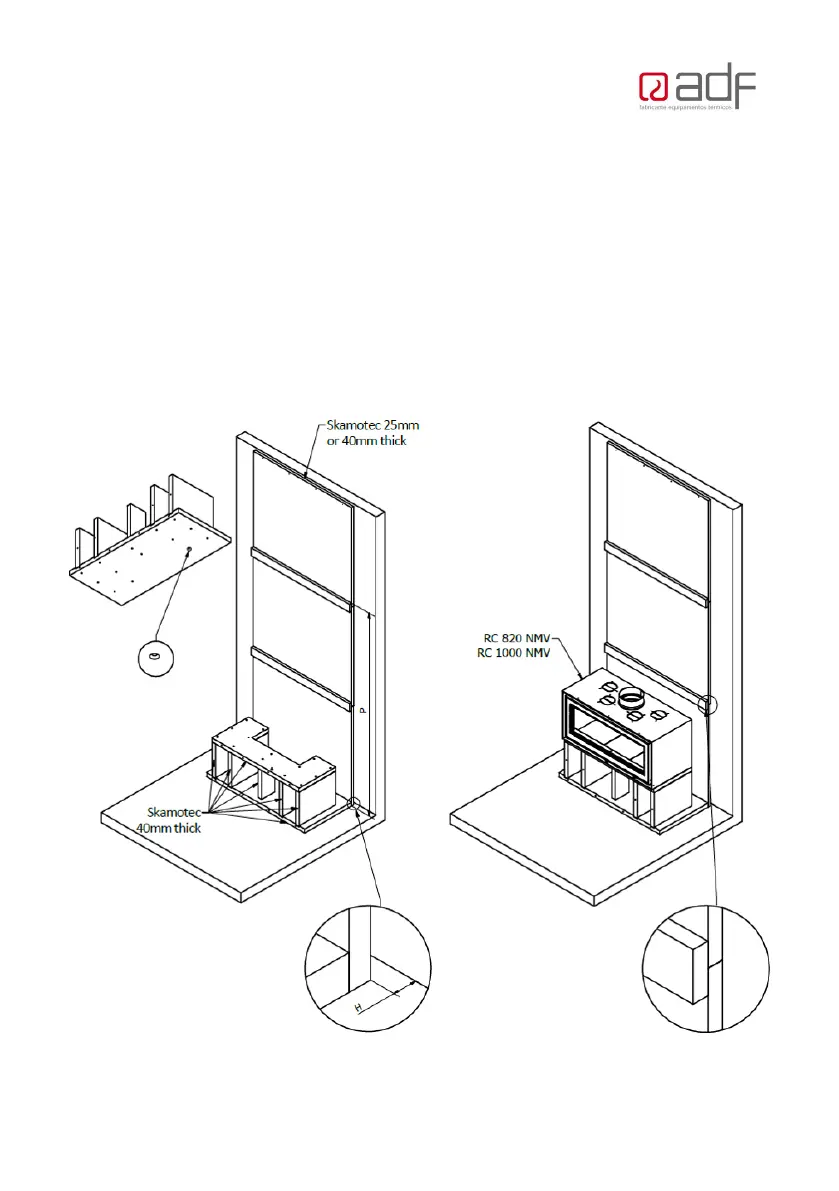

STEP 1. STEP 2
