ADF NMV Series - Page 22

22
Framing
Beading in metal or plastic cannot be used around the firebox opening due to heat. Metal expansion
could crack the Skamotec.
Ensure there is an expansion gap between the heater box and the Skamotec, of 3 or 4mm.

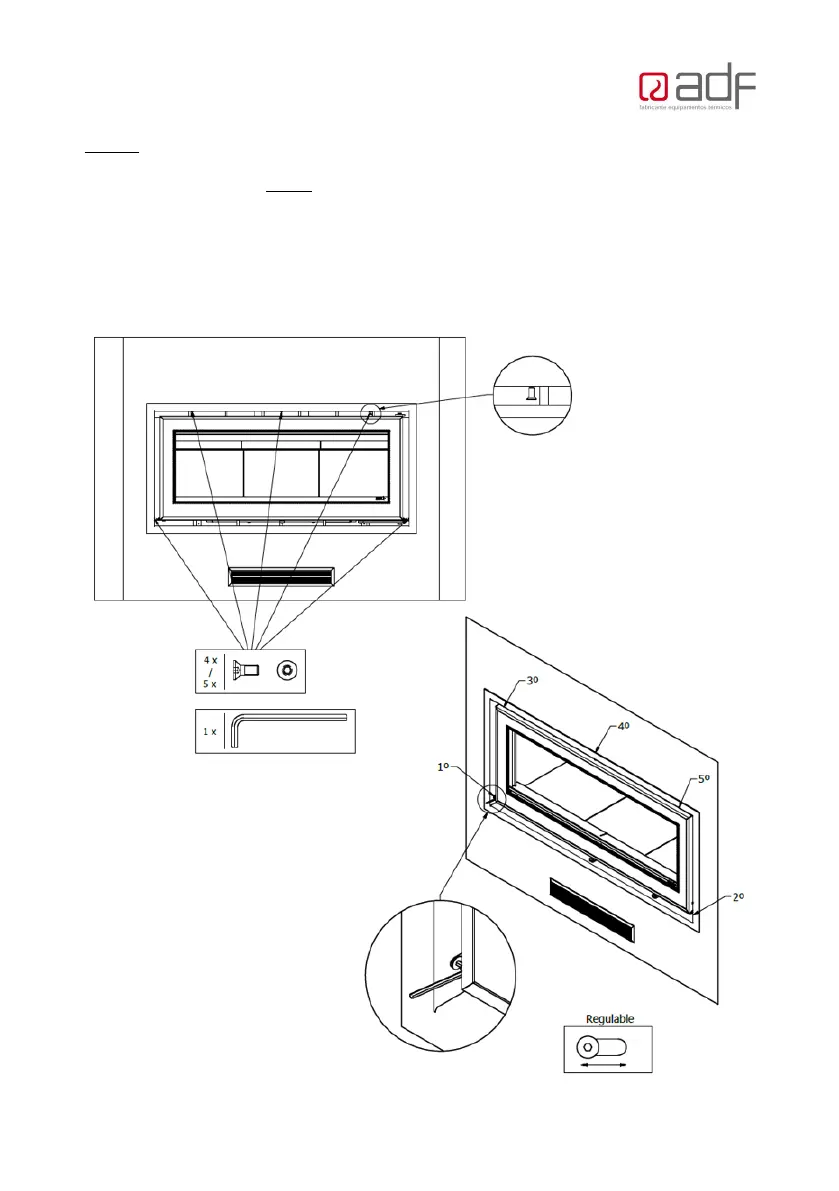

A Frame can be fitted as follows to cover the gap between the heater and the appliance:
