26
5- Fan (for fan models only).
• Must be installed in accordance with AS/NZS 3000.
• Must be installed to the manufacturers specifications.
• Power supply must be installed by a licensed electrician.
• If the power cable is damaged, for any reason, do not use. Have the cord replaced immediately.
The cable for the electrical supply with Plug is 1.5m.
The cable for the control switch is 65cm. It is made with a high temperature rated silicon outer case. If
additional cabling is required check with your electrician.
Mount the control switch into wall where required. Do not mount in wall above the heater or within
65mm from each side of the heater.

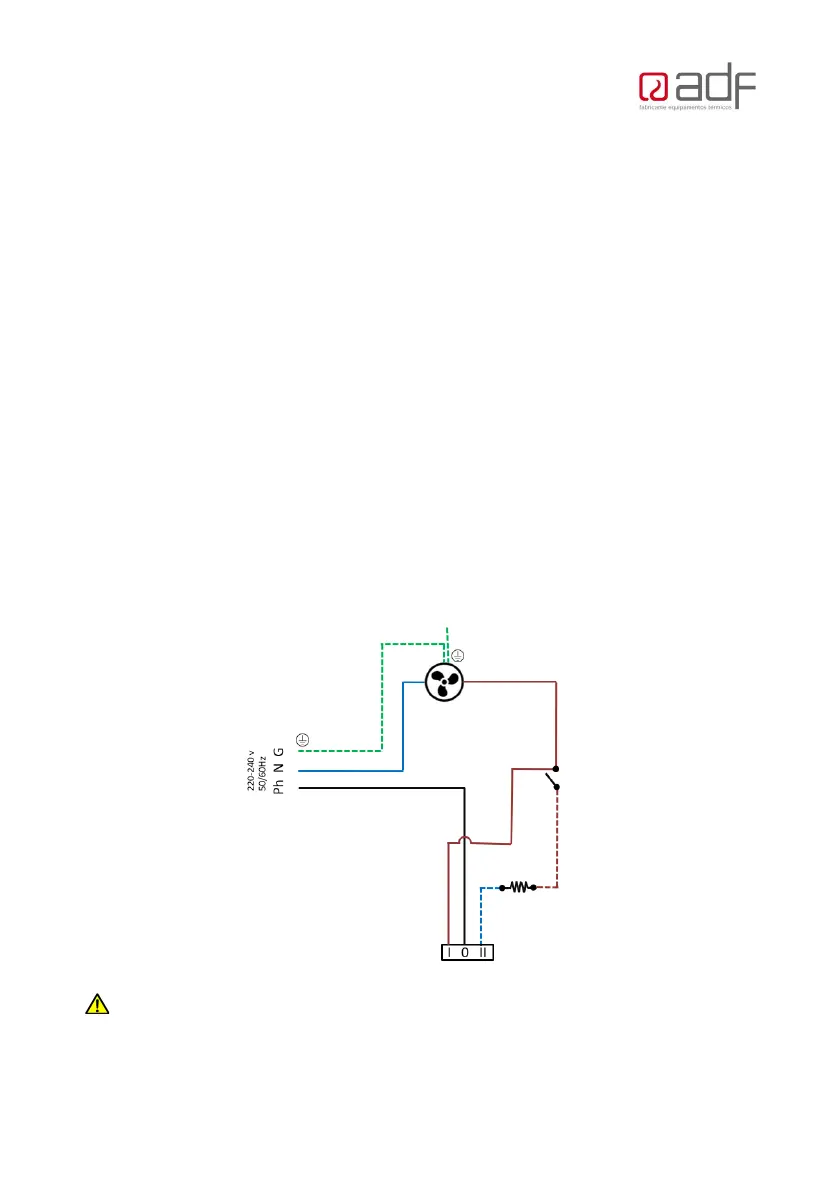

Electric circuit layout
Fan operation modes:
I- Low speed
Thermostat setting (>50C), (Automatic on/off)
0-OFF
II-Manual setting, High speed
Warnings
Danger of Electrocution: All electrical work must be carried out by a qualified electrician.
Note: All electrical components should be installed in an airy location away from hot parts
