PowerLab Teaching Series - Owner’s Guide
13

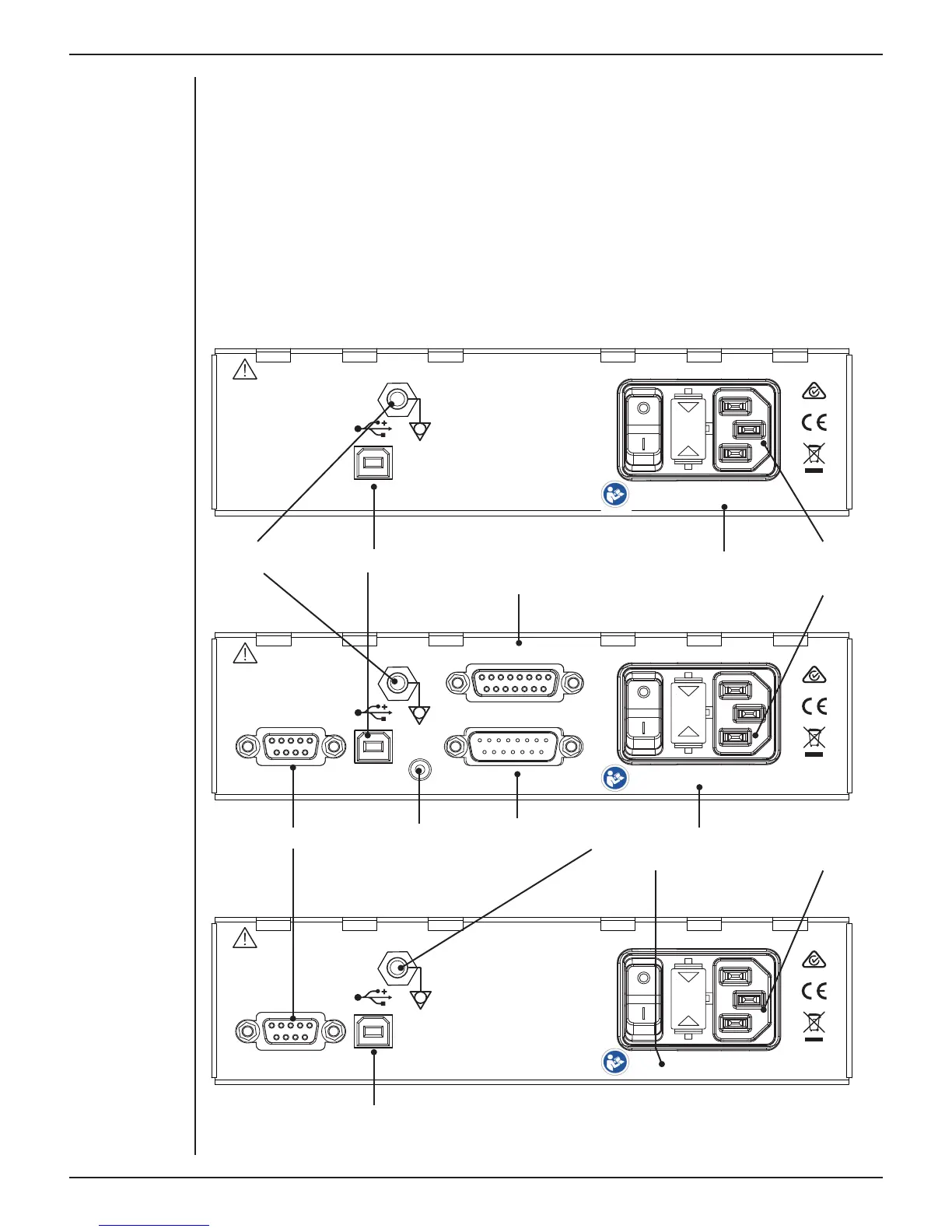

The Rear Panel
The rear panels of the PowerLab (Figure 1–5 to Figure 1–7) provide the sockets to
connect the PowerLab to the computer, other devices and the power outlet. This section
describes each of the rear panel features:
• Audio connector (PowerLab 26T only)
• I2C connector (not on PowerLab 15T)
• USB connector
• Digital input and output connectors (PowerLab 26T only)
• Ground connector
• Power switch and socket.
Figure 2–6
The rear panel
of the
PowerLab 15T
Figure 2–7
The rear panel
of the
PowerLab 26T
Figure 2–8
The rear panel
of the
PowerLab 2/26
and 4/26
Made in Australia by ADInstruments Pty Ltd.
WARNING:
Not intended for human connection unless
connections marked appropriately.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
Rated Voltage: 100-240 V AC 50/60 Hz 35 VA
Rated Voltage: 100-240 V AC 50/60 Hz 35 VA
Fuse Type: 250VAC; 1A; TIME LAG; 5x20mm
Replace only with fuse of same type and rating
Fuse Type: 250VAC; 1A; TIME LAG; 5x20mm
Replace only with fuse of same type and rating
Fuse Type: 250VAC; 1A; TIME LAG; 5x20mm
Replace only with fuse of same type and rating
Rated Voltage: 100-240 V AC 50/60 Hz 35 VA
Made in Australia by ADInstruments Pty Ltd.
WARNING:
Not intended for human connection unless
connections marked appropriately.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
2
I C Bus Digital Input
Digital Output
Audio
Output
Made in Australia by ADInstruments Pty Ltd.
WARNING:
Not intended for human connection unless
connections marked appropriately.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
2
I C Bus
Ground
I
2
C connector
USB connector
Audio connector
USB connector
Digital Output
connector
Digital Input
connector
Ground
Device rating
information
Device rating
information
Power switch
and socket
Power switch
and socket
