9
UC IR REMOTE
The UC IR (sold separately) infrared remote gives you control of various functions, as listed below.
The remote must be aimed towards the front of the xture, and maximum range is 30 feet.
CONTROLS
• STAND BY - Press this button to blackout the fixture.
• FULL ON - This button has no defined function for this fixture.
• FADE/GOBO - Press to activate gobo rotation.
• “DIMMER +” and “DIMMER -” - Use these buttons to adjust the output intensity.
• STROBE - This button has no defined function for this fixture.
• COLOR - This button has no defined function for this fixture.
• 1-9 - These buttons control gobo rotation direction and speed. Press buttons 1-4 to select clock-
wise rotation and speed, with the #1 button being the slowest and the #4 being the fastest. Press
buttons 6-9 to select counter-clockwise rotation and speed, with the #6 button being the slowest
and the #9 button being the fastest. Press the #5 button to stop rotation.
• SOUND ON & SOUND OFF - These buttons have no defined function for this fixture.
• SHOW 0 - This button has no defined function for this fixture.

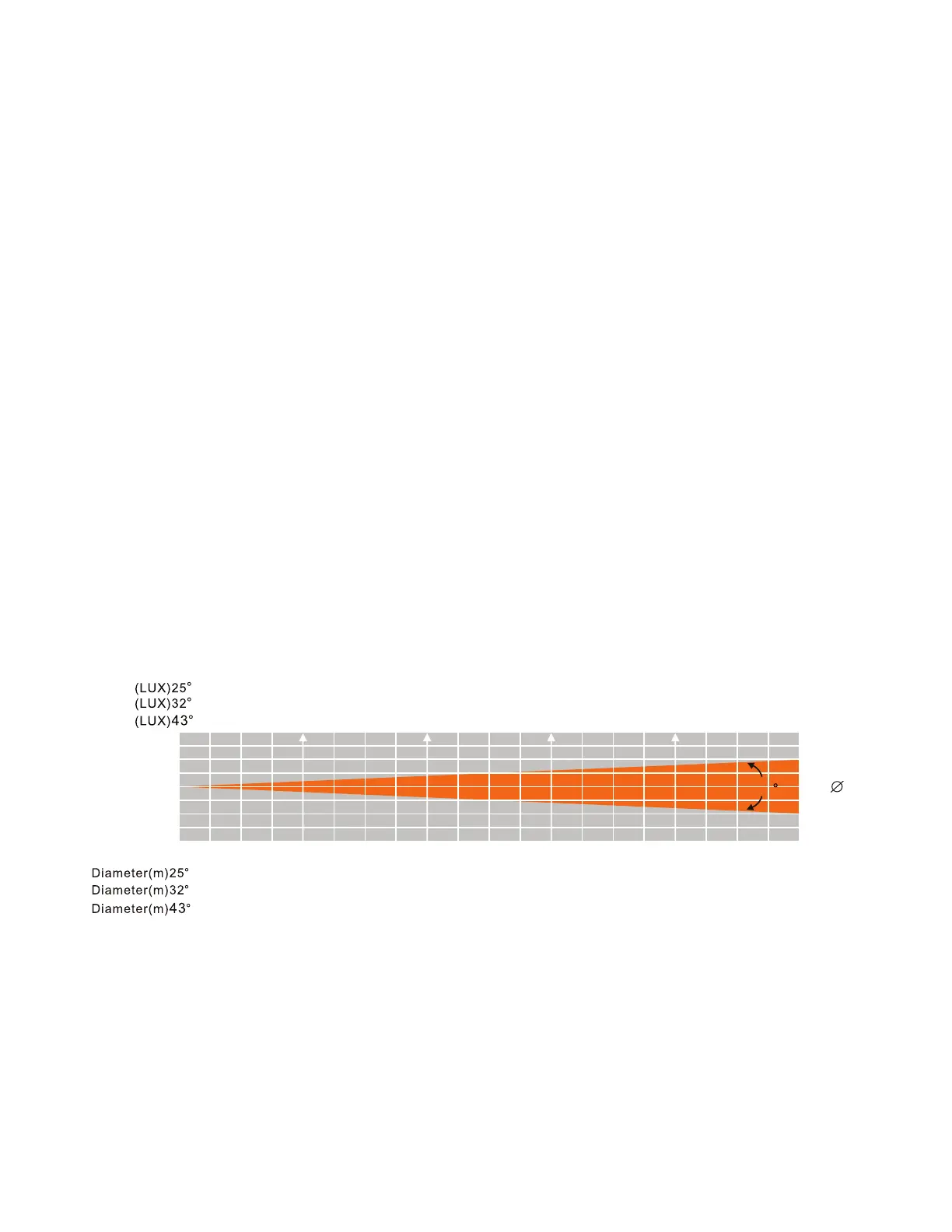

PHOTOMETRIC CHART
1.0 2.0 3.0 4.0
Distance(m)
0
0m( )
5.0
43
0.443 0.887 1.33 1.774 2.217
3800 765 381 221 150
5668 1240 550 318 200
8200 1740 763 430 278
0.573 1.147 1.72 2.294 2.867
0.788 1.576 2.363 3.151 3.939
